Capacitors / Electrolytic /
Series FP

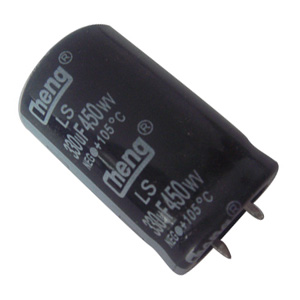

Lug / Snap-in Terminal Type, Low ESR
 |
FEATURES
1. Highly ripple, high reliability.
2. Low equivalent series resistance ESR.
3. Different case sizes available for each capacitance value.
4. Load life with ripple current: 5000hrs. |
SPECIFICATIONS
| Item |
Performance Characteristics |
| Operating Temperature Range |
-40 to +105°C |
-25 to +105°C |
| Rated Working Voltage Range |
10 to 100V |
200 to 450V |
| Nominal Capacitance Range |
100 to 33000μF |
| Capacitance Tolerance |
±20% (120Hz, +20°C) |
| Leakage Current |
I ≤ 3 CV (μA) after 5 minutes application of rated working voltage at +20°C |
Dissipation Factor
tan δ (120Hz, +20°C) |
| Working Voltage (V) |
10 |
16 |
25 |
35 |
50 |
63-100 |
200-400 |
450 |
| tan δ (max) |
0,60 |
0,45 |
0,30 |
0,25 |
0,20 |
0,15 |
0,15 |
0,20 |
For capacitance value >33000μF, add following calculated value: (rated capacitance)-33000μF / 10000μF x 0,1 |
| Low Temperature Characteristics |
Impedance ratio max. at 120Hz
| Working Voltage (V) |
10 |
16 |
25 |
35 |
50 |
63-100 |
200 |
250 |
400 |
450 |
| Z-25°C / Z+20°C |
6 |
6 |
6 |
6 |
4 |
3 |
8 |
8 |
8 |
8 |
| Z-40°C / Z+20°C |
15 |
15 |
15 |
15 |
15 |
15 |
- |
- |
- |
- |
|
| High Temperature Loading |
Testing time: 5000 hours Testing temp.: +105°C
Testing condition: Rated DC working voltage with the max. ripple current
Post test requirements at +20°C
Leakage current: ≤ Initial specified value
Cap. change within ±20% of initial measured value
tan δ : ≤ 200% of initial specified value |
| Shelf Life |
At 105°C no voltage applied after 1000 hours and then being stabilized at 20°C the capacitors shall meet the following limits
Leakage current: ≤ Initial specified value
Cap. change: within ±15% of initial measured value
tan δ: ≤ 150% of initial specified value |
| Others |
JIS C - 5101 (IES 60384) |
STANDARD RATINGS
| Voltage (Code) |
10V (1A) |
16V (1C) |
25V (1E) |
35V (1V) |
| Cap, (μF) |
Code |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
| 2200 |
228 |
|
|
|
|
|
|
|
|
|
22x25 |
90 |
1,1 |
| 3300 |
338 |
|
|
|
|
|
|
|
|
|
22x30
25x25 |
60
60 |
1,5
1,5 |
| 4700 |
478 |
|
|
|
|
|
|
22x30
25x25 |
57
57 |
1,6
1,6 |
22x40 |
48 |
1,9 |
| 6800 |
688 |
22x25 |
78 |
1,4 |
22x30 |
49 |
1,8 |
25x30 |
43 |
1,9 |
25x40 |
37 |
2,3 |
| 10000 |
109 |
22x30 |
56 |
1,8 |
25x30 |
36 |
2,2 |
25x40 |
32 |
2,5 |
30x40 |
28 |
2,9 |
| 15000 |
159 |
22x40 |
39 |
2,3 |
25x40 |
26 |
2,8 |
30x40 |
23 |
3,2 |
35x40 |
20 |
3,8 |
| 18000 |
189 |
|
|
|
|
|
|
|
|
|
35x45 |
18 |
4,3 |
| 22000 |
229 |
30x35 |
28 |
3,0 |
30x40 |
18 |
3,5 |
|
|
|
|
|
|
| 33000 |
339 |
30x45 |
20 |
3,9 |
|
|
|
|
|
|
|
|
|
Maximum Allowable Ripple Current (A rms) at 105°C 120Hz
Maximum Impedance (mΩ) at 20°C 20kHz |
| Voltage (Code) |
50V (1H) |
63V (1J) |
80V (1K) |
100V (2A) |
| Cap, (μF) |
Code |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
| 560 |
567 |
|
|
|
|
|
|
|
|
|
25x25 |
190 |
1,0 |
| 680 |
687 |
|
|
|
|
|
|
|
|
|
22x35 |
156 |
1,2 |
| 1000 |
108 |
|
|
|
22x25 |
159 |
1,0 |
25x25 |
133 |
1,3 |
25x35
30x30 |
106
106 |
1,5
1,4 |
| 1200 |
128 |
|
|
|
|
|
|
30x25 |
110 |
1,5 |
|
|
|
| 1500 |
158 |
|
|
|
22x35 |
106 |
1,4 |
25x35 |
89 |
1,8 |
30x40 |
70 |
1,9 |
| 2200 |
228 |
22x35 |
90 |
1,4 |
25x35
30x30 |
72
85 |
1,7
1,8 |
30x35 |
60 |
2,0 |
30x50 |
60 |
2,3 |
| 3300 |
338 |
25x35 |
60 |
1,8 |
30x40 |
56 |
2,3 |
35x35 |
48 |
2,8 |
35x50 |
40 |
3,0 |
| 4700 |
478 |
30x35 |
45 |
2,2 |
35x35 |
45 |
2,7 |
35x45 |
34 |
3,4 |
|
|
|
| 6800 |
688 |
30x50 |
35 |
2,9 |
35x50 |
31 |
3,6 |
|
|
|
|
|
|
| 10000 |
109 |
35x45 |
26 |
3,6 |
|
|
|
|
|
|
|
|
|
Maximum Allowable Ripple Current (A rms) at 105°C 120Hz
Maximum Impedance (mΩ) at 20°C 20kHz |
| Voltage (Code) |
200V (2D) |
250V (2E) |
400V (2G) |
450V (2W) |
| Cap, (μF) |
Code |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
Case Size
ØDxL (mm) |
Impedance |
Ripple
Current |
| 100 |
127 |
|
|
|
|
|
|
25x30 |
1090 |
0,7 |
22x45
30x30 |
1600
1600 |
0,75
0,76 |
| 150 |
157 |
|
|
|
|
|
|
25x40
30x30 |
730
730 |
0,95
0,94 |
25x45
30x35 |
1070
1070 |
1,0
0,99 |
| 220 |
227 |
22x30 |
700 |
0,96 |
25x30 |
700 |
1,0 |
30x40
35x30 |
500
500 |
1,3
1,3 |
30x45
35x35 |
730
730 |
1,3
1,3 |
| 330 |
337 |
22x40 |
470 |
1,3 |
25x40
30x30 |
470
470 |
1,4
1,4 |
30x50
35x40 |
330
330 |
1,7
1,7 |
35x50 |
490 |
1,8 |
| 390 |
397 |
|
|
|
|
|
|
35x45 |
280 |
1,9 |
35x50 |
410 |
2,0 |
| 470 |
477 |
25x40
30x30 |
330
330 |
1,7
1,7 |
30x35 |
330 |
1,8 |
35x50 |
240 |
2,2 |
|
|
|
| 680 |
687 |
30x40 |
230 |
2,2 |
30x45 |
230 |
2,3 |
|
|
|
|
|
|
| 1000 |
108 |
35x45 |
160 |
3,1 |
35x45 |
160 |
3,1 |
|
|
|
|
|
|
| 1500 |
158 |
35x50 |
110 |
3,9 |
|
|
|
|
|
|
|
|
|
Maximum Allowable Ripple Current (A rms) at 105°C 120Hz
Maximum Impedance (mΩ) at 20°C 20kHz |
|
|
