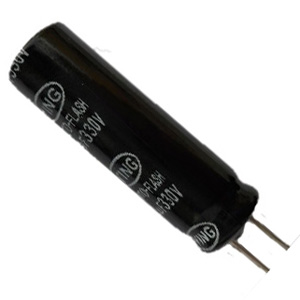

Capacitors / Electrolytic /
Series PE
Recharging And Discharging In Flash
 |
FEATURES
PF series for photo flash applications require not only superior volumetric efficiency but also low dissipation factor and low leakage current.
These capacitors effectively convert electrostatic energy into light. |
SPECIFICATIONS
| Item |
Performance Characteristics |
| Operating Temperature Range |
-25 to +55°C |
| Rated Working Voltage Range |
330 & 360V |
| Nominal Capacitance Range |
150 to 1500μF |
| Capacitance Tolerance |
-10% to +20% (120Hz, +20°C) |
| Leakage Current |
I = 1XC(μA) max. (After 5 minutes) |
Dissipation Factor
tan δ (120Hz, +20°C) |
less than 0,06 |
| Charge and Discharge Characteristics |
Charge & discharge cycles: For 5000-10000 times at room temperature (5-35°C)
Charge & discharge cycles: 30sec
Leakage current: ≤ 150% of Initial specified value
Cap. Change: within ±10% of Initial value
tan μ: ≤ 150% of Initial specified value |
| Shelf Life |
Storage without voltage applied at 55°C for 1000 hours and measured at 25°C
Leakage current: ≤ 300% of Initial specified value
Cap. Change: within ±10% of Initial measured value
tan μ: ≤ 150% of Initial specified value |
STANDARD RATINGS
| Voltage (Code) |
330V |
360V |
| Cap, (μF) |
Code |
| 150 |
157 |
14,5x35
16x28
18x23 |
14,5x42
16x35
18x28
20x24 |
| 180 |
187 |
14,5x40
16x32
18x26 |
14,5x48
16x40
18x32
20x28 |
| 200 |
207 |
14,5x42
16x35
18x28
20x24 |
14,5x52
16x45
18x35
20x30
22x26 |
| 250 |
257 |
14,5x52
16x42
18x35
20x29
22x26 |
16x52
18x42
20x35
22x30 |
| 300 |
307 |
16x48
18x40
20x33
22x30 |
18x48
20x40
22x35
25x30 |
| 350 |
357 |
16x56
18x45
20x38
22x35 |
20x45
22x40
25x32 |
| 400 |
407 |
18x48
20x42
22x37
25x30 |
20x52
22x42
25x35 |
| 450 |
457 |
18x56
20x45
22x42
25x32 |
22x48
25x40 |
| 500 |
507 |
20x48
22x44
25x34 |
22x56
25x44
30x34 |
| 600 |
607 |
20x56
22x51
25x40
30x33 |
25x50
30x38 |
| 700 |
707 |
22x56
25x44
30x37 |
25x58
30x44 |
| 800 |
807 |
25x50
30x40 |
30x50
35x38 |
| 900 |
907 |
25x54
30x43 |
30x54
35x43 |
| 1000 |
108 |
25x58
30x47
35x37 |
30x58
35x48 |
| 1200 |
120 |
30x54
35x43 |
30x70
35x55 |
| 1300 |
138 |
30x58
35x45 |
35x59 |
| 1500 |
158 |
30x64
35x51 |
35x71 |
Case Size ØDxL (mm)
|
|
