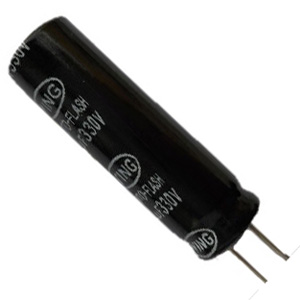

Capacitors / Electrolytic /

Series PF
Photo Flash Use

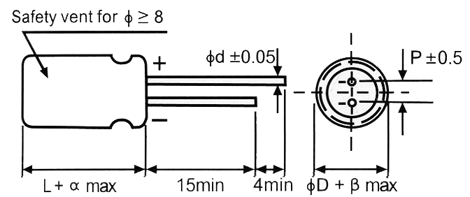

FEATURES PF series for photo flash applications require not only superior volumetric efficiency but also low dissipation factor and low leakage current. These capacitors effectively convert electrostatic energy into light. CASE SIZE TABLE ØD 10 12,5 13 14,5 16 18 20 P 5,0 7,5 Ød 0,6 0,8 α  (L<20) 1,5   (L≥20) 2,0 β (D<20) 0,5   (D≥20) 1,0   SPECIFICATIONS Item Performance Characteristics Operating Temperature Range -25 to +55°C Rated Working Voltage Range 330V Nominal Capacitance Range 36 to 300μF Capacitance Tolerance -10% to +20% (120Hz, +20°C) Leakage Current I = 1XC(μA) max. (After 5 minutes) Dissipation Factor tan δ (120Hz, +20°C) less than 0,06 Charge and Discharge Characteristics Charge & discharge cycles: For 5000 times at room temperature (5-35°C) Charge & discharge cycles: 30sec Leakage current: ≤ 150% of Initial specified value Cap. Change: within ±10% of Initial value tan μ: ≤ 150% of Initial specified value Shelf Life Storage without voltage applied at 55°C for 1000 hours and measured at 25°C Leakage current: ≤ 150% of Initial specified value Cap. Change: within ±10% of Initial measured value tan μ: ≤ 150% of Initial specified value   STANDARD RATINGS Voltage (Code) 330V Cap, (μF) Code 36 366 10x27 47 476 10x30 12,5x20 60 606 10x34 80 806 12,5x23 12,5x27 100 107 12,5x34 13x34 14,5x26 120 127 12,5x37 13x34 14,5x30 16x27 140 147 12,5x42 13x39 14,5x33 16x29 18x25 160 167 12,5x47 13x43 14,5x36 16x32 180 187 18x27 14,5x40 16x35 18x29 200 207 14,5x43 16x38 18x31 220 227 14,5x47 16x40 18x33 240 247 16x43 18x36 250 257 18x37 20x31 300 307 18x42 20x35 Case Size ØDxL (mm)
