1713SM-12xx series

double-row open straight pin header on the PCB for surface (SMD) mounting, pitch 0.80 x 1.20 mm

1713SM-12xx series, double-row open straight pin header on the PCB for surface (SMD) mounting, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

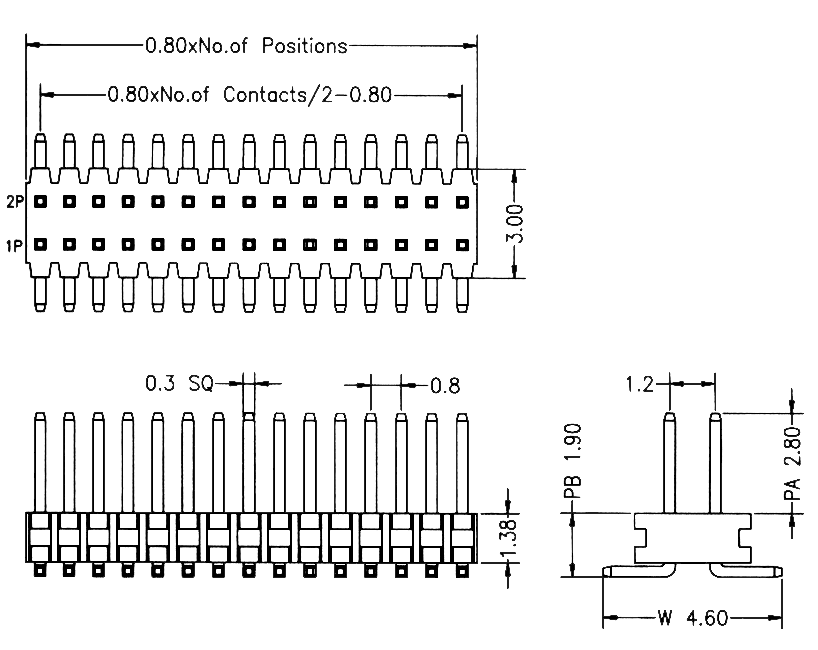

Drawing

17131	SM	-	XXX	G
1	2		3	4

1) series
     17131
2) type
     SM: for surface mounting (SMD)
     S: straight
     R: right angle
     DI: double insulator
     SMDI: for surface mounting (SMD) with double insulator
3) number of contacts 2...100
     XXX
4) gold plated
     G

Double-row open straight pin header on the PCB for surface (SMD) mounting of this series are made in the form of a comb 2x50 Drawing. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

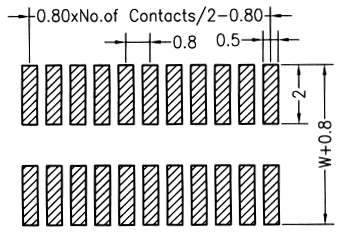

PCB layout

ID	Part.No.	number of contacts
152719	1713SM-1201	2
152720	1713SM-1202	4
152721	1713SM-1203	6
152722	1713SM-1204	8
152723	1713SM-1205	10
152724	1713SM-1206	12
152725	1713SM-1207	14
152726	1713SM-1208	16
152727	1713SM-1209	18
152728	1713SM-1210	20
152729	1713SM-1211	22
152730	1713SM-1212	24
152731	1713SM-1213	26
152732	1713SM-1214	28
152733	1713SM-1215	30
152734	1713SM-1216	32
152735	1713SM-1217	34
152736	1713SM-1218	36
152737	1713SM-1219	38
152738	1713SM-1220	40
152739	1713SM-1221	42
152740	1713SM-1222	44
152741	1713SM-1223	46
152742	1713SM-1224	48
152743	1713SM-1225	50

ID	Part.No.	number of contacts
152744	1713SM-1226	52
152745	1713SM-1227	54
152746	1713SM-1228	56
152747	1713SM-1229	58
152748	1713SM-1230	60
152749	1713SM-1231	62
152750	1713SM-1232	64
152751	1713SM-1233	66
152752	1713SM-1234	68
152753	1713SM-1235	70
152754	1713SM-1236	72
152755	1713SM-1237	74
152756	1713SM-1238	76
152757	1713SM-1239	78
152758	1713SM-1240	80
152759	1713SM-1241	82
152760	1713SM-1242	84
152761	1713SM-1243	86
152762	1713SM-1244	88
152763	1713SM-1245	90
152764	1713SM-1246	92
152765	1713SM-1247	94
152766	1713SM-1248	96
152767	1713SM-1249	98
152768	1713SM-1250	100

1713SM-12xx series, double-row open straight pin header on the PCB for surface (SMD) mounting, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

PCB layout
