1713SMDI-22xx series

double-row open straight pin header with double insulator on the PCB for surface (SMD) mounting, pitch 0.80 x 1.20 mm

1713SMDI-22xx series, double-row open straight pin header with double insulator on the PCB for surface (SMD) mounting, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

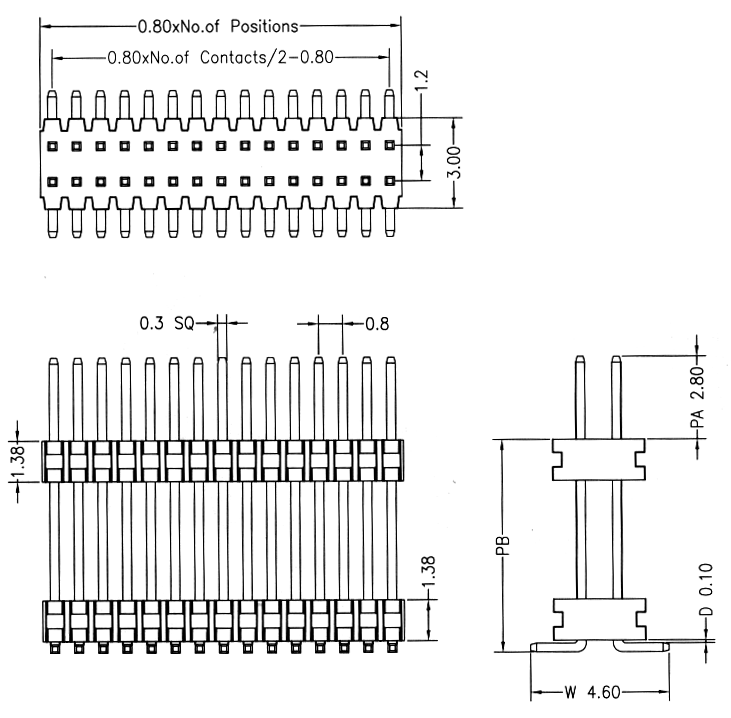

Drawing

17132	SMDI	-	XXX	G
1	2		3	4

1) series
     17132
2) type
     SM: for surface mounting (SMD)
     S: straight
     R: right angle
     DI: double insulator
     SMDI: for surface mounting (SMD) with double insulator
3) number of contacts 2...100
     XXX
4) gold plated
     G

Double-row open straight pin header with double insulator on the PCB for surface (SMD) mounting of this series are made in the form of a comb 2x50 Drawing. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
152769	1713SMDI-2201	2
152770	1713SMDI-2202	4
152771	1713SMDI-2203	6
152772	1713SMDI-2204	8
152773	1713SMDI-2205	10
152774	1713SMDI-2206	12
152775	1713SMDI-2207	14
152776	1713SMDI-2208	16
152777	1713SMDI-2209	18
152778	1713SMDI-2210	20
152779	1713SMDI-2211	22
152780	1713SMDI-2212	24
152781	1713SMDI-2213	26
152782	1713SMDI-2214	28
152783	1713SMDI-2215	30
152784	1713SMDI-2216	32
152785	1713SMDI-2217	34
152786	1713SMDI-2218	36
152787	1713SMDI-2219	38
152788	1713SMDI-2220	40
152789	1713SMDI-2221	42
152790	1713SMDI-2222	44
152791	1713SMDI-2223	46
152792	1713SMDI-2224	48
152793	1713SMDI-2225	50

ID	Part.No.	number of contacts
152794	1713SMDI-2226	52
152795	1713SMDI-2227	54
152796	1713SMDI-2228	56
152797	1713SMDI-2229	58
152798	1713SMDI-2230	60
152799	1713SMDI-2231	62
152800	1713SMDI-2232	64
152801	1713SMDI-2233	66
152802	1713SMDI-2234	68
152803	1713SMDI-2235	70
152804	1713SMDI-2236	72
152805	1713SMDI-2237	74
152806	1713SMDI-2238	76
152807	1713SMDI-2239	78
152808	1713SMDI-2240	80
152809	1713SMDI-2241	82
152810	1713SMDI-2242	84
152811	1713SMDI-2243	86
152812	1713SMDI-2244	88
152813	1713SMDI-2245	90
152814	1713SMDI-2246	92
152815	1713SMDI-2247	94
152816	1713SMDI-2248	96
152817	1713SMDI-2249	98
152818	1713SMDI-2250	100

PCB layout
