2731SM-02xx series

double-row straight sockets on PCB for surface mounting (SMD), pitch 0.80 x 1.20 mm

2731SM-02xx series, double-row straight sockets on PCB for surface mounting (SMD), pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

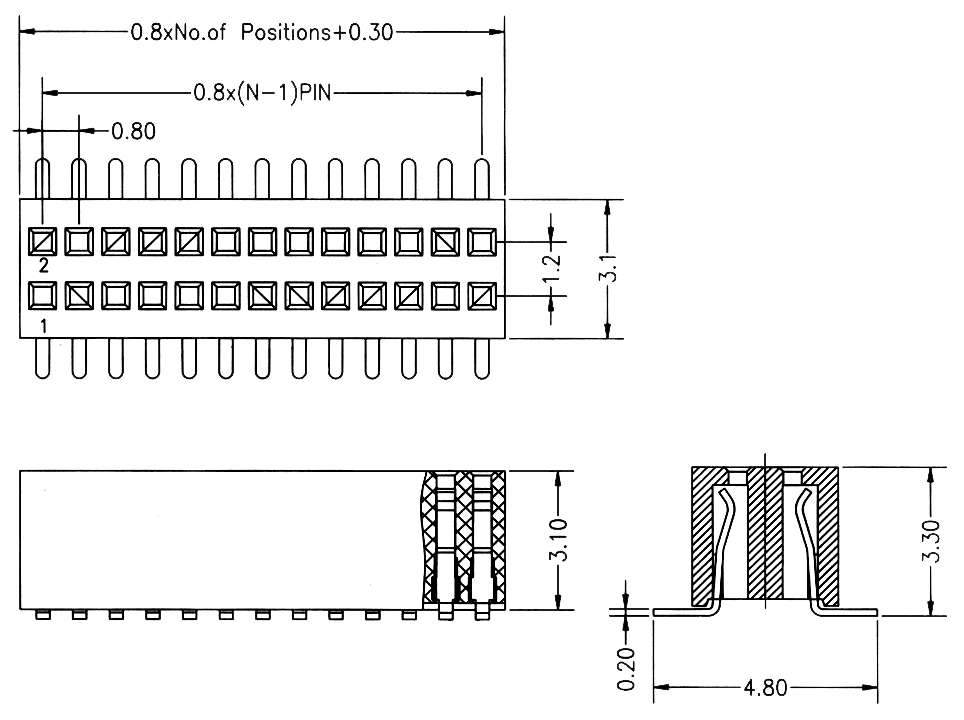

Drawing

27311	SM	-	XXX	G
1	2		3	4

1) series
     27311
2) type
     SM: for surface mounting (SMD)
3) number of contacts 2...100
     XXX
4) gold plated
     G

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
152919	2731SM-0201	2
152920	2731SM-0202	4
152921	2731SM-0203	6
152922	2731SM-0204	8
152923	2731SM-0205	10
152924	2731SM-0206	12
152925	2731SM-0207	14
152926	2731SM-0208	16
152927	2731SM-0209	18
152928	2731SM-0210	20
152929	2731SM-0211	22
152930	2731SM-0212	24
152931	2731SM-0213	26
152932	2731SM-0214	28
152933	2731SM-0215	30
152934	2731SM-0216	32
152935	2731SM-0217	34
152936	2731SM-0218	36
152937	2731SM-0219	38
152938	2731SM-0220	40
152939	2731SM-0221	42
152940	2731SM-0222	44
152941	2731SM-0223	46
152942	2731SM-0224	48
152943	2731SM-0225	50

ID	Part.No.	number of contacts
152944	2731SM-0226	52
152945	2731SM-0227	54
152946	2731SM-0228	56
152947	2731SM-0229	58
152948	2731SM-0230	60
152949	2731SM-0231	62
152950	2731SM-0232	64
152951	2731SM-0233	66
152952	2731SM-0234	68
152953	2731SM-0235	70
152954	2731SM-0236	72
152955	2731SM-0237	74
152956	2731SM-0238	76
152957	2731SM-0239	78
152958	2731SM-0240	80
152959	2731SM-0241	82
152960	2731SM-0242	84
152961	2731SM-0243	86
152962	2731SM-0244	88
152963	2731SM-0245	90
152964	2731SM-0246	92
152965	2731SM-0247	94
152966	2731SM-0248	96
152967	2731SM-0249	98
152968	2731SM-0250	100

2731SM-02xx series, double-row straight sockets on PCB for surface mounting (SMD), pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

PCB layout
