1713SM-12xxCP series

double-row open straight pin header on the PCB with mounting cover for automatic surface (SMD) mounting, pitch 0.80 x 1.20 mm

1713SM-12xxCP series, double-row open straight pin header on the PCB with mounting cover for automatic surface (SMD) mounting, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

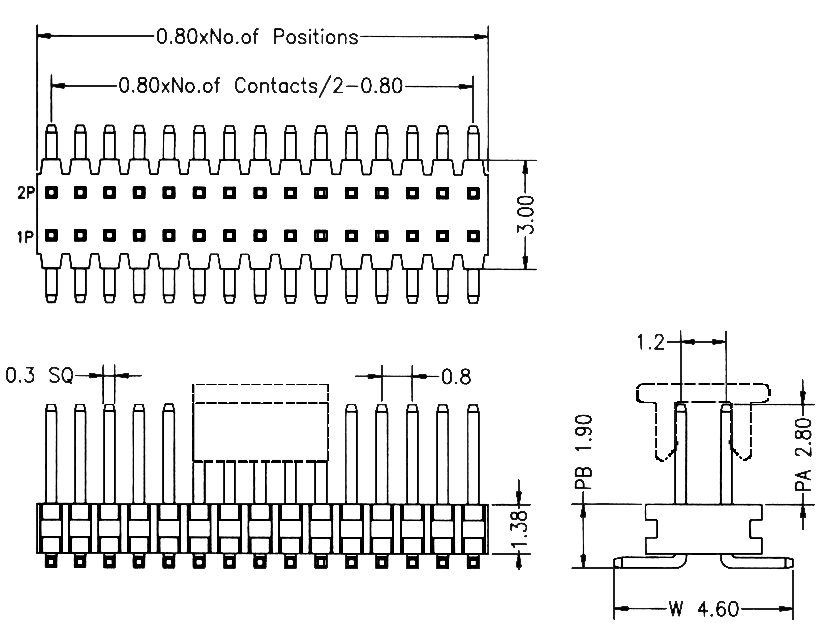

Drawing

17131	SM	-	XXX	G	-	CP
1	2		3	4		5

1) series
     17131
2) type
     SM: for surface mounting (SMD)
     S: straight
     R: right angle
     DI: double insulator
     SMDI: for surface mounting (SMD) with double insulator
3) number of contacts 2...100
     XXX
4) gold plated
     G
5) features
     PG: guides to PCB
     CP: cover
     CG: guides to PCB + cover

Double-row open straight pin header on the PCB with mounting cover for automatic surface (SMD) mounting of this series are made in the form of a comb 2x50 Drawing. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
152819	1713SM-1201CP	2
152820	1713SM-1202CP	4
152821	1713SM-1203CP	6
152822	1713SM-1204CP	8
152823	1713SM-1205CP	10
152824	1713SM-1206CP	12
152825	1713SM-1207CP	14
152826	1713SM-1208CP	16
152827	1713SM-1209CP	18
152828	1713SM-1210CP	20
152829	1713SM-1211CP	22
152830	1713SM-1212CP	24
152831	1713SM-1213CP	26
152832	1713SM-1214CP	28
152833	1713SM-1215CP	30
152834	1713SM-1216CP	32
152835	1713SM-1217CP	34
152836	1713SM-1218CP	36
152837	1713SM-1219CP	38
152838	1713SM-1220CP	40
152839	1713SM-1221CP	42
152840	1713SM-1222CP	44
152841	1713SM-1223CP	46
152842	1713SM-1224CP	48
152843	1713SM-1225CP	50

ID	Part.No.	number of contacts
152844	1713SM-1226CP	52
152845	1713SM-1227CP	54
152846	1713SM-1228CP	56
152847	1713SM-1229CP	58
152848	1713SM-1230CP	60
152849	1713SM-1231CP	62
152850	1713SM-1232CP	64
152851	1713SM-1233CP	66
152852	1713SM-1234CP	68
152853	1713SM-1235CP	70
152854	1713SM-1236CP	72
152855	1713SM-1237CP	74
152856	1713SM-1238CP	76
152857	1713SM-1239CP	78
152858	1713SM-1240CP	80
152859	1713SM-1241CP	82
152860	1713SM-1242CP	84
152861	1713SM-1243CP	86
152862	1713SM-1244CP	88
152863	1713SM-1245CP	90
152864	1713SM-1246CP	92
152865	1713SM-1247CP	94
152866	1713SM-1248CP	96
152867	1713SM-1249CP	98
152868	1713SM-1250CP	100

PCB layout
