1713SMDI-22xxCP series

double-row open straight pin header with double insulator on the PCB with mounting cover for automatic surface (SMD) mounting, pitch 0.80 x 1.20 mm

1713SMDI-22xxCP series, double-row open straight pin header with double insulator on the PCB with mounting cover for automatic surface (SMD) mounting, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

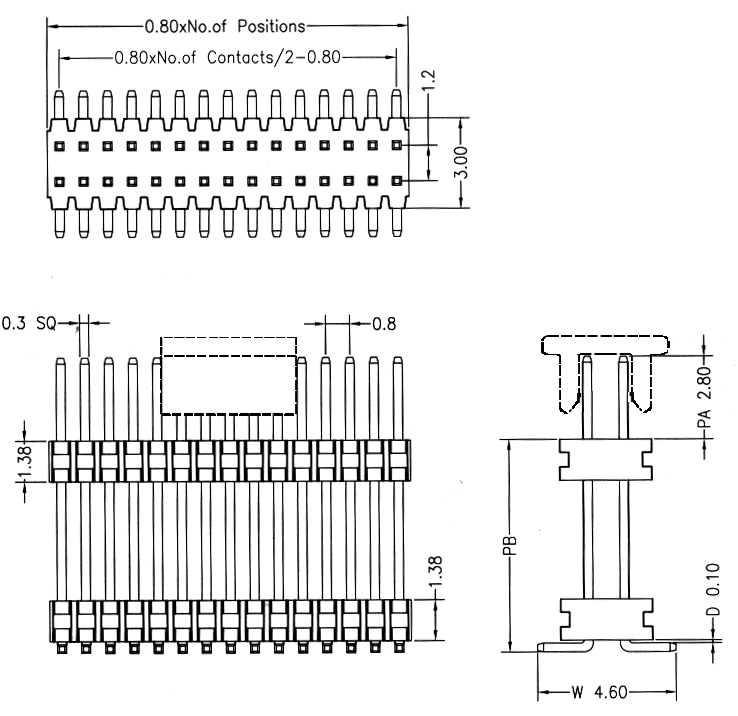

Drawing

17132	SMDI	-	XXX	G	-	CP
1	2		3	4		5

1) series
     17132
2) type
     SM: for surface mounting (SMD)
     S: straight
     R: right angle
     DI: double insulator
     SMDI: for surface mounting (SMD) with double insulator
3) number of contacts 2...100
     XXX
4) gold plated
     G
5) features
     PG: guides to PCB
     CP: cover
     CG: guides to PCB + cover

Double-row open straight pin header with double insulator on the PCB with mounting cover for automatic surface (SMD) mounting of this series are made in the form of a comb 1x50 Drawing. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 1, 2, 3... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
152869	1713SMDI-2201CP	2
152870	1713SMDI-2202CP	4
152871	1713SMDI-2203CP	6
152872	1713SMDI-2204CP	8
152873	1713SMDI-2205CP	10
152874	1713SMDI-2206CP	12
152875	1713SMDI-2207CP	14
152876	1713SMDI-2208CP	16
152877	1713SMDI-2209CP	18
152878	1713SMDI-2210CP	20
152879	1713SMDI-2211CP	22
152880	1713SMDI-2212CP	24
152881	1713SMDI-2213CP	26
152882	1713SMDI-2214CP	28
152883	1713SMDI-2215CP	30
152884	1713SMDI-2216CP	32
152885	1713SMDI-2217CP	34
152886	1713SMDI-2218CP	36
152887	1713SMDI-2219CP	38
152888	1713SMDI-2220CP	40
152889	1713SMDI-2221CP	42
152890	1713SMDI-2222CP	44
152891	1713SMDI-2223CP	46
152892	1713SMDI-2224CP	48
152893	1713SMDI-2225CP	50

ID	Part.No.	number of contacts
152894	1713SMDI-2226CP	52
152895	1713SMDI-2227CP	54
152896	1713SMDI-2228CP	56
152897	1713SMDI-2229CP	58
152898	1713SMDI-2230CP	60
152899	1713SMDI-2231CP	62
152900	1713SMDI-2232CP	64
152901	1713SMDI-2233CP	66
152902	1713SMDI-2234CP	68
152903	1713SMDI-2235CP	70
152904	1713SMDI-2236CP	72
152905	1713SMDI-2237CP	74
152906	1713SMDI-2238CP	76
152907	1713SMDI-2239CP	78
152908	1713SMDI-2240CP	80
152909	1713SMDI-2241CP	82
152910	1713SMDI-2242CP	84
152911	1713SMDI-2243CP	86
152912	1713SMDI-2244CP	88
152913	1713SMDI-2245CP	90
152914	1713SMDI-2246CP	92
152915	1713SMDI-2247CP	94
152916	1713SMDI-2248CP	96
152917	1713SMDI-2249CP	98
152918	1713SMDI-2250CP	100

PCB layout
