1713SM-12xxCG series

double-row open straight pin header on the PCB with mounting cover for automatic surface (SMD) mounting with guides, pitch 0.80 x 1.20 mm

1713SM-12xxCG series, double-row open straight pin header on the PCB with mounting cover for automatic surface (SMD) mounting with guides, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

Drawing

17131	SM	-	XXX	G	-	CG
1	2		3	4		5

1) series
     17131
2) type
     SM: for surface mounting (SMD)
     S: straight
     R: right angle
     DI: double insulator
     SMDI: for surface mounting (SMD) with double insulator
3) number of contacts 2...100
     XXX
4) gold plated
     G
5) features
     PG: guides to PCB
     CP: cover
     CG: guides to PCB + cover

Double-row open straight pin header on the PCB with mounting cover for automatic surface (SMD) mounting with guides of this series are made in the form of a comb 2x50 Drawing. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

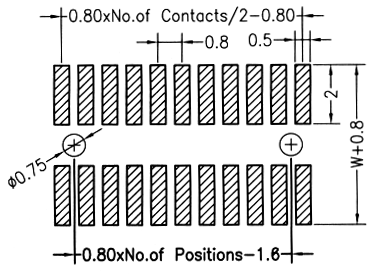

PCB layout

ID	Part.No.	number of contacts
179528	1713SM-1201CG	2
179529	1713SM-1202CG	4
179530	1713SM-1203CG	6
179531	1713SM-1204CG	8
179532	1713SM-1205CG	10
179533	1713SM-1206CG	12
179534	1713SM-1207CG	14
179535	1713SM-1208CG	16
179536	1713SM-1209CG	18
179537	1713SM-1210CG	20
179538	1713SM-1211CG	22
179539	1713SM-1212CG	24
179540	1713SM-1213CG	26
179541	1713SM-1214CG	28
179542	1713SM-1215CG	30
179543	1713SM-1216CG	32
179544	1713SM-1217CG	34
179545	1713SM-1218CG	36
179546	1713SM-1219CG	38
179547	1713SM-1220CG	40
179548	1713SM-1221CG	42
179549	1713SM-1222CG	44
179550	1713SM-1223CG	46
179551	1713SM-1224CG	48
179552	1713SM-1225CG	50

ID	Part.No.	number of contacts
179553	1713SM-1226CG	52
179554	1713SM-1227CG	54
179555	1713SM-1228CG	56
179556	1713SM-1229CG	58
179557	1713SM-1230CG	60
179558	1713SM-1231CG	62
179559	1713SM-1232CG	64
179560	1713SM-1233CG	66
179561	1713SM-1234CG	68
179562	1713SM-1235CG	70
179563	1713SM-1236CG	72
179564	1713SM-1237CG	74
179565	1713SM-1238CG	76
179566	1713SM-1239CG	78
179567	1713SM-1240CG	80
179568	1713SM-1241CG	82
179569	1713SM-1242CG	84
179570	1713SM-1243CG	86
179571	1713SM-1244CG	88
179572	1713SM-1245CG	90
179573	1713SM-1246CG	92
179574	1713SM-1247CG	94
179575	1713SM-1248CG	96
179576	1713SM-1249CG	98
179577	1713SM-1250CG	100

PCB layout
