1713SMDI-22xxPG series

double-row open straight pin header with double insulator on the PCB for surface (SMD) mounting with guides, pitch 0.80 x 1.20 mm

1713SMDI-22xxPG series, double-row open straight pin header with double insulator on the PCB for surface (SMD) mounting with guides, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

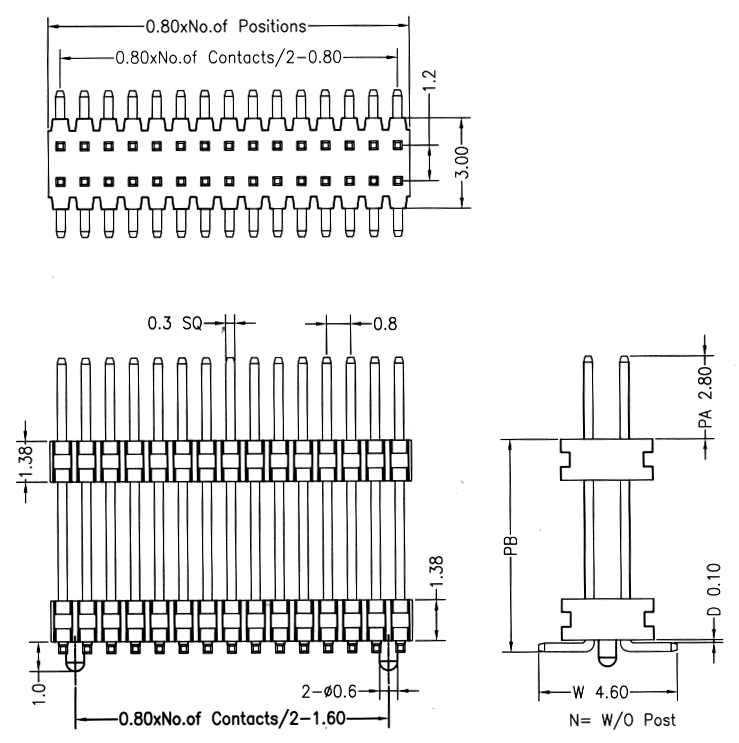

Drawing

17132	SMDI	-	XXX	G	-	PG
1	2		3	4		5

1) series
     17132
2) type
     SM: for surface mounting (SMD)
     S: straight
     R: right angle
     DI: double insulator
     SMDI: for surface mounting (SMD) with double insulator
3) number of contacts 2...100
     XXX
4) gold plated
     G
5) features
     PG: guides to PCB
     CP: cover
     CG: guides to PCB + cover

Double-row open straight pin header with double insulator on the PCB for surface (SMD) mounting with guides of this series are made in the form of a comb 2x50 Drawing. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
179578	1713SMDI-2201PG	2
179579	1713SMDI-2202PG	4
179580	1713SMDI-2203PG	6
179581	1713SMDI-2204PG	8
179582	1713SMDI-2205PG	10
179583	1713SMDI-2206PG	12
179584	1713SMDI-2207PG	14
179585	1713SMDI-2208PG	16
179586	1713SMDI-2209PG	18
179587	1713SMDI-2210PG	20
179588	1713SMDI-2211PG	22
179589	1713SMDI-2212PG	24
179590	1713SMDI-2213PG	26
179591	1713SMDI-2214PG	28
179592	1713SMDI-2215PG	30
179593	1713SMDI-2216PG	32
179594	1713SMDI-2217PG	34
179595	1713SMDI-2218PG	36
179596	1713SMDI-2219PG	38
179597	1713SMDI-2220PG	40
179598	1713SMDI-2221PG	42
179599	1713SMDI-2222PG	44
179600	1713SMDI-2223PG	46
179601	1713SMDI-2224PG	48
179602	1713SMDI-2225PG	50

ID	Part.No.	number of contacts
179603	1713SMDI-2226PG	52
179604	1713SMDI-2227PG	54
179605	1713SMDI-2228PG	56
179606	1713SMDI-2229PG	58
179607	1713SMDI-2230PG	60
179608	1713SMDI-2231PG	62
179609	1713SMDI-2232PG	64
179610	1713SMDI-2233PG	66
179611	1713SMDI-2234PG	68
179612	1713SMDI-2235PG	70
179613	1713SMDI-2236PG	72
179614	1713SMDI-2237PG	74
179615	1713SMDI-2238PG	76
179616	1713SMDI-2239PG	78
179617	1713SMDI-2240PG	80
179618	1713SMDI-2241PG	82
179619	1713SMDI-2242PG	84
179620	1713SMDI-2243PG	86
179621	1713SMDI-2244PG	88
179622	1713SMDI-2245PG	90
179623	1713SMDI-2246PG	92
179624	1713SMDI-2247PG	94
179625	1713SMDI-2248PG	96
179626	1713SMDI-2249PG	98
179627	1713SMDI-2250PG	100

PCB layout
