1713SMDI-22xxCG series

double-row open straight pin header with double insulator on the PCB with mounting cover for automatic surface (SMD) mounting with guides, pitch 0.80 x 1.20 mm

1713SMDI-22xxCG series, double-row open straight pin header with double insulator on the PCB with mounting cover for automatic surface (SMD) mounting with guides, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

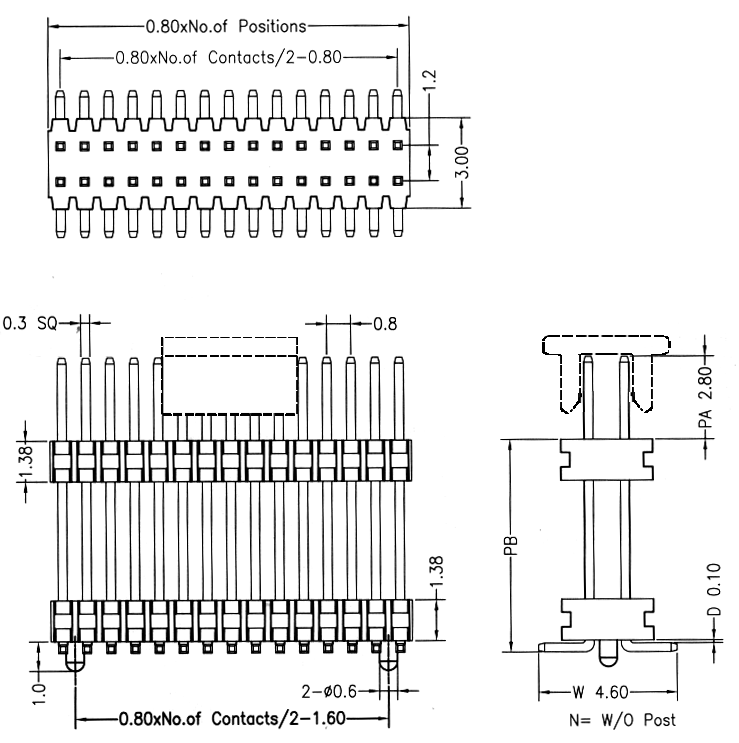

Drawing

17132	SMDI	-	XXX	G	-	CG
1	2		3	4		5

1) series
     17132
2) type
     SM: for surface mounting (SMD)
     S: straight
     R: right angle
     DI: double insulator
     SMDI: for surface mounting (SMD) with double insulator
3) number of contacts 2...100
     XXX
4) gold plated
     G
5) features
     PG: guides to PCB
     CP: cover
     CG: guides to PCB + cover

Double-row open straight pin header with double insulator on the PCB with mounting cover for automatic surface (SMD) mounting with guides of this series are made in the form of a comb 2x50 Drawing. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
179628	1713SMDI-2201CG	2
179629	1713SMDI-2202CG	4
179630	1713SMDI-2203CG	6
179631	1713SMDI-2204CG	8
179632	1713SMDI-2205CG	10
179633	1713SMDI-2206CG	12
179634	1713SMDI-2207CG	14
179635	1713SMDI-2208CG	16
179636	1713SMDI-2209CG	18
179637	1713SMDI-2210CG	20
179638	1713SMDI-2211CG	22
179639	1713SMDI-2212CG	24
179640	1713SMDI-2213CG	26
179641	1713SMDI-2214CG	28
179642	1713SMDI-2215CG	30
179643	1713SMDI-2216CG	32
179644	1713SMDI-2217CG	34
179645	1713SMDI-2218CG	36
179646	1713SMDI-2219CG	38
179647	1713SMDI-2220CG	40
179648	1713SMDI-2221CG	42
179649	1713SMDI-2222CG	44
179650	1713SMDI-2223CG	46
179651	1713SMDI-2224CG	48
179652	1713SMDI-2225CG	50

ID	Part.No.	number of contacts
179653	1713SMDI-2226CG	52
179654	1713SMDI-2227CG	54
179655	1713SMDI-2228CG	56
179656	1713SMDI-2229CG	58
179760	1713SMDI-2230CG	60
179761	1713SMDI-2231CG	62
179762	1713SMDI-2232CG	64
179766	1713SMDI-2233CG	66
179767	1713SMDI-2234CG	68
179768	1713SMDI-2235CG	70
179769	1713SMDI-2236CG	72
179770	1713SMDI-2237CG	74
179771	1713SMDI-2238CG	76
179772	1713SMDI-2239CG	78
179773	1713SMDI-2240CG	80
179774	1713SMDI-2241CG	82
179775	1713SMDI-2242CG	84
179776	1713SMDI-2243CG	86
179777	1713SMDI-2244CG	88
179778	1713SMDI-2245CG	90
179779	1713SMDI-2246CG	92
179780	1713SMDI-2247CG	94
179781	1713SMDI-2248CG	96
179782	1713SMDI-2249CG	98
179783	1713SMDI-2250CG	100

PCB layout
