1713S-12xx series

double-row open straight pin header on the PCB for mounting holes, pitch 0.80 x 1.20 mm

1713S-12xx series, double-row open straight pin header on the PCB for mounting holes, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

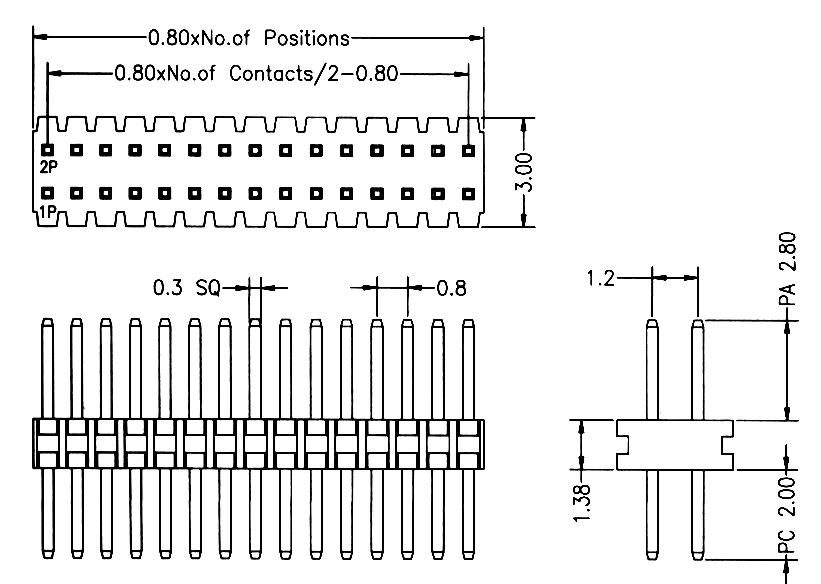

Drawing

17131	S	-	XXX	G
1	2		3	4

1) series
     17131
2) type
     SM: for surface mounting (SMD)
     S: straight
     R: right angle
     DI: double insulator
     SMDI: for surface mounting (SMD) with double insulator
3) number of contacts 2...100
     XXX
4) gold plated
     G

Double-row open straight pin header on the PCB for mounting holes of this series are made in the form of a comb 2x50 Drawing. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
179784	1713S-1201	2
179785	1713S-1202	4
179786	1713S-1203	6
179787	1713S-1204	8
179788	1713S-1205	10
179789	1713S-1206	12
179790	1713S-1207	14
179791	1713S-1208	16
179792	1713S-1209	18
179793	1713S-1210	20
179794	1713S-1211	22
179795	1713S-1212	24
179796	1713S-1213	26
179797	1713S-1214	28
179798	1713S-1215	30
179799	1713S-1216	32
179800	1713S-1217	34
179801	1713S-1218	36
179820	1713S-1219	38
179821	1713S-1220	40
179822	1713S-1221	42
179823	1713S-1222	44
179824	1713S-1223	46
179825	1713S-1224	48
179826	1713S-1225	50

ID	Part.No.	number of contacts
179827	1713S-1226	52
179828	1713S-1227	54
179829	1713S-1228	56
179830	1713S-1229	58
179831	1713S-1230	60
179832	1713S-1231	62
179833	1713S-1232	64
179834	1713S-1233	66
179835	1713S-1234	68
179836	1713S-1235	70
179837	1713S-1236	72
179838	1713S-1237	74
179839	1713S-1238	76
179840	1713S-1239	78
179841	1713S-1240	80
179842	1713S-1241	82
179843	1713S-1242	84
179844	1713S-1243	86
179845	1713S-1244	88
179846	1713S-1245	90
179847	1713S-1246	92
179848	1713S-1247	94
179849	1713S-1248	96
179850	1713S-1249	98
179851	1713S-1250	100

1713S-12xx series, double-row open straight pin header on the PCB for mounting holes, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

PCB layout
