2731SM-02xxCP series

double-row straight sockets on the PCB with mounting cover for automatic surface (SMD) mounting, pitch 0.80 x 1.20 mm

2731SM-02xxCP series, double-row straight sockets on the PCB with mounting cover for automatic surface (SMD) mounting, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

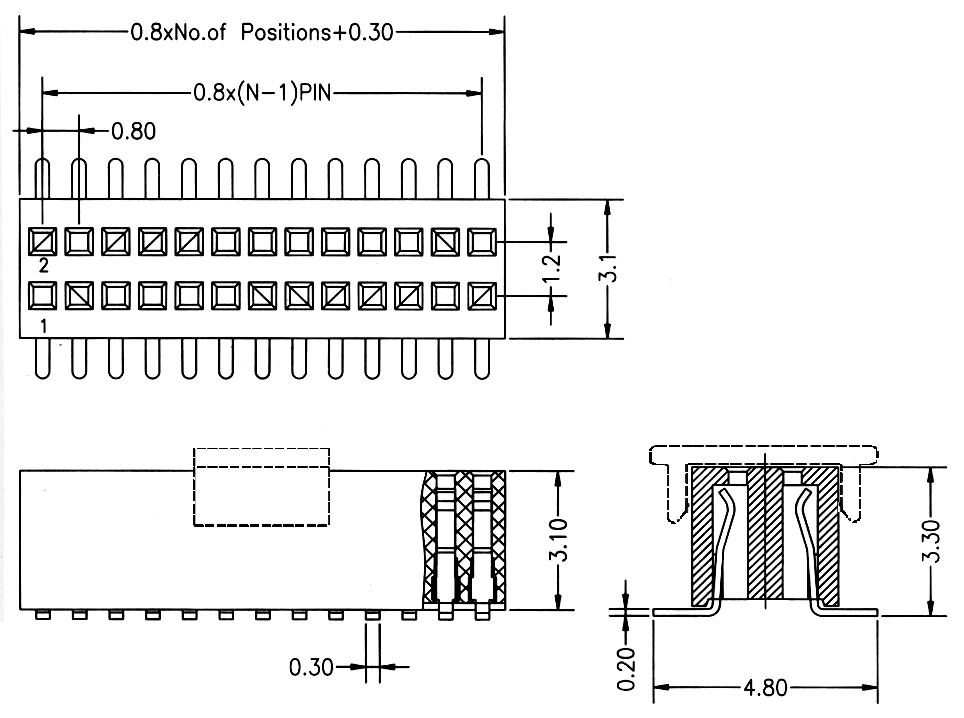

Drawing

27311	SM	-	XXX	G	-	CP
1	2		3	4		5

1) series
     27311
2) type
     SM: for surface mounting (SMD)
3) number of contacts 2...100
     XXX
4) gold plated
     G
5) features
     PG: guides to PCB
     CP: cover
     CG: guides to PCB + cover

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

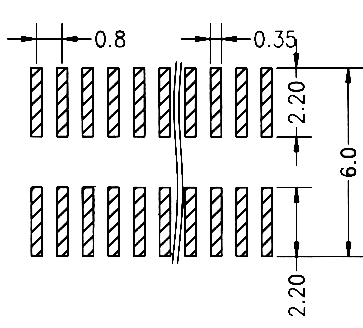

PCB layout

ID	Part.No.	number of contacts
182519	2731SM-0201CP	2
182520	2731SM-0202CP	4
182521	2731SM-0203CP	6
182522	2731SM-0204CP	8
182523	2731SM-0205CP	10
182524	2731SM-0206CP	12
182525	2731SM-0207CP	14
182526	2731SM-0208CP	16
182527	2731SM-0209CP	18
182528	2731SM-0210CP	20
182529	2731SM-0211CP	22
182530	2731SM-0212CP	24
182531	2731SM-0213CP	26
182532	2731SM-0214CP	28
182533	2731SM-0215CP	30
182534	2731SM-0216CP	32
182535	2731SM-0217CP	34
182536	2731SM-0218CP	36
182537	2731SM-0219CP	38
182538	2731SM-0220CP	40
182539	2731SM-0221CP	42
182540	2731SM-0222CP	44
182541	2731SM-0223CP	46
182542	2731SM-0224CP	48
182543	2731SM-0225CP	50

ID	Part.No.	number of contacts
182544	2731SM-0226CP	52
182545	2731SM-0227CP	54
182546	2731SM-0228CP	56
182547	2731SM-0229CP	58
182548	2731SM-0230CP	60
182549	2731SM-0231CP	62
182550	2731SM-0232CP	64
182551	2731SM-0233CP	66
182552	2731SM-0234CP	68
182553	2731SM-0235CP	70
182554	2731SM-0236CP	72
182555	2731SM-0237CP	74
182556	2731SM-0238CP	76
182557	2731SM-0239CP	78
182558	2731SM-0240CP	80
182559	2731SM-0241CP	82
182560	2731SM-0242CP	84
182561	2731SM-0243CP	86
182562	2731SM-0244CP	88
182563	2731SM-0245CP	90
182564	2731SM-0246CP	92
182565	2731SM-0247CP	94
182566	2731SM-0248CP	96
182567	2731SM-0249CP	98
182568	2731SM-0250CP	100

PCB layout
