2731SM-02xxCG series

double-row straight sockets on the PCB with mounting cover for automatic surface (SMD) mounting with guides, pitch 0.80 x 1.20 mm

2731SM-02xxCG series, double-row straight sockets on the PCB with mounting cover for automatic surface (SMD) mounting with guides, pitch 0.80 x 1.20 mm, Board-to-Board connectors, pin headers and sockets > pitch 0.80 x 1.20 mm

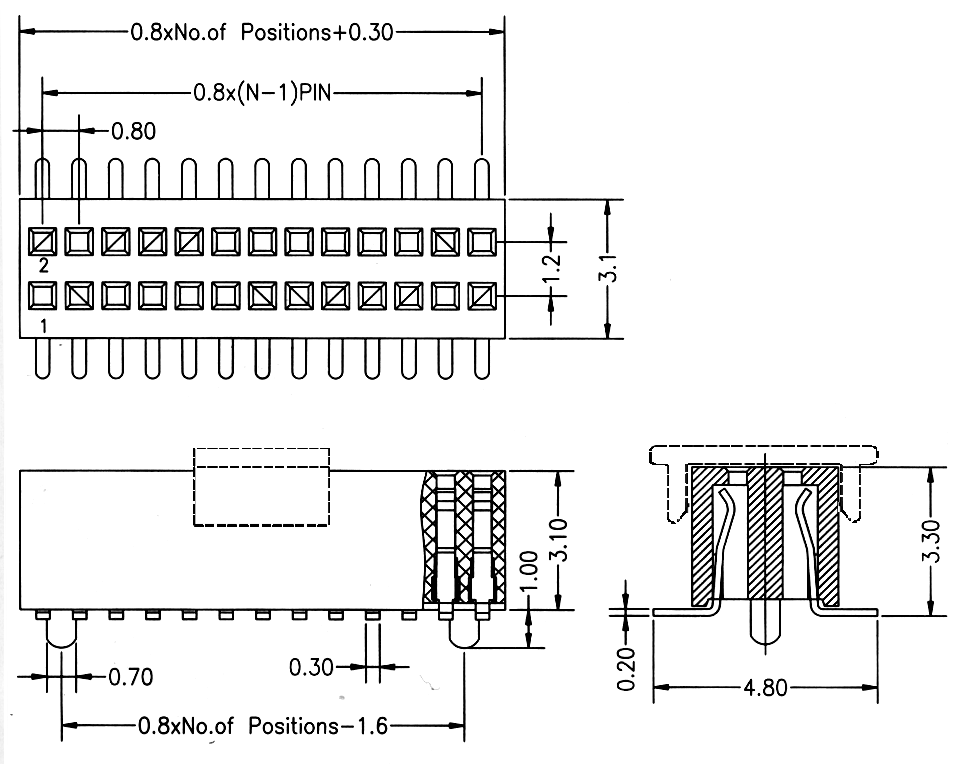

Drawing

27311	SM	-	XXX	G	-	CG
1	2		3	4		5

1) series
     27311
2) type
     SM: for surface mounting (SMD)
3) number of contacts 2...100
     XXX
4) gold plated
     G
5) features
     PG: guides to PCB
     CP: cover
     CG: guides to PCB + cover

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 0.75 A AC/DC
Maximum voltage: 100 V AC/DC
Electric characteristic: 30 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

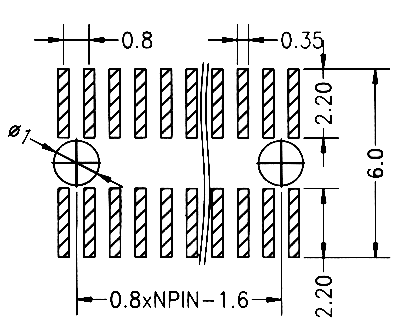

PCB layout

ID	Part.No.	number of contacts
182469	2731SM-0201CG	2
182470	2731SM-0202CG	4
182471	2731SM-0203CG	6
182472	2731SM-0204CG	8
182473	2731SM-0205CG	10
182474	2731SM-0206CG	12
182475	2731SM-0207CG	14
182476	2731SM-0208CG	16
182477	2731SM-0209CG	18
182478	2731SM-0210CG	20
182479	2731SM-0211CG	22
182480	2731SM-0212CG	24
182481	2731SM-0213CG	26
182482	2731SM-0214CG	28
182483	2731SM-0215CG	30
182484	2731SM-0216CG	32
182485	2731SM-0217CG	34
182486	2731SM-0218CG	36
182487	2731SM-0219CG	38
182488	2731SM-0220CG	40
182489	2731SM-0221CG	42
182490	2731SM-0222CG	44
182491	2731SM-0223CG	46
182492	2731SM-0224CG	48
182493	2731SM-0225CG	50

ID	Part.No.	number of contacts
182494	2731SM-0226CG	52
182495	2731SM-0227CG	54
182496	2731SM-0228CG	56
182497	2731SM-0229CG	58
182498	2731SM-0230CG	60
182499	2731SM-0231CG	62
182500	2731SM-0232CG	64
182501	2731SM-0233CG	66
182502	2731SM-0234CG	68
182503	2731SM-0235CG	70
182504	2731SM-0236CG	72
182505	2731SM-0237CG	74
182506	2731SM-0238CG	76
182507	2731SM-0239CG	78
182508	2731SM-0240CG	80
182509	2731SM-0241CG	82
182510	2731SM-0242CG	84
182511	2731SM-0243CG	86
182512	2731SM-0244CG	88
182513	2731SM-0245CG	90
182514	2731SM-0246CG	92
182515	2731SM-0247CG	94
182516	2731SM-0248CG	96
182517	2731SM-0249CG	98
182518	2731SM-0250CG	100

PCB layout
