2206PADI-XXG-SM-B2-XXXX-CP series

plugs open straight single row with double insulator for surface (SMD) mounting on Board with mounting cover, pitch 1,27 mm

2206PADI-XXG-SM-B2-XXXX-CP series, plugs open straight single row with double insulator for surface (SMD) mounting on Board with mounting cover, pitch 1,27 mm, Board-to-Board connectors, pin headers and sockets > pitch 1,27 mm

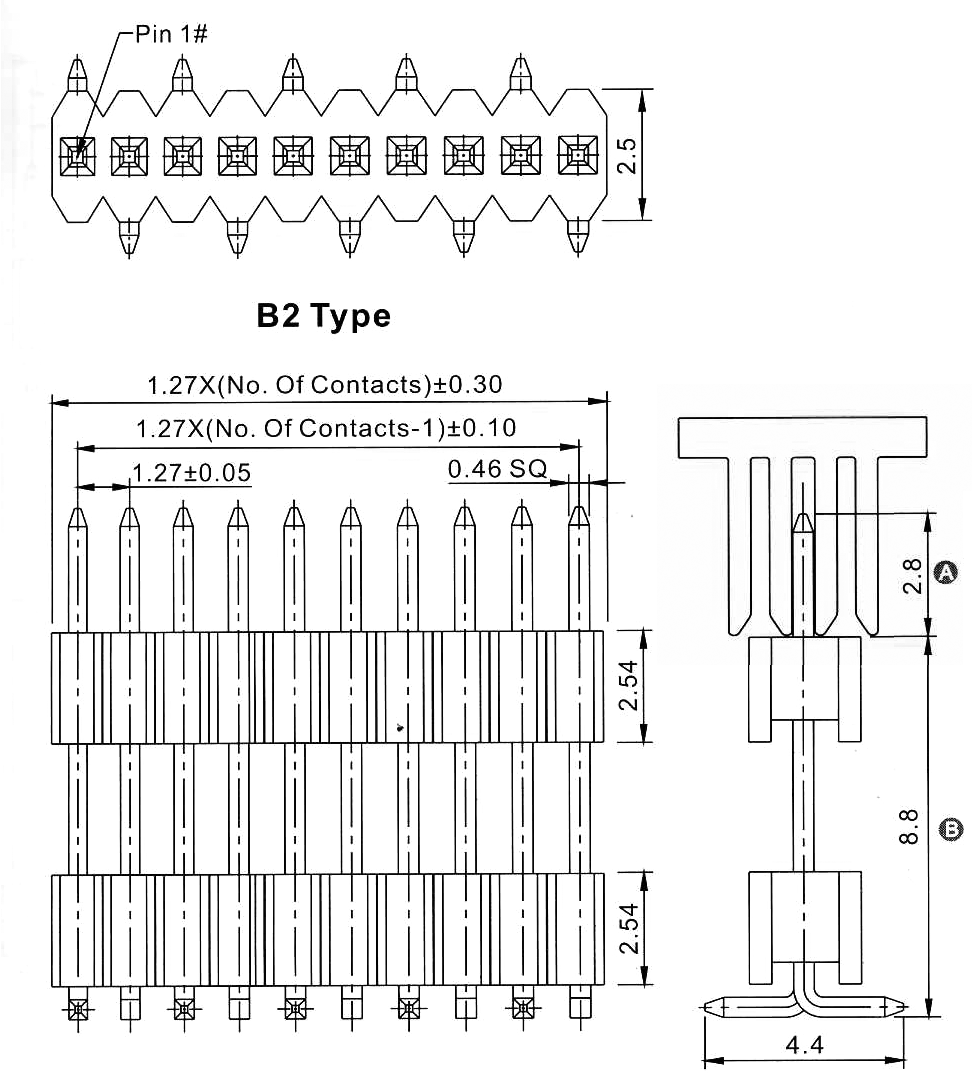

Drawing

2206	PADI	-	01	G	-	SM	-	B1	-	2880	-	CP
1	2		3	4		5		6		7		8

1) series:
     2206
2) insulator:
     PADI: straight single row with double insulator
3) number of contacts (1...50):
     01: 1 contact
     02: 2 contact
     xx: ...
     50: 50 contacts
4) cover:
     G: gold plating
     T: tin plating
5) for surface mounting (SMD):
     SM
6) mirror arrangement of contacts:
     B1
     B2
7) dimensions A & B in tenths of mm:
     2880: (standard) A=2,8mm, B=8,8mm
     XXXX
8) cover for automatic installation:
     CP

Plugs open straight single row with double insulator for surface (SMD) mounting on Board with mounting cover of this series are made in the form of a comb 1x50 pins. Then they can be cut on a special device on factory at the request of the customer for any number of contacts: 1, 2, 3... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 1 A AC/DC
Maximum voltage: 50 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 500 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -25...+125°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
83205	2206PADI-02G-SM-B2-2888-CP	2
83206	2206PADI-03G-SM-B2-2888-CP	3
83207	2206PADI-04G-SM-B2-2888-CP	4
83208	2206PADI-05G-SM-B2-2888-CP	5
83209	2206PADI-06G-SM-B2-2888-CP	6
83210	2206PADI-07G-SM-B2-2888-CP	7
83211	2206PADI-08G-SM-B2-2888-CP	8
83212	2206PADI-09G-SM-B2-2888-CP	9
83213	2206PADI-10G-SM-B2-2888-CP	10
83214	2206PADI-11G-SM-B2-2888-CP	11
83215	2206PADI-12G-SM-B2-2888-CP	12
83216	2206PADI-13G-SM-B2-2888-CP	13
83217	2206PADI-14G-SM-B2-2888-CP	14
83218	2206PADI-15G-SM-B2-2888-CP	15
83219	2206PADI-16G-SM-B2-2888-CP	16
83220	2206PADI-17G-SM-B2-2888-CP	17
83221	2206PADI-18G-SM-B2-2888-CP	18
83222	2206PADI-19G-SM-B2-2888-CP	19
83223	2206PADI-20G-SM-B2-2888-CP	20
83224	2206PADI-21G-SM-B2-2888-CP	21
83225	2206PADI-22G-SM-B2-2888-CP	22
83226	2206PADI-23G-SM-B2-2888-CP	23
83227	2206PADI-24G-SM-B2-2888-CP	24
83228	2206PADI-25G-SM-B2-2888-CP	25
83229	2206PADI-26G-SM-B2-2888-CP	26

ID	Part.No.	number of contacts
83230	2206PADI-27G-SM-B2-2888-CP	27
83231	2206PADI-28G-SM-B2-2888-CP	28
83232	2206PADI-29G-SM-B2-2888-CP	29
83233	2206PADI-30G-SM-B2-2888-CP	30
83234	2206PADI-31G-SM-B2-2888-CP	31
83235	2206PADI-32G-SM-B2-2888-CP	32
83236	2206PADI-33G-SM-B2-2888-CP	33
83237	2206PADI-34G-SM-B2-2888-CP	34
83238	2206PADI-35G-SM-B2-2888-CP	35
83239	2206PADI-36G-SM-B2-2888-CP	36
83240	2206PADI-37G-SM-B2-2888-CP	37
83241	2206PADI-38G-SM-B2-2888-CP	38
83242	2206PADI-39G-SM-B2-2888-CP	39
83243	2206PADI-40G-SM-B2-2888-CP	40
83244	2206PADI-41G-SM-B2-2888-CP	41
83245	2206PADI-42G-SM-B2-2888-CP	42
83246	2206PADI-43G-SM-B2-2888-CP	43
83247	2206PADI-44G-SM-B2-2888-CP	44
83248	2206PADI-45G-SM-B2-2888-CP	45
83249	2206PADI-46G-SM-B2-2888-CP	46
83250	2206PADI-47G-SM-B2-2888-CP	47
83251	2206PADI-48G-SM-B2-2888-CP	48
83252	2206PADI-49G-SM-B2-2888-CP	49
83253	2206PADI-50G-SM-B2-2888-CP	50

PCB layout
