2206PADI-XXG-SM-B1-XXXX-CP series

plugs open straight single row with double insulator for surface (SMD) mounting on Board with mounting cover, pitch 1,27 mm

2206PADI-XXG-SM-B1-XXXX-CP series, plugs open straight single row with double insulator for surface (SMD) mounting on Board with mounting cover, pitch 1,27 mm, Board-to-Board connectors, pin headers and sockets > pitch 1,27 mm

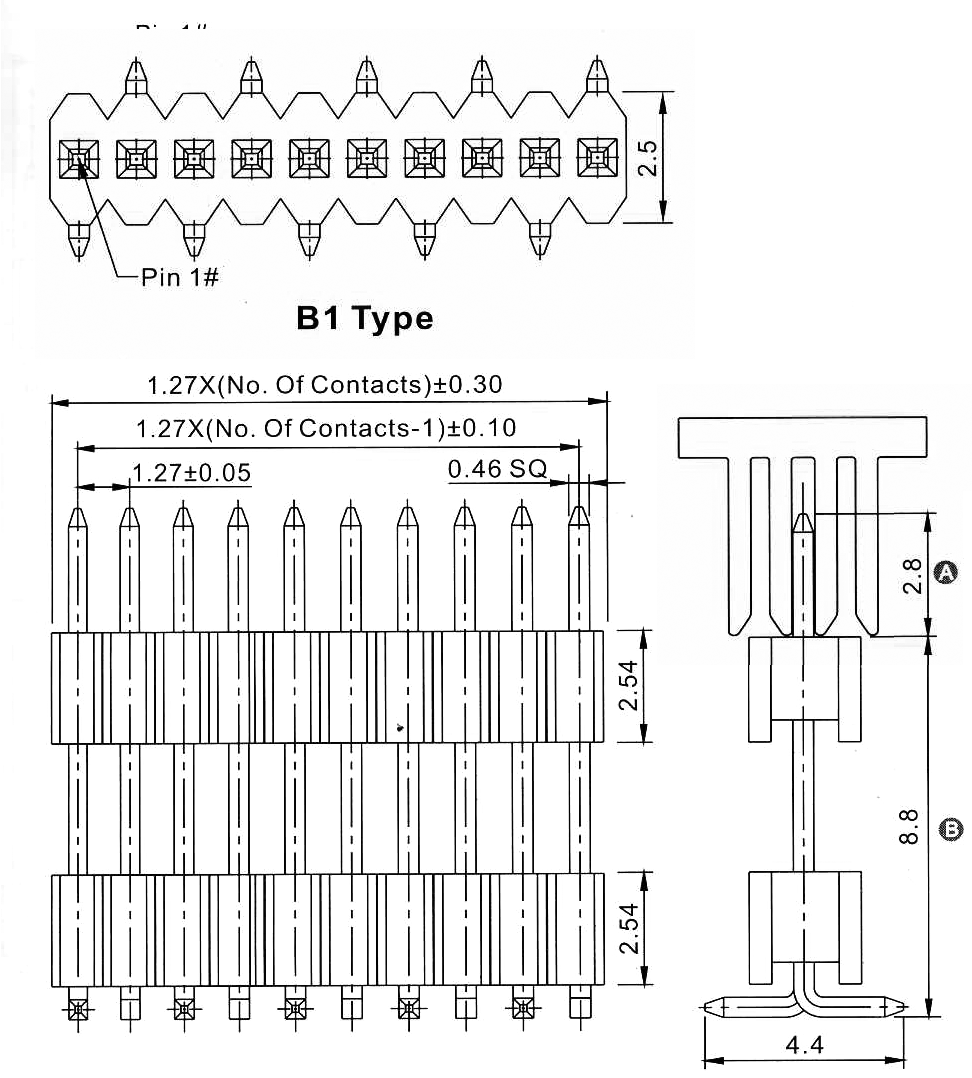

Drawing

2206	PADI	-	01	G	-	SM	-	B1	-	2880	-	CP
1	2		3	4		5		6		7		8

1) series:
     2206
2) insulator:
     PADI: straight single row with double insulator
3) number of contacts (1...50):
     01: 1 contact
     02: 2 contact
     xx: ...
     50: 50 contacts
4) cover:
     G: gold plating
     T: tin plating
5) for surface mounting (SMD):
     SM
6) mirror arrangement of contacts:
     B1
     B2
7) dimensions A & B in tenths of mm:
     2880: (standard) A=2,8mm, B=8,8mm
     XXXX
8) cover for automatic installation:
     CP

Plugs open straight single row with double insulator for surface (SMD) mounting on Board with mounting cover of this series are made in the form of a comb 1x50 pins. Then they can be cut on a special device on factory at the request of the customer for any number of contacts: 1, 2, 3... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 1 A AC/DC
Maximum voltage: 50 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 500 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -25...+125°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
83155	2206PADI-02G-SM-B1-2888-CP	2
83156	2206PADI-03G-SM-B1-2888-CP	3
83157	2206PADI-04G-SM-B1-2888-CP	4
83158	2206PADI-05G-SM-B1-2888-CP	5
83159	2206PADI-06G-SM-B1-2888-CP	6
83160	2206PADI-07G-SM-B1-2888-CP	7
83161	2206PADI-08G-SM-B1-2888-CP	8
83162	2206PADI-09G-SM-B1-2888-CP	9
83163	2206PADI-10G-SM-B1-2888-CP	10
83164	2206PADI-11G-SM-B1-2888-CP	11
83165	2206PADI-12G-SM-B1-2888-CP	12
83166	2206PADI-13G-SM-B1-2888-CP	13
83167	2206PADI-14G-SM-B1-2888-CP	14
83168	2206PADI-15G-SM-B1-2888-CP	15
83169	2206PADI-16G-SM-B1-2888-CP	16
83170	2206PADI-17G-SM-B1-2888-CP	17
83171	2206PADI-18G-SM-B1-2888-CP	18
83172	2206PADI-19G-SM-B1-2888-CP	19
83173	2206PADI-20G-SM-B1-2888-CP	20
83174	2206PADI-21G-SM-B1-2888-CP	21
83175	2206PADI-22G-SM-B1-2888-CP	22
83176	2206PADI-23G-SM-B1-2888-CP	23
83177	2206PADI-24G-SM-B1-2888-CP	24
83178	2206PADI-25G-SM-B1-2888-CP	25
83179	2206PADI-26G-SM-B1-2888-CP	26

ID	Part.No.	number of contacts
83180	2206PADI-27G-SM-B1-2888-CP	27
83181	2206PADI-28G-SM-B1-2888-CP	28
83182	2206PADI-29G-SM-B1-2888-CP	29
83183	2206PADI-30G-SM-B1-2888-CP	30
83184	2206PADI-31G-SM-B1-2888-CP	31
83185	2206PADI-32G-SM-B1-2888-CP	32
83186	2206PADI-33G-SM-B1-2888-CP	33
83187	2206PADI-34G-SM-B1-2888-CP	34
83188	2206PADI-35G-SM-B1-2888-CP	35
83189	2206PADI-36G-SM-B1-2888-CP	36
83190	2206PADI-37G-SM-B1-2888-CP	37
83191	2206PADI-38G-SM-B1-2888-CP	38
83192	2206PADI-39G-SM-B1-2888-CP	39
83193	2206PADI-40G-SM-B1-2888-CP	40
83194	2206PADI-41G-SM-B1-2888-CP	41
83195	2206PADI-42G-SM-B1-2888-CP	42
83196	2206PADI-43G-SM-B1-2888-CP	43
83197	2206PADI-44G-SM-B1-2888-CP	44
83198	2206PADI-45G-SM-B1-2888-CP	45
83199	2206PADI-46G-SM-B1-2888-CP	46
83200	2206PADI-47G-SM-B1-2888-CP	47
83201	2206PADI-48G-SM-B1-2888-CP	48
83202	2206PADI-49G-SM-B1-2888-CP	49
83203	2206PADI-50G-SM-B1-2888-CP	50

PCB layout
