| Connectors >> Round industrial metal connectors (low-frequency cylindrical connectors) |
X12 series |
| Round industrial metal connectors (low-frequency cylindrical connectors) under hole in device with diameter 12 mm |
|
|
|
1) Series:
X12
2) Number of contacts (2...6):
XX
3) Type:
PC: Plug on cable
PW: Plug on device
YC: Socket on cable
YW: Socket on device
PC/YW: plug to cable+socket to device
PW/YC: plug on device+socket on cable
PC/YC: plug on cable+socket on cable
4) Cover:
[ ] blank: Nickel plated
B: blackened
|
|
| |

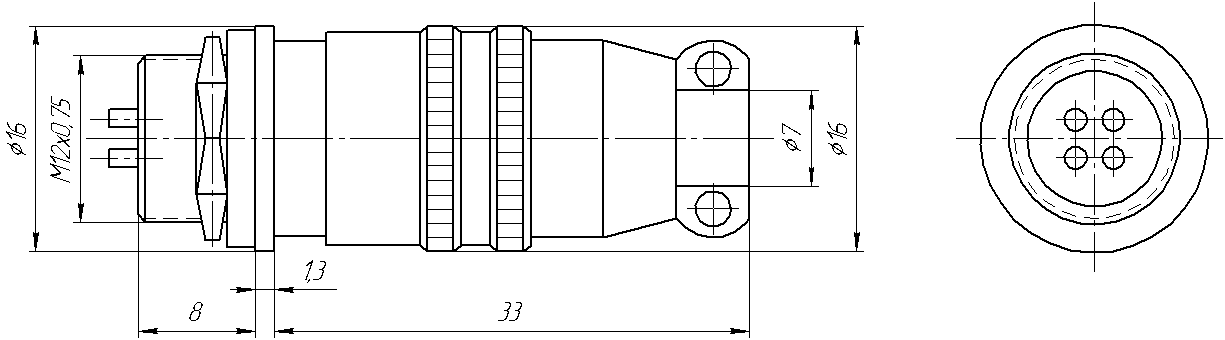

Round industrial metal connectors (low-frequency cylindrical connectors) X12 series under hole in device with diameter 12 mm made with threaded connection.
Round industrial metal connectors (low-frequency cylindrical connectors) X12 series under hole in device with diameter 12 mm. have low contact resistance, high vibration resistance and high mechanical shock resistance.
Round industrial metal connectors (low-frequency cylindrical connectors) X12 series under hole in device with diameter 12 mm manufactured in dust-proof performance.
Round industrial metal connectors (low-frequency cylindrical connectors) X12 series under hole in device with diameter 12 mm used in electric circuits of direct and alternating currents, in radio-electronic equipment, in radio-technical equipment, in military equipment or medical equipment as connectors for various purposes both for power transmission and for information signals transmission.
Round industrial metal connectors (low-frequency cylindrical connectors) X12 series under hole in device with diameter 12 mm available in metal cases.
Round industrial metal connectors (low-frequency cylindrical connectors) X12 series under hole in device with diameter 12 mm are supplied mainly under order from factory, because they are quite expensive and a lot of combinations. factory does not keep majority of positions in a warehouse, and makes under order. Production time is about 2 weeks. The minimum order quantity (MOQ) is 50 pieces.
Terms of delivery of round industrial metal connectors (cylindrical low-frequency connectors) X12 series under hole in device with diameter 12 mm check with our managers, please.
|
| Number of contacts: |
2/3/4/5/6 |
| maximum current, A: |
5 |
| Rated voltage, V: |
250 |
| Breakdown voltage, V: |
1500 |
| Insulation resistance, MOhm: |
>1000 |
| Contact resistance, mOhm: |
<5 |
| diameter of contacts, mm: |
1 |
| Working temperature, deg. C: |
-55...+85 |
| Resource, cycles: |
1000 |
|
 Contact arrangement
 |
 |
 |
 |
 |
| 2 pins |
3 pins |
4 pins |
5 pins |
6 pins |
|
 |
204888 |
X12-2PC |
2 |
plug on cable |
 |
204891 |
X12-2PC/YWF |
2 |
kit: plug to cable+socket with flange to device |
 |
204894 |
X12-2PWF |
2 |
plug with flange on device |
 |
204895 |
X12-2PWF/YC |
2 |
kit: plug with flange on device+socket on cable |
 |
204896 |
X12-2YC |
2 |
socket on cable |
 |
204898 |
X12-2YWF |
2 |
socket with flange on device |
 |
204899 |
X12-3PC |
3 |
plug on cable |
 |
204902 |
X12-3PC/YWF |
3 |
kit: plug to cable+socket with flange to device |
 |
204905 |
X12-3PWF |
3 |
plug with flange on device |
 |
204906 |
X12-3PWF/YC |
3 |
kit: plug with flange on device+socket on cable |
 |
204907 |
X12-3YC |
3 |
socket on cable |
 |
204909 |
X12-3YWF |
3 |
socket with flange on device |
 |
204910 |
X12-4PC |
4 |
plug on cable |
 |
204913 |
X12-4PC/YWF |
4 |
kit: plug to cable+socket with flange to device |
 |
204916 |
X12-4PWF |
4 |
plug with flange on device |
 |
204917 |
X12-4PWF/YC |
4 |
kit: plug with flange on device+socket on cable |
 |
204918 |
X12-4YC |
4 |
socket on cable |
 |
204920 |
X12-4YWF |
4 |
socket with flange on device |
 |
204921 |
X12-5PC |
5 |
plug on cable |
 |
204924 |
X12-5PC/YWF |
5 |
kit: plug to cable+socket with flange to device |
 |
204927 |
X12-5PWF |
5 |
plug with flange on device |
 |
204928 |
X12-5PWF/YC |
5 |
kit: plug with flange on device+socket on cable |
 |
204929 |
X12-5YC |
5 |
socket on cable |
 |
204931 |
X12-5YWF |
5 |
socket with flange on device |
 |
204932 |
X12-6PC |
6 |
plug on cable |
 |
204935 |
X12-6PC/YWF |
6 |
kit: plug to cable+socket with flange to device |
 |
204938 |
X12-6PWF |
6 |
plug with flange on device |
 |
204939 |
X12-6PWF/YC |
6 |
kit: plug with flange on device+socket on cable |
 |
204940 |
X12-6YC |
6 |
socket on cable |
 |
204942 |
X12-6YWF |
6 |
socket with flange on device |
|
|
|
|
