Connectors >> Round industrial metal connectors (low-frequency cylindrical connectors)

GX16 series
Round industrial metal connectors (low-frequency cylindrical connectors) under hole in device with diameter 16 mm
Round industrial metal connectors (low-frequency cylindrical connectors), under hole in device with diameter 16 mm

standard kit: plug on device, socket on cable

Разъемы круглые промышленные металлические (соединители низкочастотные цилиндрические), под отверстие в прибор диаметром 16 mm

GX16 - XX PW/YC - B
1   2 3   4

1) Series:
     GX16
2) Number of contacts (2...10):
     XX
3) Type:
     PC: Plug on cable
     PW: Plug on device
     YC: Socket on cable
     YW: Socket on device
     PC/YW: plug to cable+socket to device
     PW/YC: plug on device+socket on cable
     PC/YC: plug on cable+socket on cable
4) Cover:
     [ ] blank: Nickel plated
     B: blackened is possible at ordering from 1000 pieces of the same type


Round industrial metal connectors (low-frequency cylindrical connectors) GX16 series under hole in device with diameter 16 mm made with threaded connection.

Round industrial metal connectors (low-frequency cylindrical connectors) GX16 series under hole in device with diameter 16 mm. have low contact resistance, high vibration resistance and high mechanical shock resistance.

Round industrial metal connectors (low-frequency cylindrical connectors) GX16 series under hole in device with diameter 16 mm manufactured in dust-proof performance.

Round industrial metal connectors (low-frequency cylindrical connectors) GX16 series under hole in device with diameter 16 mm used in electric circuits of direct and alternating currents, in radio-electronic equipment, in radio-technical equipment, in military equipment or medical equipment as connectors for various purposes both for power transmission and for information signals transmission.

Round industrial metal connectors (low-frequency cylindrical connectors) GX16 series under hole in device with diameter 16 mm available in metal cases.

Round industrial metal connectors (low-frequency cylindrical connectors) GX16 series under hole in device with diameter 16 mm are supplied mainly under order from factory, because they are quite expensive and a lot of combinations. factory does not keep majority of positions in a warehouse, and makes under order. Production time is about 2 weeks. The minimum order quantity (MOQ) is 50 pieces.

Terms of delivery of round industrial metal connectors (cylindrical low-frequency connectors) GX16 series under hole in device with diameter 16 mm check with our managers, please.

Number of contacts: 2/3/4 5 6/7/8/9/10
maximum current, A: 7 5 3
Rated voltage, V: 125 125 125
Limit voltage, V: 200 200 200
Breakdown voltage, V: 1500 1500 1500
Insulation resistance, MOhm: >1500 1500 2000
Contact resistance, mOhm: <7 8 10
diameter of contacts, mm: 2,5 2 1,2

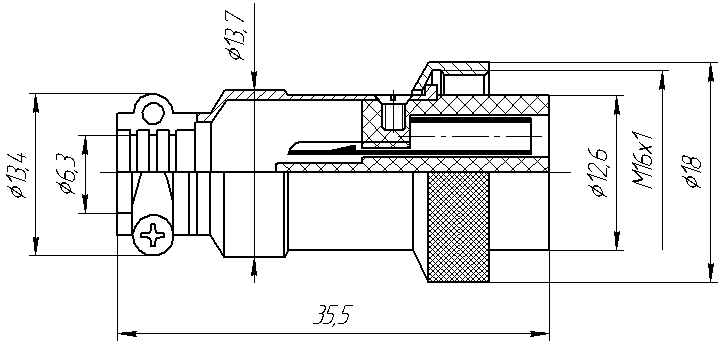

plug on cable plug with round nut on device socket on cable socket angle on cable socket on device socket with round flange for 3 mounting holes on device
Round industrial metal connector (low frequency cylindrical connector) series - plug on cable Round industrial metal connector (low frequency cylindrical connector) series - plug with round nut on device Round industrial metal connector (low frequency cylindrical connector) series - socket on cable Round industrial metal connector (low frequency cylindrical connector) series - socket angle on cable Round industrial metal connector (low frequency cylindrical connector) series - socket on device Round industrial metal connector (low frequency cylindrical connector) series - socket with round flange for 3 mounting holes on device

Contact arrangement
2 pins 3 pins 4 pins 5 pins 6 pins 7 pins 8 pins 9 pins 10 pins



Appearance ID Part.No. Number of
contacts		 Description
plug on cable 205191 GX16-02PC 2 plug on cable
plug to device 39966 GX16-02PW 2 plug to device
plug with flange to device 205192 GX16-02PWF2 2 plug with flange to device
plug with flange to device 205193 GX16-02PWF3 2 plug with flange to device
plug with flange to device 205194 GX16-02PWF4 2 plug with flange to device
corner plug for device and Board 205195 GX16-02PWRPCB 2 corner plug for device and Board
socket on cable 39967 GX16-02YC 2 socket on cable
corner socket for cable 205196 GX16-02YCR 2 corner socket for cable
socket on device 205197 GX16-02YW 2 socket on device
socket with flange on device 205198 GX16-02YWF2 2 socket with flange on device
socket with flange on device 205199 GX16-02YWF3 2 socket with flange on device
socket with flange on device 205200 GX16-02YWF4 2 socket with flange on device
kit: plug on cable+socket on device 205201 GX16-02PCN/YW 2 kit: plug on cable+socket on device
kit: plug into device socket on cable 151627 GX16-02PW/YC 2 kit: plug into device socket on cable
kit: plug on cable+socket on cable 59944 GX16-02PC/YC 2 kit: plug on cable+socket on cable
plug on cable 59945 GX16-03PC 3 plug on cable
plug to device 39968 GX16-03PW 3 plug to device
plug with flange to device 205202 GX16-03PWF2 3 plug with flange to device
plug with flange to device 205203 GX16-03PWF3 3 plug with flange to device
plug with flange to device 205204 GX16-03PWF4 3 plug with flange to device
corner plug for device and Board 205205 GX16-03PWRPCB 3 corner plug for device and Board
socket on cable 39953 GX16-03YC 3 socket on cable
corner socket for cable 205206 GX16-03YCR 3 corner socket for cable
socket on device 205207 GX16-03YW 3 socket on device
socket with flange on device 205208 GX16-03YWF2 3 socket with flange on device
socket with flange on device 205209 GX16-03YWF3 3 socket with flange on device
socket with flange on device 205210 GX16-03YWF4 3 socket with flange on device
kit: plug on cable+socket on device 205211 GX16-03PCN/YW 3 kit: plug on cable+socket on device
kit: plug into device socket on cable 37530 GX16-03PW/YC 3 kit: plug into device socket on cable
kit: plug on cable+socket on cable 205212 GX16-03PC/YC 3 kit: plug on cable+socket on cable
plug on cable 59946 GX16-04PC 4 plug on cable
plug to device 39950 GX16-04PW 4 plug to device
plug with flange to device 205213 GX16-04PWF2 4 plug with flange to device
plug with flange to device 205214 GX16-04PWF3 4 plug with flange to device
plug with flange to device 205215 GX16-04PWF4 4 plug with flange to device
corner plug for device and Board 205216 GX16-04PWRPCB 4 corner plug for device and Board
socket on cable 39951 GX16-04YC 4 socket on cable
corner socket for cable 205217 GX16-04YCR 4 corner socket for cable
socket on device 205218 GX16-04YW 4 socket on device
socket with flange on device 205219 GX16-04YWF2 4 socket with flange on device
socket with flange on device 205220 GX16-04YWF3 4 socket with flange on device
socket with flange on device 205221 GX16-04YWF4 4 socket with flange on device
kit: plug on cable+socket on device 205222 GX16-04PCN/YW 4 kit: plug on cable+socket on device
kit: plug into device socket on cable 39818 GX16-04PW/YC 4 kit: plug into device socket on cable
kit: plug on cable+socket on cable 40391 GX16-04PC/YC 4 kit: plug on cable+socket on cable
plug on cable 205223 GX16-05PC 5 plug on cable
plug to device 39952 GX16-05PW 5 plug to device
plug with flange to device 205224 GX16-05PWF2 5 plug with flange to device
plug with flange to device 205225 GX16-05PWF3 5 plug with flange to device
plug with flange to device 205226 GX16-05PWF4 5 plug with flange to device
corner plug for device and Board 205227 GX16-05PWRPCB 5 corner plug for device and Board
socket on cable 39969 GX16-05YC 5 socket on cable
corner socket for cable 205228 GX16-05YCR 5 corner socket for cable
socket on device 205229 GX16-05YW 5 socket on device
socket with flange on device 205230 GX16-05YWF2 5 socket with flange on device
socket with flange on device 205231 GX16-05YWF3 5 socket with flange on device
socket with flange on device 205232 GX16-05YWF4 5 socket with flange on device
kit: plug on cable+socket on device 205233 GX16-05PCN/YW 5 kit: plug on cable+socket on device
kit: plug into device socket on cable 205234 GX16-05PW/YC 5 kit: plug into device socket on cable
kit: plug on cable+socket on cable 59947 GX16-05PC/YC 5 kit: plug on cable+socket on cable
plug on cable 64644 GX16-06PC 6 plug on cable
plug to device 39970 GX16-06PW 6 plug to device
plug with flange to device 205235 GX16-06PWF2 6 plug with flange to device
plug with flange to device 205236 GX16-06PWF3 6 plug with flange to device
plug with flange to device 205237 GX16-06PWF4 6 plug with flange to device
corner plug for device and Board 205238 GX16-06PWRPCB 6 corner plug for device and Board
socket on cable 39971 GX16-06YC 6 socket on cable
corner socket for cable 205239 GX16-06YCR 6 corner socket for cable
socket on device 205240 GX16-06YW 6 socket on device
socket with flange on device 205241 GX16-06YWF2 6 socket with flange on device
socket with flange on device 205242 GX16-06YWF3 6 socket with flange on device
socket with flange on device 205243 GX16-06YWF4 6 socket with flange on device
kit: plug on cable+socket on device 205244 GX16-06PCN/YW 6 kit: plug on cable+socket on device
kit: plug into device socket on cable 205245 GX16-06PW/YC 6 kit: plug into device socket on cable
kit: plug on cable+socket on cable 205246 GX16-06PC/YC 6 kit: plug on cable+socket on cable
plug on cable 59949 GX16-07PC 7 plug on cable
plug to device 39954 GX16-07PW 7 plug to device
plug with flange to device 205247 GX16-07PWF2 7 plug with flange to device
plug with flange to device 205248 GX16-07PWF3 7 plug with flange to device
plug with flange to device 205249 GX16-07PWF4 7 plug with flange to device
corner plug for device and Board 205250 GX16-07PWRPCB 7 corner plug for device and Board
socket on cable 39955 GX16-07YC 7 socket on cable
corner socket for cable 205251 GX16-07YCR 7 corner socket for cable
socket on device 205252 GX16-07YW 7 socket on device
socket with flange on device 205253 GX16-07YWF2 7 socket with flange on device
socket with flange on device 205254 GX16-07YWF3 7 socket with flange on device
socket with flange on device 205255 GX16-07YWF4 7 socket with flange on device
kit: plug on cable+socket on device 205256 GX16-07PCN/YW 7 kit: plug on cable+socket on device
kit: plug into device socket on cable 205257 GX16-07PW/YC 7 kit: plug into device socket on cable
kit: plug on cable+socket on cable 205258 GX16-07PC/YC 7 kit: plug on cable+socket on cable
plug on cable 59950 GX16-08PC 8 plug on cable
plug to device 50295 GX16-08PW 8 plug to device
plug with flange to device 205259 GX16-08PWF2 8 plug with flange to device
plug with flange to device 205260 GX16-08PWF3 8 plug with flange to device
plug with flange to device 205261 GX16-08PWF4 8 plug with flange to device
corner plug for device and Board 205262 GX16-08PWRPCB 8 corner plug for device and Board
socket on cable 50294 GX16-08YC 8 socket on cable
corner socket for cable 205263 GX16-08YCR 8 corner socket for cable
socket on device 205689 GX16-08YW 8 socket on device
socket with flange on device 205735 GX16-08YWF2 8 socket with flange on device
socket with flange on device 205736 GX16-08YWF3 8 socket with flange on device
socket with flange on device 205737 GX16-08YWF4 8 socket with flange on device
kit: plug on cable+socket on device 205738 GX16-08PCN/YW 8 kit: plug on cable+socket on device
kit: plug into device socket on cable 205739 GX16-08PW/YC 8 kit: plug into device socket on cable
kit: plug on cable+socket on cable 205740 GX16-08PC/YC 8 kit: plug on cable+socket on cable
plug on cable 205741 GX16-09PC 9 plug on cable
plug to device 151579 GX16-09PW 9 plug to device
plug with flange to device 205742 GX16-09PWF2 9 plug with flange to device
plug with flange to device 205743 GX16-09PWF3 9 plug with flange to device
plug with flange to device 205744 GX16-09PWF4 9 plug with flange to device
corner plug for device and Board 205745 GX16-09PWRPCB 9 corner plug for device and Board
socket on cable 151580 GX16-09YC 9 socket on cable
corner socket for cable 205746 GX16-09YCR 9 corner socket for cable
socket on device 205747 GX16-09YW 9 socket on device
socket with flange on device 205748 GX16-09YWF2 9 socket with flange on device
socket with flange on device 205749 GX16-09YWF3 9 socket with flange on device
socket with flange on device 205750 GX16-09YWF4 9 socket with flange on device
kit: plug on cable+socket on device 205751 GX16-09PCN/YW 9 kit: plug on cable+socket on device
kit: plug into device socket on cable 205752 GX16-09PW/YC 9 kit: plug into device socket on cable
kit: plug on cable+socket on cable 205753 GX16-09PC/YC 9 kit: plug on cable+socket on cable
plug on cable 205754 GX16-10PC 10 plug on cable
plug to device 205755 GX16-10PW 10 plug to device
plug with flange to device 205756 GX16-10PWF2 10 plug with flange to device
plug with flange to device 205757 GX16-10PWF3 10 plug with flange to device
plug with flange to device 205792 GX16-10PWF4 10 plug with flange to device
corner plug for device and Board 205793 GX16-10PWRPCB 10 corner plug for device and Board
socket on cable 207289 GX16-10YC 10 socket on cable
corner socket for cable 207294 GX16-10YCR 10 corner socket for cable
socket on device 207295 GX16-10YW 10 socket on device
socket with flange on device 207296 GX16-10YWF2 10 socket with flange on device
socket with flange on device 207305 GX16-10YWF3 10 socket with flange on device
socket with flange on device 207306 GX16-10YWF4 10 socket with flange on device
kit: plug on cable+socket on device 207307 GX16-10PCN/YW 10 kit: plug on cable+socket on device
kit: plug into device socket on cable 207308 GX16-10PW/YC 10 kit: plug into device socket on cable
kit: plug on cable+socket on cable 207309 GX16-10PC/YC 10 kit: plug on cable+socket on cable
