Plastic & Hardware Electronic Products / Cable glands / Accessories /

Nylon Screw Plugs (Blind Plugs)

Nylon Screw Plugs (Blind Plugs)
Nylon Screw Plugs (Blind Plugs)
Nylon Screw Plugs (Blind Plugs)

Thread Type: Metric, PG and G (PF).

Material Data: Halogen-free Nylon PA 66 (Flammability UL 94V-2); Contact us for VO material.

IP Protection:
IP68 (when assembled with AVC's hard twist washer)
IP67 (when assembled without washer on the very plane surface).

Working Temp.: - 40°C to 105°C. Short-Term to 160°C.

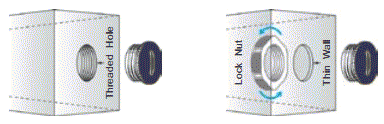

Application: IP protection for spare holes:
1. Polyamide Blind Plugs are used where existing threaded holes need to be closed.
2. Assembled with AVC's Lock Nuts for closing the holes without thread.


Thread Cat.No. Dimensions Std.
Pkg.
pcs
Sizes Black
RAL
9005
Light
Grey
RAL
7035
Silver
Grey
RAL 7001
A
mm
B
mm
M12x1.5 SPG-M12 B G SG 6.5 16 100
M16x1.5 SPG-M16 B G SG 8 20 100
M20x1.5 SPG-M20 B G SG 8 25 100
M25x1.5 SPG-M25 B G SG 8.5 30 100
M32x1.5 SPG-M32 B G SG 10 38 50
M40x1.5 SPG-M40 B G SG 13 47 50
M50x1.5 SPG-M50 B G SG 14 57 10
M63x1.5 SPG-M63 B G SG 15 70 10

PG7 SPG-PG7 B G SG 6.5 16 100
PG9 SPG-PG9 B G SG 6.5 19 100
PG11 SPG-PG11 B G SG 6.5 22.5 100
PG13.5 SPG-PG13.5 B G SG 7 25.2 100
PG16 SPG-PG16 B G SG 8 27.5 100
PG21 SPG-PG21 B G SG 9 34 100
PG29 SPG-PG29 B G SG 8.5 44.6 50
PG36 SPG-PG36 B G SG 11 55 50

G(PF) 1/4 SPG-PF13 B G SG 6.5 17 100
3/8 SPG-PF17 B G SG 8 20.5 100
1/2 SPG-PF21 B G SG 8 26 100
3/4 SPG-PF26 B G SG 10 32 100
1 SPG-PF33 B G SG 12 40 50
1 1/4 SPG-PF42 B G SG 13 49 50
