Plastic & Hardware Electronic Products / Cable glands / Corrugated Tubing Fittings /

Quick-Fit Corrugated Tubing Fittings

Quick-Fit Corrugated Tubing Fittings
Quick-Fit Corrugated Tubing Fittings

Thread Type: Metric and PG.

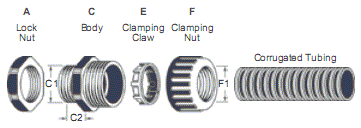

Material Data: Halogen-free Nylon PA 66 (Flammability UL 94V-2) for A.C.E.F parts.
Our black fittings are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.
UV (Irradiance 340 nm) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.

IP Protection: IP54.

Working Temp.: - 40°C to 105°C. Short-Term to 160°C.

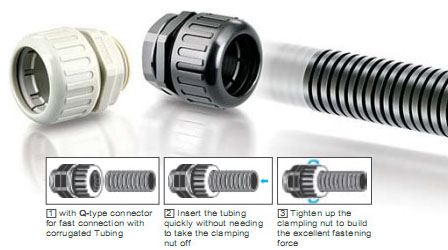

Application: From the widest range of AVC polyamide tubing fittings, the quick-fit type fittings contain a very special compression design with a compression- type Nut and Clamping Claw to provide a fast & safe connection with the tubings and to get an excellent result of the pullout strength to be the best balanced performers for cable protection system. They are widely used for outdoor / indoor applications on any machines and equipments.

* The Lock Nut is included in each Fitting, this saves additional ordering work and storage spaces.

Thread Cat.No. Max.
Joint
F1
mm		 Accommodated
AVC Tubings		 Thread
O. D.
C1
mm		 Panel
Mounting
Hole
mm		 Thread
Length
C2
mm		 Std.
Pkg.
pcs
Sizes Black
RAL
9005		 Light
Grey
RAL
7035		 Silver
Grey
RAL
7001		 NYLON HDPE
Short
Thread		 M16x1.5 N-MGQ16-10-ST B G SG 10 (NGN-07B) 1/4" (NFE-02B) 1/4" 16 16-16.3 10 50
N-MGQ16-13-ST B G SG 13 (NGN-10B) 5/16" (NFE-025B) 5/16" 16 16-16.3 10 50
N-MGQ16-15-ST B G SG 16 (NGN-12B) 3/8" - - 16 16-16.3 10 50
N-MGQ16-18-ST B G SG 18.3 (NGN-14B) 3/8" (NFE-03B) 3/8" 16 16-16.3 10 50
M20x1.5 N-MGQ20-13-ST B G SG 13 (NGN-10B) 5/16" - - 20 20-20.3 10 50
N-MGQ20-15-ST B G SG 16 (NGN-12B) 3/8" - - 20 20-20.3 10 50
N-MGQ20-18-ST B G SG 18.3 (NGN-14B) 3/8" (NFE-03B) 3/8" 20 20-20.3 10 50
N-MGQ20-21-ST B G SG 22 (NGN-17B) 1/2" (NFE-04B) 1/2" 20 20-20.3 10 50
M25x1.5 N-MGQ25-15-ST B G SG 16 (NGN-12B) 3/8" - - 25 25-25.4 12 50
N-MGQ25-18-ST B G SG 18.3 (NGN-14B) 3/8" (NFE-03B) 3/8" 25 25-25.4 12 50
N-MGQ25-21-ST B G SG 22 (NGN-17B) 1/2" (NFE-04B) 1/2" 25 25-25.4 10 50
N-MGQ25-26-ST B G SG 26.5 (NGN-22B) 3/4" (NFE-06B) 3/4" 25 25-25.4 10 50
N-MGQ25-28-ST B G SG 28.5 (NGN-23B) 3/4" - - 25 25-25.4 10 50
M32x1.5 N-MGQ32-21-ST B G SG 22 (NGN-17B) 1/2" (NFE-04B) 1/2" 32 32-32.4 12 10
N-MGQ32-34-ST B G SG 34.5 (NGN-28B) 1" (NFE-08B) 1" 32 32-32.4 10 10

Long
Thread		 M12x1.5 N-MGQ12-10 B G SG 10 (NGN-07B) 1/4" (NFE-02B) 1/4" 12 12-12.3 9 50
M16x1.5 N-MGQ16-13 B G SG 13 (NGN-10B) 5/16" (NFE-025B) 5/16" 16 16 -16.3 15 50
N-MGQ16-15 B G SG 16 (NGN-12B) 3/8" - - 16 16-16.3 15 50
N-MGQ16-18 B G SG 18.3 (NGN-14B) 3/8" (NFE-03B) 3/8" 16 16-16.3 15 50
M20x1.5 N-MGQ20-15 B G SG 16 (NGN-12B) 3/8" - - 20 20-20.3 15 50
N-MGQ20-18 B G SG 18.3 (NGN-14B) 3/8" (NFE-03B) 3/8" 20 20-20.3 15 50
N-MGQ20-21 B G SG 22 (NGN-17B) 1/2" (NFE-04B) 1/2" 20 20-20.3 15 50
M25x1.5 N-MGQ25-21 B G SG 22 (NGN-17B) 1/2" (NFE-04B) 1/2" 25 25-25.4 15 50
N-MGQ25-26 B G SG 26.5 (NGN-22B) 3/4" (NFE-06B) 3/4" 25 25-25.4 15 50
N-MGQ25-28 B G SG 28.5 (NGN-23B) 3/4" - - 25 25-25.4 15 50
M32x1.5 N-MGQ32-34 B G SG 34.5 (NGN-28B) 1" (NFE-08B) - 32 32-32.4 15 10
M40x1.5 N-MGQ40-42 B G SG 43 (NGN-36B) 1 1/4" (NFE-10B) 1 1/4" 40 40-40.4 15 10
M50x1.5 N-MGQ50-48 B G SG 48 (NGN-40B) 1 1/2" (NFE-12B) 1 1/2" 50 50-50.4 22 10
M63x1.5 N-MGQ63-54 B G SG 55 (NGN-47B) 2" - - 63 63-63.4 25 10
N-MGQ63-60 B G SG 61 (NGN-52B) 2" (NFE-16B) 2" 63 63-63.4 25 10
M90x2 N-MGN90-88 B G SG 90 (NGN-72B) 3" (NFE-24B) 3" 90 90-91 25 2

PG 7 N-PGQ7-10 B G SG 10 (NGN-07B) 1/4" (NFE-02B) 1/4" 12.5 12.5-12.8 8.5 50
PG 9 N-PGQ9-10 B G SG 10 (NGN-07B) 1/4" (NFE-02B) 1/4" 15.2 15.2-15.5 9 50
N-PGQ9-13 B G SG 13 (NGN-10B) 5/16" (NFE-025B) 5/16" 15.2 15.2-15.5 10 50
PG 11 N-PGQ11-13 B G SG 13 (NGN-10B) 5/16" (NFE-025B) 5/16" 18.6 18.6-18.9 10 50
N-PGQ11-15 B G SG 16 (NGN-12B) 3/8" - - 18.6 18.6-18.9 10 50
N-PGQ11-18 B G SG 18.3 (NGN-14B) 3/8" (NFE-03B) 3/8" 18.6 18.6-18.9 10 50
PG 13.5 N-PGQ13.5-15 B G SG 16 (NGN-12B) 3/8" - - 20.4 20.4-20.7 10 50
N-PGQ13.5-18 B G SG 18.3 (NGN-14B) 3/8" (NFE-03B) 3/8" 20.4 20.4-20.7 10 50
PG 16 N-PGQ16-15 B G SG 16 (NGN-12B) 3/8" - - 22.5 22.5-22.8 11 50
N-PGQ16-18 B G SG 18.3 (NGN-146) 3/8" (NFE-038) 3/8" 22.5 22.5-22.8 11 50
N-PGQ16-21 B G SG 22 (NGN-17B) 1/2" (NFE-04B) 1/2" 22.5 22.5-22.8 10 50
PG 21 N-PGQ21-21 B G SG 22 (NGN-17B) 1/2" (NFE-04B) 1/2" 28.3 28.3-28.7 12.5 50
N-PGQ21-26 B G SG 26.5 (NGN-22B) 3/4" (NFE-06B) 3/4" 28.3 28.3-28.7 12 50
N-PGQ21-28 B G SG 28.5 (NGN-23B) 3/4" - - 28.3 28.3-28.7 12 50
PG 29 N-PGQ29-34 B G SG 34.5 (NGN-28B) 1" (NFE-08B) 1" 37 37-37.4 12 10
PG 36 N-PGQ36-42 B G SG 43 (NGN-36B) 1 1/4" (NFE-10B) 1 1/4" 47 47-47.4 13 10
PG 48 N-PGQ48-54 B G SG 55 (NGN-47B) 2" - - 59.3 59.3-59.7 16 10
N-PGQ48-60 B G SG 61 (NGN-52B) 2" (NFE-16B) 2" 59.3 59.3-59.7 16 10
