Plastic & Hardware Electronic Products / Cable glands / Corrugated Tubing Fittings /

Acid & Alkali Resistant Quick-Fit Corrugated Tubing Fittings

Acid & Alkali Resistant Quick-Fit Corrugated Tubing Fittings
Acid & Alkali Resistant Quick-Fit Corrugated Tubing Fittings

Thread Type: Metric and PG.

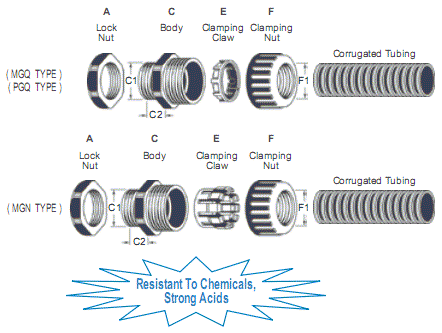

Material Data: Acid /Alkali proof thermoplastic polymer for A.C.E.F parts.

IP Protection: IP54.

Working Temp.: - 40°C to 100°C.

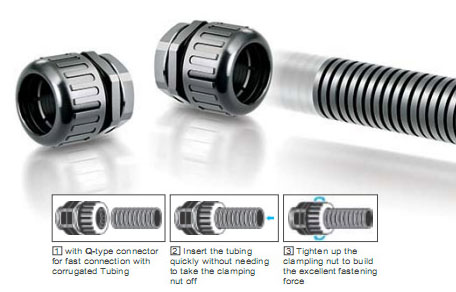

Application: The acid / alkali proof tubing fitting is specailly designed to prevent damage from strong acid corrosion of wet manufacturing processes such as in the PCB, FPD, Photovoltaic, Chemical and Pharmaceutical industry, etc. These refined fittings contain AVC's special quick-fit clamping design to provide fast installation, vibration proof and pullout-strength effects with anticorrosive performance for the entire AVC acid / alkali resistant
cable protecting tubings.

* Contact us for ordering other extended gland sizes shown on category 260-1010 from this (AVC) catalogue.
* For product property & chemical resistance informations, please click here for reference.
* The Lock Nut is included in each Fitting, this saves additional ordering work and storage spaces.


Thread Cat.No. Max.
Joint
F1
mm
Accommodated
AVC Tubings
Thread
O. D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Std.
Pkg.
pcs
Sizes Black
RAL
9005
Acid & Alkali Resistant
M16x1.5 N-MGQ16-18-ST-AA B 18.3 (NGP-14B-AA) 3/8" 16 16-16.3 10 50
M20x1.5 N-MGQ20-18-ST-AA B 18.3 (NGP-14B-AA) 3/8" 20 20-20.3 10 50
N-MGQ20-21-ST-AA B 22 (NGP-17B-AA) 1/2" 20 20-20.3 10 50
M25x1.5 N-MGQ25-21-ST-AA B 22 (NGP-17B-AA) 1/2" 25 25-25.4 10 50
N-MGQ25-26-ST-AA B 26.5 (NGP-22B-AA) 3/4" 25 25-25.4 10 50

PG11 N-PGQ11-18-AA B 18.3 (NGP-14B-AA) 3/8" 18.6 18.6-18.9 10 50
PG13.5 N-PGQ13.5-18-AA B 18.3 (NGP-14B-AA) 3/8" 20.4 20.4-20.7 10 50
PG16 N-PGQ16-21-AA B 22 (NGP-17B-AA) 1/2" 22.5 22.5-22.8 10 50
PG21 N-PGQ21-21-AA B 22 (NGP-17B-AA) 1/2" 28.3 28.3-28.7 12.5 50
N-PGQ21-26-AA B 26.5 (NGP-22B-AA) 3/4" 28.3 28.3-28.7 12 50

G(PF) 1/2 N-FGQ21-18-AA B 18.3 (NGP-14B-AA) 3/8" 20.955 21-21.2 10 50
N-FGQ21-21-AA B 22 (NGP-17B-AA) 1/2" 20.955 21-21.2 10 50
3/4 N-FGQ26-21-AA B 22 (NGP-17B-AA) 1/2" 26.441 26.5-26.8 12.5 50
N-FGQ26-26-AA B 26.5 (NGP-22B-AA) 3/4" 26.441 26.5-26.8 12 50
