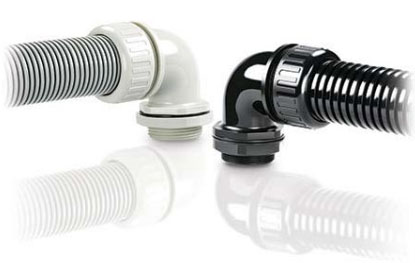

90° Elbow Quick-Fit Corrugated Tubing Fittings

90° Elbow Quick-Fit Corrugated Tubing Fittings
90° Elbow Quick-Fit Corrugated Tubing Fittings

Thread Type: Metric, PG and G(PF).

Material Data: Halogen-free Nylon PA 66 (Flammability UL 94V-2) for A.C.E.F parts.
Our black fittings are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.
UV (Irradiance 340 nm) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.

IP Protection: IP54.

Working Temp.: - 40°C to 105°C. Short-Term to 160°C.

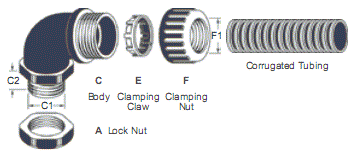

Application: When tubings should be routed in parallel to the housing wall, these Elbow Fittings are the right connectors to connect with them and to protect cable conduits from sharp bending. In addtion, this Fitting with the AVC's special compression clamping design also provide quick-fit, pullout strength and vibration proof functions offering the excellent cost efficient on the cable protection system and suitably applied to any machines, devices and equipments.

* The Lock Nut is included in each Fitting, this saves additional ordering work and storage spaces.


Thread Cat.No. Max.
Joint
F1
mm
Accommodated
AVC Tubings
Thread
O. D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Std.
Pkg.
pcs
Sizes Black
RAL
9005
Light
Grey
RAL
7035
Silver
Grey
RAL
7001
NYLON HDPE
M16x1.5 N-MGQ16-E-13-ST B G SG 13 (NGN-10B) 5/16" (NFE-025B) 5/16" 16 16-16.3 12 10
N.MGQ16-E-15 B G SG 16 (NGN-12B) 3/8" - - 16 16-16.3 15 10
N-MGQ16-E-18 B G SG 18.3 (NGN-14B) 3/8" (NFE-03B) 3/8" 16 16-16.3 15 10
M20x1.5 N-MGQ20-E-15 B G SG 16 (NGN-12B) 3/8" - - 20 20-20.3 15 10
N-MGQ20-E-18 B G SG 18.3 (NGN-14B) 3/8" (NFE-03B) 3/8" 20 20-20.3 15 10
N-MGQ20-E-21 B G SG 22 (NGN-17B) 1/2" (NFE-04B) 1/2" 20 20-20.3 15 10
M25x1.5 N-MGQ25-E-26 B G SG 26.5 (NGN-22B) 3/4" (NFE-06B) 3/4" 25 25-25.4 15 10
N-MGQ25-E-28 B G SG 28.5 (NGN-23B) 3/4" - - 25 25-25.4 15 10
M32x1.5 N-MGQ32-E-34 B G SG 34.5 (NGN-28B) 1" (NFE-08B) 1" 32 32-32.4 15 10
M40x1.5 N-MGQ40-E-42 B G SG 43 (NGN-36B) 1 1/4" (NFE-10B) 1 1/4" 40 40-40.4 20 10

PG16 N-PGQ16-E-15 B G SG 16 (NGN-12B) 3/8" - - 22.5 22.5-22.8 12 10
N-PGQ16-E-18 B G SG 18.3 (NGN-14B) 3/8" (NFE-03B) 3/8" 22.5 22.5-22.8 12 10

G(PF) 1/2 N-FGQ21-E-15 B G SG 16 (NGN-12B) 3/8" - - 20.955 21-21.2 12 10
N-FGQ21-E-18 B G SG 18.3 (NGN-14B) 3/8" (NFE-03B) 3/8" 20.955 21-21.2 12 10
N-FGQ21-E-21 B G SG 22 (NGN-17B) 1/2" (NFE-04B) 1/2" 20.955 21-21.2 15 10
3/4 N-FGQ26-E-26 B G SG 26.5 (NGN-22B) 3/4" (NFE-06B) 3/4" 26.441 26.5-26.8 15 10
N-FGQ26-E-28 B G SG 28.5 (NGN-23B) 3/4" - - 26.441 26.5-26.8 15 10
1 N-FGQ33-E-34 B G SG 34.5 (NGN-28B) 1" (NFE-08B) 1" 33.249 33.3-33.6 15 10
1 1/4 N-FGQ42-E-42 B G SG 43 (NGN-36B) 1 1/4" (NFE-10B) 1 1/4" 41.91 42-42.3 20 10
