Plastic & Hardware Electronic Products / Cable glands / Corrugated Tubing Fittings /

Powerful Watertight Corrugated Tubing Fittings

Powerful Watertight Corrugated Tubing Fittings
Powerful Watertight Corrugated Tubing Fittings

Thread Type: Metric and PG.

Material Data: Halogen-free Nylon PA 66 (Flammability UL 94V-2) for A.C.F parts.
Weather-resistant EPDM rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications)
Our black fittings are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.
UV (Irradiance 340 nm) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.

IP Protection: IP68.

Working Temp.: - 40°C to 105°C. Short-Term to 160°C.

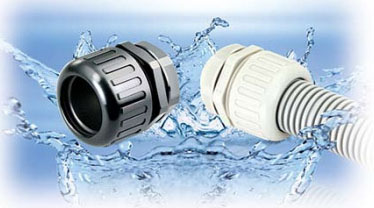

Application: With AVC's special sealing design containing an unique integrated insert, the Powerful Watertight Fittings build the best tightening power by a very high & active compression force to resist the ingress of high pressure water jet from any angle which can provide 100% dynamic waterproof and airtight performance over the widest range of corrugated tubings (O.D. Ø10 mm - Ø89 mm). These powerful watertight fittings are widely applied to resist water impact or immersion as a tough cable protection system for any machines, devices and equipments with the very specific demands.

* The Washer (Gasket) and Lock Nut are all included in each Watertight Fitting, this saves additional ordering work and storage spaces.
* Contact us for specially ordering AVC Water / Oil tight Tubing Fittings with NBR or Viton rubber material for specific oil resistant applications. (MOQ is required).
* Sizes with special marks * below are the special products which application, inventory and pricing please contact service personnel.

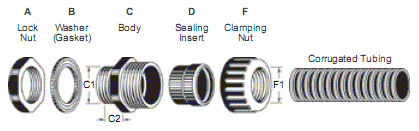

Thread Cat.No. Max.
Joint
F1
mm		 Accommodated
AVC Tubings		 Thread
O. D.
C1
mm		 Panel
Mounting
Hole
mm		 Thread
Length
C2
mm		 Std.
Pkg.
pcs
Sizes Black
RAL
9005		 Light
Grey
RAL
7035		 Silver
Grey
RAL
7001		 NYLON HDPE
Short
Thread		 M16x1.5 N-MGW16-10-ST B G SG 10 (NGN07B) 1/4" (NFE-02B) 1/4" 16 16-16.3 10 50
N-MGW16-13-ST B G SG 13 (NGN10B) 5/16" (NFE-025B) 5/16" 16 16-16.3 10 50
N-MGW16-15-ST B G SG 16 (NGN12B) 3/8" - - 16 16-16.3 10 50
N-MGW16-18-ST B G SG 18.3 (NGN14B) 3/8" (NFE-03B) 3/8" 16 16-16.3 10 50
M20x1.5 N-MGW20-13-ST B G SG 13 (NGN10B) 5/16" - - 20 20-20.3 10 50
N-MGW20-15-ST B G SG 16 (NGN12B) 3/8" - - 20 20-20.3 10 50
N-MGW20-18-ST B G SG 18.3 (NGN14B) 3/8" (NFE-03B) 3/8" 20 20-20.3 10 50
N-MGW20-21-ST B G SG 22 (NGN17B) 1/2" (NFE-04B) 1/2" 20 20-20.3 10 50
M25x1.5 N-MGW25-15-ST B G SG 16 (NGN12B) 3/8" - - 25 25-25.4 12 50
N-MGW25-18-ST B G SG 18.3 (NGN14B) 3/8" (NFE-03B) 3/8" 25 25-25.4 12 50
N-MGW25-21-ST B G SG 22 (NGN17B) 1/2" (NFE-048) 1/2" 25 25-25.4 10 50
N-MGW25-26-ST B G SG 26.5 (NGN22B) 3/4" (NFE-068) 3/4" 25 25-25.4 10 50
N-MGW25-28-ST B G SG 28.5 (NGN23B) 3/4" - - 25 25-25.4 10 50
M32x1.5 N-MGW32-21-ST B G SG 22 (NGN17B) 1/2" (NFE-04B) 1/2" 32 32-32.4 12 10
N-MGW32-34-ST B G SG 34.5 (NGN28B) 1" (NFE-08B) 1" 32 32-32.4 10 10

Long
Thread		 M12x1.5 N-MGW12-10 B G SG 10 (NGN07B) 1/4" (NFE-02B) 1/4" 12 12-12.3 9 50
M16x1.5 N-MGW16-13 B G SG 13 (NGN10B) 5/16" (NFE-025B) 5/16" 16 16-16.3 15 50
N-MGW16-15 B G SG 16 (NGN12B) 3/8" - - 16 16-16.3 15 50
N-MGW16-18 B G SG 18.3 (NGN14B) 3/8" (NFE-03B) 3/8" 16 16-16.3 15 50
M20x1.5 N-MGW20-15 B G SG 16 (NGN12B) 3/8" - - 20 20-20.3 15 50
N-MGW20-18 B G SG 18.3 (NGN14B) 3/8" (NFE-03B) 3/8" 20 20-20.3 15 50
N-MGW20-21 B G SG 22 (NGN17B) 1/2" (NFE-04B) 1/2" 20 20-20.3 15 50
M25x1.5 N-MGW25-21 B G SG 22 (NGN17B) 1/2" (NFE-04B) 1/2" 25 25-25.4 15 50
N-MGW25-26 B G SG 26.5 (NGN22B) 3/4" (NFE-06B) 3/4" 25 25-25.4 15 50
N-MGW25-28 B G SG 28.5 (NGN23B) 3/4" - - 25 25-25.4 15 50
M32x1.5 N-MGW32-34 B G SG 34.5 (NGN28B) 1" (NFE-08B) 1" 32 32-32.4 15 10
M40x1.5 N-MGW40-42 B G SG 43 (NGN36B) 1 1/4" (NFE-1OB) 1 1/4" 40 40-40.4 15 10
M50x1.5 N-MGW50-48 B G SG 48 (NGN40B) 1 1/2" (NFE-12B) 1 1/2" 50 50-50.4 22 10
M63x1.5 N-MGW63-54 B G SG 55 (NGN47B) 2" - - 63 63-63.4 25 10
N-MGW63-60 B G SG 61 (NGN52B) 2" (NFE-16B) 2" 63 63-63.4 25 10
M90x2 N-MGW90-88 B G SG 90 (NGN72B) 3" (NFE-24B) 3" 90 90-91 25 2

PG7 N-PGW7-10 B G SG 10 (NGN07B) 1/4" (NFE-02B) 1/4" 12.5 12.5-12.8 8.5 50
PG9 N-PGW9-10 B G SG 10 (NGN-07B) 1/4" (NFE-02B) 1/4" 15.2 15.2-15.5 9 50
N-PGW9-13 B G SG 13 (NGN10B) 5/16" (NFE-025B) 5/16" 15.2 15.2-15.5 10 50
PG11 N-PGW11-13 B G SG 13 (NGN10B) 5/16" (NFE-025B) 5/16" 18.6 18.6-18.9 10 50
N-PGW11-15 B G SG 16 (NGN12B) 3/8" - - 18.6 18.6-18.9 10 50
N-PGW11-18 B G SG 18.3 (NGN14B) 3/8" (NFE-03B) 3/8" 18.6 18.6~18.9 10 50
PG13.5 N-PGW13.5-15 B G SG 16 (NGN12B) 3/8" - - 20.4 20.4-20.7 10 50
N-PGW13.5-18 B G SG 18.3 (NGN14B) 3/8" (NFE-03B) 3/8" 20.4 20.4-20.7 10 50
PG16 N-PGW16-15 B G SG 16 (NGN12B) 3/8" - - 22.5 22.5-22.8 11 50
N-PGW16-18 B G SG 18.3 (NGN14B) 3/8" (NFE-03B) 3/8" 22.5 22.5-22.8 11 50
N-PGW16-21 B G SG 22 (NGN17B) 1/2" (NFE-04B) 1/2" 22.5 22.5-22.8 10 50
PG21 N-PGW21-21 B G SG 22 (NGN17B) 1/2" (NFE-04B) 1/2" 28.3 28.3-28.7 12.5 50
N-PGW21-26 B G SG 26.5 (NGN22B) 3/4" (NFE-06B) 3/4" 28.3 28.3-28.7 12 50
N-PGW21-28 B G SG 28.5 (NGN23B) 3/4" - - 28.3 28.3-28.7 12 50
PG29 N-PGW29-34 B G SG 34.5 (NGN28B) 1" (NFE-08B) 1" 37 37-37.4 12 10
PG36 N-PGW36-42 B G SG 43 (NGN-36B) 1 1/4" (NFE-1OB) 1 1/4" 47 47-47.4 13 10
PG48 N-PGW48-54 B G SG 55 (NGN47B) 2" - - 59.3 59.3-59.7 16 10
N-PGW48-60 B G SG 61 (NGN52B) 2" (NFE-16B) 2" 59.3 59.3-59.7 16 10
