Plastic & Hardware Electronic Products / Cable glands / Corrugated Tubing Fittings /

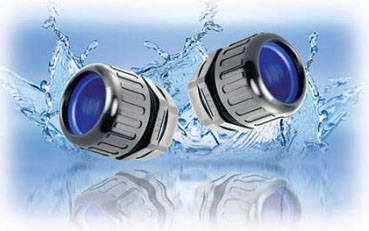

Acid & Alkali Resistant Powerful Watertight Corrugated Tubing Fittings

Acid & Alkali Resistant Powerful Watertight Corrugated Tubing Fittings
Acid & Alkali Resistant Powerful Watertight Corrugated Tubing Fittings

Thread Type: Metric, PG, G ( PF )and NPT.

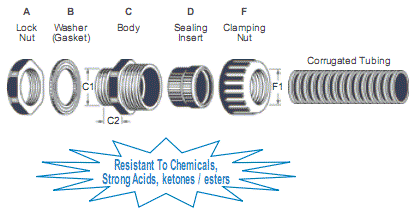

Material Data: Acid / Alkali proof thermoplastic polymer for A.C.F parts.
Acid / Alkali proof rubber for B.D parts.

IP Protection: IP68.

Working Temp.: - 40°C to 100°C.

Application: The acid / alkali proof watertight fitting is specailly designed to prevent damage from strong acid corrosion of the wet manufacturing processes such as in the PCB, FPD, Photovoltaic, Chemical and Pharmaceutical industry, etc. The fitting contains an unique integrated insert and a compressing nut to provide a best tightened power and an excellent pullout strength by a very high & active compressing force to resist the ingress of high pressure water or chemical ingredients from any angle, which can provide 100% dynamic waterproof and airtight performance. AVC's acid / alkali proof cable protecting tubings to be the best watertight performer for the cable protection system that acid / alkali proof is demanded.

* Contact us for ordering other extended gland sizes shown on category 260-3010 from this (AVC) catalogue.
* For product property & chemical resistance informations, please click here for reference.
* The Washer (Gasket) and Lock Nut are all included in each Watertight Fitting, this saves additional ordering work and storage spaces.


Thread Cat.No. Max.
Joint
F1
mm
Accommodated
AVC Tubings
Thread
O. D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Std.
Pkg.
pcs
Sizes Black
RAL
9005
Acid & Alkali Resistant
M16x1.5 N-MGW16-18-ST-AA B 18.3 (NGP-14B-AA) 3/8" 16 16-16.3 10 50
M20x1.5 N-MGW20-18-ST-AA B 18.3 (NGP-14B-AA) 3/8" 20 20-20.3 10 50
N-MGW20-21-ST-AA B 22 (NGP-17B-AA) 1/2" 20 20~20.3 10 50
M25x1.5 N-MGW25-21-ST-AA B 22 (NGP-17B-AA) 1/2" 25 25-25.4 10 50
N-MGW25-26-ST-AA B 26.5 (NGP-22B-AA) 3/4" 25 25-25.4 10 50

PG11 N-PGW11-18-AA B 18.3 (NGP-14B-AA) 3/8" 18.6 18.6-18.9 10 50
PG13.5 N-PGW13.5-18-AA B 18.3 (NGP-14B-AA) 3/8" 20.4 20.4-20.7 10 50
PG16 N-PGW16-21-AA B 22 (NGP-17B-AA) 1/2" 22.5 22.5-22.8 10 50
PG21 N-PGW21-21-AA B 22 (NGP-17B-AA) 1/2" 28.3 28.3-28.7 12.5 50
N-PGW21-26-AA B 26.5 (NGP-22B-AA) 3/4" 28.3 28.3-28.7 12 50

G(PF) 1/2 N-FGW21-18-AA B 18.3 (NGP-14B-AA) 3/8" 20.955 21-21.2 10 50
N-FGW21-21-AA B 22 (NGP-17B-AA) 1/2" 20.955 21-21.2 10 50
3/4 N-FGW26-21-AA B 22 (NGP-17B-AA) 1/2" 26.441 26.5-26.8 12.5 50
N-FGW26-26-AA B 26.5 (NGP-22B-AA) 3/4" 26.441 26.5-26.8 12 50
