Plastic & Hardware Electronic Products / Cable glands / Corrugated Tubing Fittings /

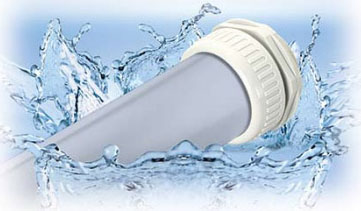

Watertight Fittings For Any Round & Rigid Pipes

Watertight Fittings For Any Round & Rigid Pipes
Watertight Fittings For Any Round & Rigid Pipes

Thread Type: Metric and G(PF).

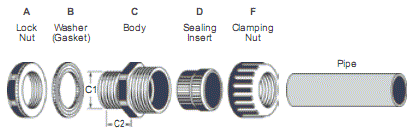

Material Data: Halogen-free Nylon PA 66 (Flammability UL 94V-2) for A.C.F parts.
Weather-resistant EPDM rubbers for B.D parts.
Our black fittings are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.
UV (Irradiance 340 nm) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.

IP Protection: IP68.

Working Temp.: - 40°C to 105°C. Short-Term to 160°C.

Application: With AVC's special compression design by an unique integrated insert, this Fitting provides watertight or sealing solution on the rigid-round pipes for an wide applications.

* The Washer (Gasket) and Lock Nut are all included in each Watertight Fitting, this saves additional ordering work and storage spaces.
* Contact us for specially ordering AVC Water / Oil tight Pipe Fittings with NBR or Viton rubber material for specific oil resistant applications. (MOQ is required).


Thread Cat.No. Accommodated
Pipe
Sizes
Thread
O. D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Std.
Pkg.
pcs
Sizes Black
RAL
9005
Light
Grey
RAL
7035
M50x1.5 R-MGW50-10 B G 1 1/4" 50 50-50.4 22 10
R-MGW50-12 B G 1 1/2" 50 50-50.4 22 10
M63x1.5 R-MGW63-12 B G 1 1/2" 63 63-63.4 25 10
R-MGW63-16 B G 2" 63 63-63.4 25 10
M90x2 R-MGW90-24 B G 3" 90 90-91 25 2

G(PF) 1 1/2 R-FGW48-10 B G 1 1/4" 47.803 48-48.4 20 10
R-FGW48-12 B G 1 1/2" 47.803 48-48.4 20 10
2 R-FGW60-12 B G 1 1/2" 59.614 60-60.4 20 10
R-FGW60-16 B G 2" 59.614 60-60.4 20 10
3 R-FGW88-24 B G 3" 87.884 88-89 25 2
