Nylon Ferrules For Convoluted Conduits

Nylon Ferrules For Convoluted Conduits
Nylon Ferrules For Convoluted Conduits

Material Data: Halogen-free Nylon PA 66.

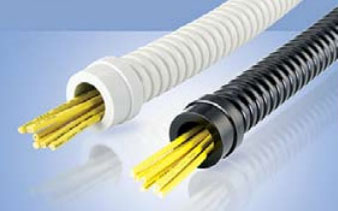

Application: The refined polyamide ferrules are designed to protect cables from contacting the sharp edged conduit. AVC's high-grade ferrules have the best performance in chemical, oil, rust and weather resistance, which are suitable for the constructions of machineries and installations of equipments.


Cat.No. For
Sizes
Dimensions Std.
Pkg.
pcs
Sizes Black
RAL
9005
Light
Grey
RAL
7035
Silver
Grey
RAL
7001

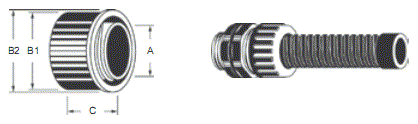

A
mm
B1
mm
B2
mm
C
mm
S-FG02.5 B G SG 5/16" 9.2 20 20.5 20 50
S-FG03 B G SG 3/8" 10.8 20 20.5 21 50
S-FG04 B G SG 1/2" 14.3 25.4 27.5 22 50
S-FG06 B G SG 3/4" 18 30.5 33 24 50
S-FG08 B G SG 1" 23.7 36.5 39.5 28 50
S-FG10 B G SG 1 1/4" 32 45 48 33 10
S-FG12 B G SG 1 1/2" 36 51.6 54.5 36 10
S-FG16 B G SG 2" 49 64.5 67.5 35 10
S-FG24 B G SG 3" 73 94 98.7 48 2
