Metal Ferrules For Convoluted Conduits

Metal Ferrules For Convoluted Conduits
Metal Ferrules For Convoluted Conduits

Material Data: Galvanized metal.

Application: In order to protect cables from contacting the sharp edged conduit, the metal ferrules are designed to fit the cut edges of the metal conduits that they do not need to be connected with the fittings.


  For
Sizes

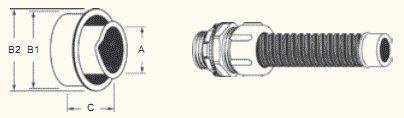

Dimensions Std.
Pkg.
pcs
Cat.No. A
mm
B1
mm
B2
mm
C
mm
S-FM02 1/4" 7.3 13 14.9 11 10
S-FM02.5 5/16" 9.3 16.5 16.7 14.3 10
S-FM03 3/8" 11 19.5 20.9 16.9 10
S-FM04 1/2" 14.5 23 24.8 18.2 10
S-FM06 3/4" 19.5 28.1 30.5 18 10
S-FM08 1" 24.5 35.5 37 22.5 10
S-FM10 1 1/4" 33 45 48.6 24.5 5
S-FM12 1 1/2" 38 50.5 53 26.5 5
S-FM16 2" 49 62 65 32 5
S-FM20 2 1/2" 59.5 75 80.6 38.5 1
S-FM24 3" 75 91 96 41.5 1
S-FM32 4" 99 117 121.7 46 1
