Plastic & Hardware Electronic Products / Cable glands / Metal Conduits & Fittings /

Zinc Fittings For Convoluted Metal Conduits

Thread Type: Metric, PG and G(PF).

Material Data:
FZS: Zinc Alloy for A.C.F parts, Polypropylene for B.E2 parts, Galvanized metal for E1 part.
MZS/PZS: Brass Alloy for C part, Zinc Alloy for F part, Rubber for B part, Galvanized metal for E1 part, PVC for E2 part.

Application: Zinc Alloy Conduit Fittings provide high impact functions, which are connected to the convoluted conduits to protect cables in the applications of many industries.

* The Washer (Gasket) and Lock Nut are all included in a single pack, this saves additional ordering work and storage locations.

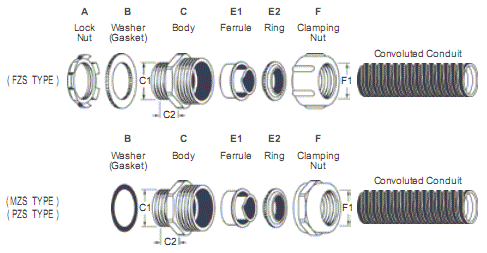

Thread		Cat.No.	Max. Joint F1 mm	Accommodated AVC Conduits		Thread O. D. C1 mm	Panel Mounting Hole mm	Thread Length C2 mm	Std. Pkg. pcs
G(PF)	1/4	S-FZS14-13	12	(S-J02B)	1/4"	13.6	13.6-13.9	8.2	10
	1/4	S-FZS14-15	15.2	(S-J02.5B)	5/16"	13.6	13.6-13.9	8.2	10
	1/2	S-FZS21-18	18.5	(S-J03B)	3/8"	20.9	20.9-21.4	10.8	10
	1/2	S-FZS21-21	23.5	(S-J04B)	1/2"	20.9	20.9-21.4	11.2	10
	3/4	S-FZS26-26	28.5	(S-J06B)	3/4"	26.4	26.4-26.9	12.5	10
	1	S-FZS33-34	35.5	(S-J08B)	1"	33.2	33.2-33.7	14	10
	1 1/4	S-FZS42-42	*44	(S-J10B)	1 1/4"	41.9	41.9-42.4	15.8	5
	1 1/2	S-FZS48-48	49.8	(S-J12B)	1 1/2"	47.8	47.8-48.3	17.5	5
	2	S-FZS60-60	61.8	(S-J16B)	2"	59.6	59.6-60.1	19.5	5
	2 1/2	S-FZS75-75	75	(S-J20B)	2 1/2"	75.1	75.1-75.6	21.3	1
	3	S-FZS88-88	92	(S-J24B)	3"	87.8	87.8-88.3	23.6	1
	4	S-FZS113-113	117	(S-J32B)	4"	113	113-113.5	28.8	1

M16x1.5		S-MZS16-18	18.5	(S-J03B)	3/8"	16	16-16.3	10	10
M20x1.5		S-MZS20-18	18.5	(S-J03B)	3/8"	20	20-20.3	10	10
M20x1.5		S-MZS20-21	23.5	(S-J04B)	1/2"	20	20-20.3	10	10
M25x1.5		S-MZS25-26	28.5	(S-J06B)	3/4"	25	25-25.4	10	10
M32x1.5		S-MZS32-34	35.5	(S-J08B)	1"	32	32-32.4	10	10

PG11		S-PZS11-18	18.5	(S-J03B)	3/8"	18.6	18.6-18.9	9	10
PG13.5		S-PZS13.5-21	23.5	(S-J04B)	1/2"	20.4	20.4-20.7	9	10
PG16		S-PZS16-21	23.5	(S-J04B)	1/2"	22.5	22.5-22.8	9	10
PG21		S-PZS21-26	28.5	(S-J06B)	3/4"	28.3	28.3-28.7	9	10
PG29		S-PZS29-34	35.5	(S-J08B)	1"	37	37-37.4	11	10
