90° Elbow Zinc Fittings For Convoluted Metal Conduits

90° Elbow Zinc Fittings For Convoluted Metal Conduits
90° Elbow Zinc Fittings For Convoluted Metal Conduits

Thread Type: G(PF).

Material Data: Zinc Alloy for A.C.F parts, Polypropylene for B.E2 parts, Galvanized metal for E1 part.

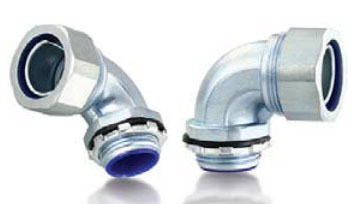

Application: 90° Elbow Zinc Alloy Conduit Fittings are used as the conduits should be routed in parallel to the housing wall, which provide high impact functions to protect cables in the applications of many industries.

* The Washer (Gasket) and Lock Nut are all included in a single pack, this saves additional ordering work and storage locations.

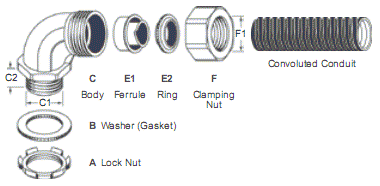

Thread Cat.No. Max. Joint
F1
mm
Accommodated
AVC Conduits
Thread
O. D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Std.
Pkg.
pcs
G(PF) 1/2 S-FZS21-E-18 18.5 (S-J03B) 3/8" 20.9 20.9-21.4 11 10
S-FZS21-E-21 23.5 (S-J04B) 1/2" 20.9 20.9-21.4 11.6 10
3/4 S-FZS26-E-26 28.5 (S-J06B) 3/4" 26.4 26.4-26.9 14 10
1 S-FZS33-E-34 35.5 (S-J08B) 1" 33.2 33.2-33.7 14.7 10
1 1/4 S-FZS42-E-42 44 (S-J10B) 1 1/4" 41.9 41.9-42.4 15.8 5
1 1/2 S-FZS48-E-48 49.8 (S-J12B) 1 1/2" 47.8 47.8-48.3 16.7 5
2 S-FZS60-E-60 61.8 (S-J16B) 2" 59.6 59.6-60.1 18.7 5
2 1/2 S-FZS75-E-75 75 (S-J20B) 2 1/2" 75.1 75.1-75.6 24 1
3 S-FZS88-E-88 92 (S-J24B) 3" 87.8 87.8-88.3 25 1
4 S-FZS113-E-113 117 (S-J32B) 4" 113 113-113.5 28 1
