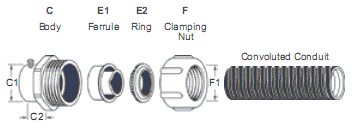

Material Data: Zinc Alloy for C.F parts, Polypropylene for E2 parts, Galvanized metal for E1 part.

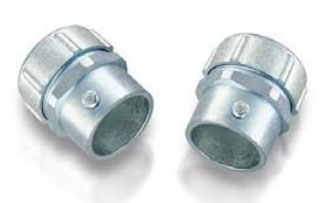

Application: Set-Screw Zinc Alloy Conduit Fitting provides high impact function, which is connected to both the convoluted conduit and EMT pipe to protect
cables in the applications of many industries.
EMT
Pipe
Sizes
Cat.No.
Max. Joint
F1
mm
Accommodated AVC Conduits
I.D.
C1
mm
Length
C2
mm
Std.
Pkg.
pcs
1/2"
S-TZS21-21
23.5
(S-J04B)
1/2"
22.3
12.4
10
3/4"
S-TZS26-26
28.5
(S-J06B)
3/4"
26.3
13.7
10
1"
S-TZS33-34
35.5
(S-J08B)
1"
34.4
15.4
10
1 1/4"
S-TZS42-42
44
(S-J10B)
1 1/4"
42.4
20
5
1 1/2"
S-TZS48-48
49.8
(S-J12B)
1 1/2"
48.5
20
5
2"
S-TZS60-60
61.8
(S-J16B)
2"
60.5
25.7
5
2 1/2"
S-TZS75-75
75
(S-J20B)
2 1/2"
76.6
28.1
1
3"
S-TZS88-88
92
(S-J24B)
3"
85.5
30
1
4"
S-TZS113-113
117
(S-J32B)
4"
111
36.5
1
