Plastic & Hardware Electronic Products / Cable glands / Metal Conduits & Fittings /

Zinc Fittings For PVC & Convoluted Metal Conduits

Zinc Fittings For PVC & Convoluted Metal Conduits
Zinc Fittings For PVC & Convoluted Metal Conduits

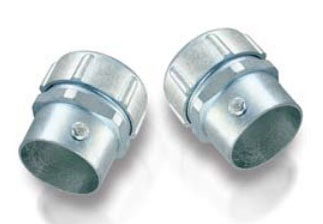

Connection Type: Set Screw PVC or RSG Pipe Coupling.

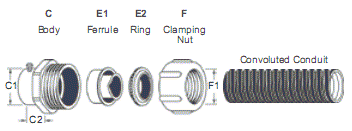

Material Data: Zinc Alloy for C.F parts, Polypropylene for E2 parts, Galvanized metal for E1 part.

Application: Set-Screw Zinc Alloy Conduit Fitting provides high impact function, which is connected to both the convoluted conduit and PVC or RSG pipe to protect cables in the applications of mechanical, automatic, and electrical / electronic industries.


PVC
Pipe
Sizes
Cat.No. Max. Joint
F1
mm
Accommodated
AVC Conduits
I.D.
C1
mm
Length
C2
mm
Std.
Pkg.
pcs
1/2" S-VZS21-21 23.5 (S-J04B) 1/2" 22.3 14.2 10
3/4" S-VZS26-26 28.5 (S-J06B) 3/4" 26.3 16.7 10
1" S-VZS33-34 35.5 (S-J08B) 1" 34.4 19.8 10
1 1/4" S-VZS42-42 44 (S-J10B) 1 1/4" 42.4 17.5 5
1 1/2" S-VZS48-48 49.8 (S-J12B) 1 1/2" 48.5 20 5
2" S-VZS60-60 61.8 (S-J16B) 2" 60.5 25.7 5
2 1/2" S-VZS75-75 75 (S-J20B) 2 1/2" 76.6 28.1 1
3" S-VZS88-88 92 (S-J24B) 3" 85.5 30 1
4" S-VZS113-113 117 (S-J32B) 4" 111 36.5 1
