Plastic & Hardware Electronic Products / Cable glands / Metal Cable Glands /

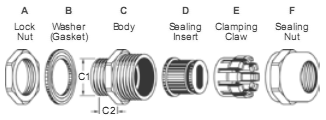

Flat-Hole Insert Brass Cable Glands

Thread Type: Metric, PG, G(PF) and NPT.

Material Data: Brass nickel-plated (JIS C3604 / DIN CuZn39Pb3 / ASTM C37800) for A.C.F parts; Nylon PA 66 for E part.
Weather-resistant EPDM rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications).

IP Protection: IP68 - depending on the less differences between cable diameters & sealing-hole openings. (Less is Better)

Working Temp.: -40°C to 105°C. Short-Term to 160°C.

Application: From AVC's widest variety choices of bodies & flat-hole inserts, Flat-Hole Glands provide excellent watertight performance for flat type cables.
The brass cable gland also provides the excellent mechanical properties for outdoor / indoor applications.

* Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.

Seal Holes	Thread		Cat.No.	Cable Range mmØ	Thread O.D. C1 mm	Panel Mounting Hole mm	Thread Length C2 mm	Spanner Size A/F mm	Std. Pkg. pcs
Flat Holes	M12x1.5		MBA12-0207	2.3x7.1	12	12-12.3	8	17/17	10
	M16x1.5		MBA16-0610	6x10	16	16-16.3	9	22/22	10
	M20x1.5		MBA20M-0511	5x11.5	20	20-20.3	9.5	24/24	10
			MBA20-0612	6.5x12	20	20-20.3	9.5	26/26	10
			MBA20-0614	6x14	20	20-20.3	9.5	26/26	10
			MBA20-0712	7x12	20	20-20.3	9.5	26/26	10
			MBA20-0714	7x14	20	20-20.3	9.5	26/26	10
	M25x1.5		MBA25-0614	6x14	25	25-25.4	12	32/32	10
	M25x1.5		MBA25-0714	7x14	25	25-25.4	12	32/32	10
	M32x1.5		MBA32-0822	8x22	32	32-32.4	12.5	41/41	10
	M40x1.5		MBA40-1028	10x28.5	40	40-40.4	15	50/50	5
	M40x1.5		MBA40-0529	5.5x29	40	40-40.4	15	50/50	5

	PG 7		PBA7-0207	2.3x7.1	12.5	12.5-12.8	8	17/17	10
	PG 9		PBA9-0207	2.3x7.1	15.2	15.2-15.5	8	18/17	10
	PG 11		PBA11-0610	6x10	18.6	18.6-18.9	9	22/22	10
	PG 13.5		PBA13.5-0511	5x11.5	20.4	20.4-20.7	9.5	24/24	10
	PG 16		PBA16-0612	6.5x12	22.5	22.5-22.8	9.5	26/26	10
			PBA16-0614	6x14	22.5	22.5-22.8	9.5	26/26	10
			PBA16-0712	7x12	22.5	22.5-22.8	9.5	26/26	10
			PBA16-0714	7x14	22.5	22.5-22.8	9.5	26/26	10
	PG 21		PBA21-0614	6x14	28.3	28.3-28.7	12	32/32	10
	PG 21		PBA21-0714	7x14	28.3	28.3-28.7	12	32/32	10
	PG 29		PBA29-0822	8x22	37	37-37.4	12.5	41/41	10
	PG 36		PBA36-1028	10x28.5	47	47-47.4	15	50/50	5
	PG 36		PBA36-0529	5.5x29	47	47-47.4	15	50/50	5

	G(PF)	1/4	FBA13-0207	2.3x7.1	13.157	13.2-13.4	8	17/17	10
		3/8	FBA17-0610	6x10	16.662	16.7-16.9	9	22/22	10
		1/2	FBA21-0612	6.5x12	20.955	21-21.2	9.5	26/26	10
			FBA21-0614	6x14	20.955	21-21.2	9.5	26/26	10
			FBA21-0712	7x12	20.955	21-21.2	9.5	26/26	10
			FBA21-0714	7x14	20.955	21-21.2	9.5	26/26	10
		3/4	FBA26-0614	6x14	26.441	26.5-26.8	12	32/32	10
		3/4	FBA26-0714	7x14	26.441	26.5-26.8	12	32/32	10
		1	FBA33-0822	8x22	33.249	33.3-33.6	12.5	41/41	10
		1 1/4	FBA42-1028	10x28.5	41.91	42-42.3	15	50/50	5
		1 1/4	FBA42-0529	5.5x29	41.91	42-42.3	15	50/50	5

	NPT 3/8		NBA17-0610	6x10	17.055	-	13	22	10
	NPT 1/2		NBA21-0612	6.5x12	21.223	-	13	26	10
			NBA21-0614	6x14	21.223	-	13	26	10
			NBA21-0712	7x12	21.223	-	13	26	10
			NBA21-0714	7x14	21.223	-	13	26	10
	NPT 3/4		NBA26-0614	6x14	26.568	-	14	32	10
	NPT 3/4		NBA26-0714	7x14	26.568	-	14	32	10
	NPT 1		NBA33-0822	8x22	33.227	-	15	41	10
	NPT 1 1/4		NBA42-1028	10x28.5	41.984	-	15	50	5
	NPT 1 1/4		NBA42-0529	5.5x29	41.984	-	15	50	5
