Heat & Oil Resistant Brass Cable Glands

Heat & Oil Resistant Brass Cable Glands
Heat & Oil Resistant Brass Cable Glands

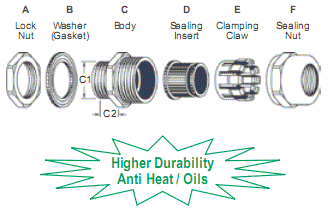

Thread Type: Metric and PG.

Material Data: Brass nickel-plated (JIS C3604 / DIN CuZn39Pb3 / ASTM C37800) for A.C.F parts; Special heat resistance polyamide for E part.
Special heat, weather, oil and chemical resistance Viton®rubbers for B.D parts.

IP Protection: IP68 - 5 bar.

Working Temp.: -20°C to 150°C; intermittent to approx. 180°C.

Application: The combination of high quality nickel-plated brass body and the special Viton®sealing fluoroelastomer (well known for its excellent anti heat to 200°C without aging effect after a long period and resistant against aggressive fuels / chemicals} provides integrated performance to offering the highest working temperatures and mechanical properties (high heat, weather, impact, chemical and oil resistance, etc). In addition, the gland with AVC's perfect clamping design provides the outstanding strain relief power & watertight performance over the entire cable range to be the best cable entry system to meet the high heat environment and the specific requirements such in automotive technology and chemical / oil industry, etc.

* Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* For product property & chemical resistance informations, please click here for reference.
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.


Seal
Holes
Thread Cat.No. Cable
Range
mmØ
Thread
O.D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Spanner
Size
A/F
mm
Std.
Pkg.
pcs
A
Type
M12x1.5 MBA12-05-FH 5.3-3 12 12-12.3 8 17/17 10
MBA12-08-FH 7.8-4.5 12 12-12.3 8 17/17 10
M16x1.5 MBA16-06-FH 7-4 16 16-16.3 9 22/22 10
MBA16-10-FH 10-6 16 16-16.3 9 22/22 10
M20x1.5 MBA20-10-FH 11-7 20 20-20.3 9.5 26/26 10
MBA20-13-FH 14-9 20 20-20.3 9.5 26/26 10
M25x1.5 MBA25-16-FH 16-12 25 25-25.4 12 32/32 10
MBA25-18-FH 18-14 25 25-25.4 12 32/32 10

PG 7 PBA7-05-FH 5.3-3 12.5 12.5-12.8 8 17/17 10
PBA7-08-FH 7.8-4.5 12.5 12.5-12.8 8 17/17 10
PG 11 PBA11-06-FH 7-4 18.6 18.6-18.9 9 22/22 10
PBA11-10-FH 10-6 18.6 18.6-18.9 9 22/22 10
PG 16 PBA16-10-FH 11-7 22.5 22.5-22.8 9.5 26/26 10
PBA16-13-FH 14-9 22.5 22.5-22.8 9.5 26/26 10
PG 21 PBA21-16-FH 16-12 28.3 28.3-28.7 12 32/32 10
PBA21-18-FH 18-14 28.3 28.3-28.7 12 32/32 10

G(PF) 1/4 FBA13-05-FH 5.3-3 13.157 13.2-13.4 8 17/17 10
FBA13-08-FH 7.8-4.5 13.157 13.2-13.4 8 17/17 10
3/8 FBA17-06-FH 7-4 16.662 16.7-16.9 9 22/22 10
FBA17-10-FH 10-6 16.662 16.7-16.9 9 22/22 10
1/2 FBA21-10-FH 11-7 20.955 21-21.2 9.5 26/26 10
FBA21-13-FH 14-9 20.955 21-21.2 9.5 26/26 10
3/4 FBA26-16-FH 16-12 26.441 26.5-26.8 12 32/32 10
FBA26-18-FH 18-14 26.441 26.5-26.8 12 32/32 10

NPT 3/8 NBA17-06-FH 7-4 17.055 - 13 22 10
NBA17-10-FH 10-6 17.055 - 13 22 10
NPT 1/2 NBA21-10-FH 11-7 21.223 - 13 26 10
NBA21-13-FH 14-9 21.223 - 13 26 10
NPT 3/4 NBA26-16-FH 16-12 26.568 - 14 32 10
NBA26-18-FH 18-14 26.568 - 14 32 10
