Plastic & Hardware Electronic Products / Cable glands / Metal Cable Glands /

V0 Extreme Flameproof Brass Cable Glands

V0 Extreme Flameproof Brass Cable Glands
V0 Extreme Flameproof Brass Cable Glands

Thread Type: Metric and PG.

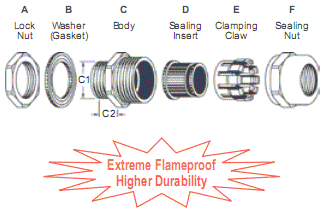

Material Data: Brass nickel-plated (JIS C3604 / DIN CuZn39Pb3 / ASTM C37800) for A.C.F parts; PA66 (UL 94V-0) for E parts.
Flame-Retardant & Weather-Resistance Rubbers for B.D parts.

IP Protection: IP68 - 5 bar.

Working Temp.: -40°C to 105°C. Short-Term to 160°C.

Application: The extreme flameproof cable gland is assembled with high quality nickel-plated brass body and the flame-retardant clamp & gaskets which is mainly designed for human & property protection. In addition, the unique design from AVC's special sealing & clamping system provides strong strain relief, waterproof and airtight abilities over the entire cable range. This special safety gland provides integrated performance on the excellent mechanical properties and highest flameproof protection which is suitable for used in outdoor / indoor cable entry applications with higher human protection in public buildings, store houses, undergrounds, tunnels, aeration systems, ships and supply installations, etc.

* Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.


Seal
Holes
Thread Cat.No. Cable
Range
mmØ
Thread
O.D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Spanner
Size
A/F
mm
Std.
Pkg.
pcs
A
Type
M12x1.5 MBA12-05-V0 5.3-3 12 12-12.3 8 17/17 10
MBA12-08-V0 7.8-4.5 12 12-12.3 8 17/17 10
M16x1.5 MBA16-06-V0 7-4 16 16-16.3 9 22/22 10
MBA16-10-V0 10-6 16 16-16.3 9 22/22 10
M20x1.5 MBA20M-08-V0 8.8-5 20 20-20.3 9.5 24/24 10
MBA20-10-V0 11-7 20 20-20.3 9.5 26/26 10
MBA20M-11-V0 12-7 20 20-20.3 9.5 24/24 10
MBA20-13-V0 14-9 20 20-20.3 9.5 26/26 10
M25x1.5 MBA25-16-V0 16-12 25 25-25.4 12 32/32 10
MBA25-18-V0 18-14 25 25-25.4 12 32/32 10

PG7 PBA7-05-V0 5.3-3 12.5 12.5-12.8 8 17/17 10
PBA7-08-V0 7.8-4.5 12.5 12.5-12.8 8 17/17 10
PG9 PBA9-05-V0 5.3-3 15.2 15.2-15.5 8 18/17 10
PBA9-08-V0 7.8-4.5 15.2 15.2-15.5 8 18/17 10
PG11 PBA11-06-V0 7-4 18.6 18.6-18.9 9 22/22 10
PBA11-10-V0 10-6 18.6 18.6-18.9 9 22/22 10
PG13.5 PBA13.5-08-V0 8.8-5 20.4 20.4-20.7 9.5 24/24 10
PBA13.5-11-V0 12-7 20.4 20.4-20.7 9.5 24/24 10
PG16 PBA16-10-V0 11-7 22.5 22.5-22.8 9.5 26/26 10
PBA16-13-V0 14-9 22.5 22.5-22.8 9.5 26/26 10
PG21 PBA21-16-V0 16-12 28.3 28.3-28.7 12 32/32 10
PBA21-18-V0 18-14 28.3 28.3-28.7 12 32/32 10

G(PF) 1/4 FBA13-05-V0 5.3-3 13.157 13.2-13.4 8 17/17 10
FBA13-08-V0 7.8-4.5 13.157 13.2-13.4 8 17/17 10
3/8 FBA17-06-V0 7-4 16.662 16.7-16.9 9 22/22 10
FBA17-10-V0 10-6 16.662 16.7-16.9 9 22/22 10
1/2 FBA21-10-V0 11-7 20.955 21-21.2 9.5 26/26 10
FBA21-13-V0 14-9 20.955 21-21.2 9.5 26/26 10
3/4 FBA26-16-V0 16-12 26.441 26.5-26.8 12 32/32 10
FBA26-18-V0 18-14 26.441 26.5-26.8 12 32/32 10

NPT3/8 NBA17-06-V0 7-4 17.055 - 13 22 10
NBA17-10-V0 10-6 17.055 - 13 22 10
NPT1/2 NBA21-10-V0 11-7 21.223 - 13 26 10
NBA21-13-V0 14-9 21.223 - 13 26 10
NPT3/4 NBA26-16-V0 16-12 26.568 - 14 32 10
NBA26-18-V0 18-14 26.568 - 14 32 10
