Thread Type: Metric, according to EN 60423.

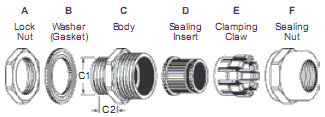

Material Data: Brass nickel-plated ( JIS C3604 / DIN CuZn39Pb3 / ASTM C37800) for A. C.F parts; Nylon PA 66 for E part.
Weather-Resistant EPDM rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications)
IP Protection: IP68 - 5 bar.
Working Temp.: -40°C to 105°C. Short-Term to 160°C.
Application: The robust & shiny plated brass cable gland with AVC's unique clamping design provides outstanding strain relief power & watertight
performance over the entire cable range (2 mm - 77 mm) from the widest variety of bodies & sealing inserts. The high quality nickel-plated
brass glands are considered the best cost / performance ratio for the metal-made cable entry systems to provide the excellent mechanical
properties inanti corrosion, weather resistance, flame protection and high impact durability for outdoor / indoor cord-grip applications on
electrical and electronics technologies, machines, telecommunications, wireless networking ODUs, power supplies, switches, junction boxes,
solar PV modules, inverters, lightings, displays, traffics, signals, surveillance cameras, measurings, sensors and any kind of equipment.
* Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
|
