Plastic & Hardware Electronic Products / Cable glands / Metal Cable Glands /

Multi-Hole Insert Brass Cable Glands (2 Holes)

Thread Type: Metric, PG, G (PF) and NPT.

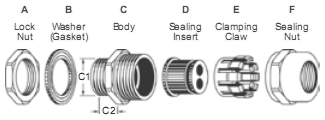

Material Data: Brass nickel-plated (JIS C3604 / DIN CuZn39Pb3 / ASTM C37800) for A.C.F parts; Nylon PA 66 for E part.
Weather-resistant EPDM rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications)

IP Protection: IP68 - depending on the less differences between cable diameters & sealing-hole openings. (Less is Better)

Working Temp.: -40°C to 105°C. Short-Term to 160°C.

Application: From AVC's widest variety choices of bodies & multi-hole inserts, no need to use one gland for each wire, so the space of wire entry can be reduced and minimize costs & working time. The brass cable gland provides the excellent mechanical properties for outdoor / indoor applications.

* Contact us fordesigning & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.

Seal Holes	Thread		Cat.No.	Cable Range mmØ	Thread O.D. C1 mm	Panel Mounting Hole mm	Thread Length C2 mm	Spanner Size A/F mm	Std. Pkg. pcs
2 Holes	M12x1.5		MBA12-H2-03	3.1-2	12	12-12.3	8	17/17	10
	M16x1.5		MBA16-H2-02	2.6-1.6	16	16-16.3	9	22/22	10
			MBA16-H2-03	3-2	16	16-16.3	9	22/22	10
			MBA16-H2-04	4.1-3	16	16-16.3	9	22/22	10
	M20x1.5		MBA20M-H2-05	5.2-3.5	20	20-20.3	9.5	24/24	10
			MBA20-H2-03	3.5-2.5	20	20-20.3	9.5	26/26	10
			MBA20-H2-04	4.3-3.3	20	20-20.3	9.5	26/26	10
			M5A20-H2-06	6.1-4.3	20	20-20.3	9.5	26/26	10
	M25x1.5		MBA25-H2-05	5.2-3.6	25	25-25.4	12	32/32	10
			MBA25-H2-06	6.5-5.1	25	25-25.4	12	32/32	10
			MBA25-H2-08	8.7-6.4	25	25-25.4	12	32/32	10
	M32x1.5		MBA32-H2-10	10-7.7	32	32-32.4	12.5	41/41	10
	M40x1.5		MBA40-H2-09	9-7	40	40-40.4	15	50/50	5
	M40x1.5		MBA40-H2-13	13-11	40	40-40.4	15	50/50	5

	PG 7		PBA7-H2-03	3.1-2	12.5	12.5-12.8	8	17/17	10
	PG 9		PBA9-H2-03	3.1-2	15.2	15.2-15.5	8	18/17	10
	PG 11		PBA11-H2-02	2.6-1.6	18.6	18.6-18.9	9	22/22	10
			PBA11-H2-03	3-2	18.6	18.6-18.9	9	22/22	10
			PBA11-H2-04	4.1-3	18.6	18.6-18.9	9	22/22	10
	PG 13.5		PBA13.5-H2-05	5.2-3.5	20.4	20.4-20.7	9.5	24/24	10
	PG 16		PBA16-H2-03	3.5-2.5	22.5	22.5-22.8	9.5	26/26	10
			PBA16-H2-04	4.3-3.3	22.5	22.5-22.8	9.5	26/26	10
			PBA16-H2-06	6.1-4.3	22.5	22.5-22.8	9.5	26/26	10
	PG 21		PBA21-H2-05	5.2-3.6	28.3	28.3-28.7	12	32/32	10
			PBA21-H2-06	6.5-5.1	28.3	28.3-28.7	12	32/32	10
			PBA21-H2-08	8.7-6.4	28.3	28.3-28.7	12	32/32	10
	PG 29		PBA29-H2-10	10-7.7	37	37-37.4	12.5	41/41	10
	PG 36		PBA36-H2-09	9-7	47	47-47.4	15	50/50	5
	PG 36		PBA36-H2-13	13-11	47	47-47.4	15	50/50	5

	G(PF)	1/4	FBA13-H2-03	3.1-2	13.157	13.2-13.4	8	17/17	10
		3/8	FBA17-H2-02	2.6-1.6	16.662	16.7-16.9	9	22/22	10
			FBA17-H2-03	3-2	16.662	16.7-16.9	9	22/22	10
			FBA17-H2-04	4.1-3	16.662	16.7-16.9	9	22/22	10
		1/2	FBA21-H2-03	3.5-2.5	20.955	21-21.2	9.5	26/26	10
			FBA21-H2-04	4.3-3.3	20.955	21-21.2	9.5	26/26	10
			FBA21-H2-06	6.1-4.3	20.955	21-21.2	9.5	26/26	10
		3/4	FBA26-H2-05	5.2-3.6	26.441	26.5-26.8	12	32/32	10
			FBA26-H2-06	6.5-5.1	26.441	26.5-26.8	12	32/32	10
			FBA26-H2-08	8.7-6.4	26.441	26.5-26.8	12	32/32	10
		1	FBA33-H2-10	10-7.7	33.249	33.3-33.6	12.5	41/41	10
		1 1/4	FBA42-H2-09	9-7	41.91	42-42.3	15	50/50	5
		1 1/4	FBA42-H2-13	13-11	41.91	42-42.3	15	50/50	5

	NPT 3/8		NBA17-H2-02	2.6-1.6	17.055	-	13	22	10
			NBA17-H2-03	3-2	17.055	-	13	22	10
			NBA17-H2-04	4.1-3	17.055	-	13	22	10
	NPT 1/2		NBA21-H2-03	3.5-2.5	21.223	-	13	26	10
			NBA21-H2-04	4.3-3.3	21.223	-	13	26	10
			NBA21-H2-06	6.1-4.3	21.223	-	13	26	10
	NPT 3/4		NBA26-H2-05	5.2-3.6	26.568	-	14	32	10
			NBA26-H2-06	6.5-5.1	26.568	-	14	32	10
			NBA26-H2-08	8.7-6.4	26.568	-	14	32	10
	NPT 1		NBA33-H2-10	10-7.7	33.227	-	15	41	10
	NPT 1 1/4		NBA42-H2-09	9-7	41.984	-	15	50	5
	NPT 1 1/4		NBA42-H2-13	13-11	41.984	-	15	50	5
