Multi-Hole Insert Brass Cable Glands (6 Holes)

Multi-Hole Insert Brass Cable Glands (6 Holes)
Multi-Hole Insert Brass Cable Glands (6 Holes)

Thread Type: Metric, PG, G(PF) and NPT.

Material Data: Brass nickel-plated (JIS C3604 / DIN CuZn39Pb3 / ASTM C37800) for A.C.F parts; Nylon PA66 for E part.
Weather-resistant EPDM rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications)

IP Protection: IP68 - depending on the less differences between cable diameters & sealing-hole openings. (Less is Better)

Working Temp.: -40°C to 105°C. Short-Term to 160°C.

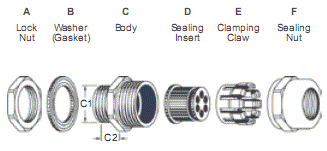

Application: With AVC's unique clamping design, a multi-hole cable gland allows several cables to be lead through it simultaneously and provides excellent watertight performance for each wire. There is no need to use one gland for each wire, so the space of wire entries can be reduced ( good for limited spaces ) and is the best solution to minimize the costs & working time from the widest variety choices of AVC's gland bodies & multi-hole inserts. The high quality nickel-plated brass cable gland provides the excellent mechanical properties to protect it from corrosion and provides excellent abilities in chemical & weather resistance, flame protection and high impact durability for outdoor / indoor cable entry applications on any kind of equipment.

* Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.


Seal
Holes
Thread Cat.No. Cable
Range
mmØ
Thread
O.D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Spanner
Size
A/F
mm
Std.
Pkg.
pcs
6
Holes
M16x1.5 MBA16-H6-02 2.1-1.4 16 16-16.3 9 22/22 10
M20x1.5 MBA20-H6-02 2-1.3 20 20-20.3 9.5 26/26 10
MBA20-H6-03 3-2 20 20-20.3 9.5 26/26 10
M25x1.5 MBA25-H6-03 3.6-2.6 25 25-25.4 12 32/32 10
MBA25-H6-05 5.2-3.6 25 25-25.4 12 32/32 10
M32x1.5 MBA32-H6-07 7-5.6 32 32-32.4 12.5 41/41 10

PG11 PBA11-H6-02 2.1-1.4 18.6 18.6-18.9 9 22/22 10
PG16 PBA16-H6-02 2-1.3 22.5 22.5-22.8 9.5 26/26 10
PBA16-H6-03 3-2 22.5 22.5-22.8 9.5 26/26 10
PG21 PBA21-H6-03 3.6-2.6 28.3 28.3-28.7 12 32/32 10
PBA21-H6-05 5.2-3.6 28.3 28.3-28.7 12 32/32 10
PG29 PBA29-H6-07 7-5.6 37 37-37.4 12.5 41/41 10

G(PF) 3/8 FBA17-H6-02 2.1-1.4 16.662 16.7-16.9 9 22/22 10
1/2 FBA21-H6-02 2-1.3 20.955 21-21.2 9.5 26/26 10
FBA21-H6-03 3-2 20.955 21-21.2 9.5 26/26 10
3/4 FBA26-H6-03 3.6-2.6 26.441 26.5-26.8 12 32/32 10
FBA26-H6-05 5.2-3.6 26.441 26.5-26.8 12 32/32 10
1 FBA33-H6-07 7-5.6 33.249 33.3-33.6 12.5 41/41 10

NPT 3/8 NBA17-H6-02 2.1-1.4 17.055 - 13 22 10
NPT 1/2 NBA21-H6-02 2-1.3 21.223 - 13 26 10
NBA21-H6-03 3-2 21.223 - 13 26 10
NPT 3/4 NBA26-H6-03 3.6-2.6 26.568 - 14 32 10
NBA26-H6-05 5.2-3.6 26.568 - 14 32 10
NPT 1 NBA33-H6-07 7-5.6 33.227 - 15 41 10
