Thread Type: Metric, PG, G(PF) and NPT.

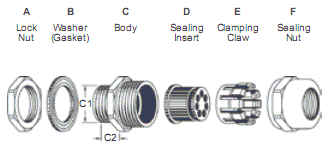

Material Data: Brass nickel-plated (JIS C3604 / DIN CuZn39Pb3/ASTM C37800 ) for A.C.F parts ; Nylon PA 66 for E part.
Weather-resistant EPDM rubbers for B.D parts. ( NBR rubber is optional for oil-resistance applications)
IP Protection: IP68 - depending on the less differences between cable diameters & sealing-hole openings. (Less is Better)
Working Temp.: -40°C to 105°C. Short-Term to 160°C.
Application: From AVC's widest variety choices of bodies & multi-hole inserts, no need to use one gland for each wire, so the space of wire entry can be
reduced and minimize costs & working time. The brass cable gland provides the excellent mechanical properties for outdoor / indoor applications.
* Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations. |
