Thread Type: Metric, according to EN 60423.

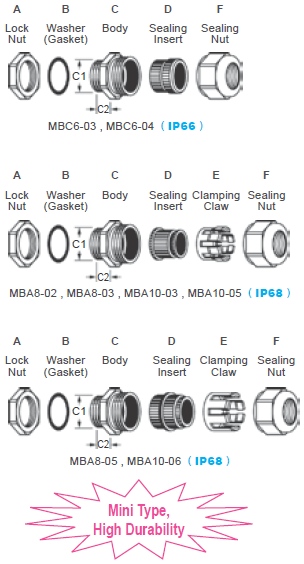

Material Data: Brass nickel-plated (JIS C3604 / DIN CuZn39Pb3 / ASTM C37800) for A.C.F parts ; Nylon PA 66 for E part.
Weather-resistant EPDM rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications)
IP Protection: IP68 - 5 bar.
Working Temp.: -40°C to 105°C. Short-Term to 160°C.
Application: The smallest brass cable glands with high quality nickel-plated finish are made tor mounting small cable diameter on tiny devices & equipment
where the spaces are limited and the IP68 waterproof protection & strain relief are required. With its special design, even 1 mm cable diameter
can be reached for IP68 protection and has the best performance in weather resistance, flameproof, chemical resistance, high impact
durability and good-looking finishes for outdoor / indoor cord sealing applications. This is the best cost / performance ratio choice for a mini cable
entry system used in electrical and electronics devices, charger control for hybrid vehicles, charger control for inverters / converts, LED Lights,
wireless ODUs, surveillance cameras, measurings, sensors and any kind of equipment.
* Contact us for ordering other connection thread type.
* Consult us for designing & ordering different sealing hole patterns with varying diameters. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.
|
