Stainless Steel Cable Glands

Stainless Steel Cable Glands
Stainless Steel Cable Glands

Thread Type: Metric and PG.

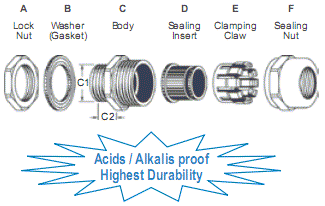

Material Data: Standard in Stainless Steel A2 (DIN 1.4305 / AISI 303) for A.C.F parts; Contact us for ordering Stainless Steel A4 (1.4404/AISI 316L).
Nylon PA 66 for E part.
Acid / Alkali proof & Weather-resistant rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications).

IP Protection: IP68 - 5 bar.

Working Temp.: -40°C to 105°C. Short-Term to 160°C.

Application: With the higher requirements under tough conditions for stability & acid-alkali proof, the rustproof and high strength stainless steel is adopted for building this tough cable gland to offering the best durability in weather, flame, chemical and high impact resistance to protect them from corrosion and high impact environment. In addition, the gland with AVC's perfect clamping design provides the outstanding strain relief force & watertight performance over the entire cable range to be the best cable entry for tough outdoor / indoor applications which is suitably for used in acid / alkali proof demanded devices, machines and equipment.

* Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* For product property & chemical resistance informations, please click here for reference.
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.


Seal
Holes
Thread Cat.No. Cable
Range
mmØ
Thread
O.D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Spanner
Size
A/F
mm
Std.
Pkg.
pcs
A
Type
M12x1.5 MSA12-05 5.3 - 3 12 12 - 12.3 8 17/17 10
MSA12-08 7.8-4.5 12 12 - 12.3 8 17/17 10
M16x1.5 MSA16-06 7-4 16 16 - 16.3 9 22/22 10
MSA16-10 10-6 16 16-16.3 9 22/22 10
M20x1.5 MSA20M-08 8.8 - 5 20 20 - 20.3 9.5 24/24 10
MSA20M-11 12-7 20 20 - 20.3 9.5 24/24 10
MSA20-13 14-9 20 20-20.3 9.5 26/26 10
M25x1.5 MSA25-16 16 - 12 25 25 - 25.4 12 32/32 10
MSA25-18 18 - 14 25 25 - 25.4 12 32/32 10
M32x1.5 MSA32-22 22 - 16 32 32 - 32.4 12.5 41 /41 10
MSA32-25 25 - 18 32 32 - 32.4 12.5 41 /41 10

PG 7 PSA7-05 5.3 - 3 12.5 12.5 - 12.8 8 17/17 10
PSA7-08 7.8-4.5 12.5 12.5 - 12.8 8 17/17 10
PG 9 PSA9-05 5.3-3 15.2 15.2 - 15.5 8 18/17 10
PSA9-08 7.8-4.5 15.2 15.2-15.5 8 18/17 10
PG 11 PSA11-06 7-4 18.6 18.6-18.9 9 22/22 10
PSA11-10 10-6 18.6 18.6-18.9 9 22/22 10
PG 13.5 PSA13.5-08 8.8-5 20.4 20.4 - 20.7 9.5 24/24 10
PSA13.5-11 12-7 20.4 20.4 - 20.7 9.5 24/24 10
PG 16 PSA16-10 11-7 22.5 22.5 - 22.8 9.5 26/26 10
PSA16-13 14-9 22.5 22.5-22.8 9.5 26/26 10
PG 21 PSA21-16 16- 12 28.3 28.3 - 28.7 12 32/32 10
PSA21-18 18 - 14 28.3 28.3 - 28.7 12 32/32 10
PG 29 PSA29-22 22 - 16 37 37 - 37.4 12.5 41 /41 10
PSA29-25 25- 18 37 37 - 37.4 12.5 41 /41 10

G(PF) 1/4 FSA13-05 5.3 - 3 13.157 13.2 - 13.4 8 17/17 10
FSA13-08 7.8-4.5 13.157 13.2 - 13.4 8 17/17 10
3/8 FSA17-06 7-4 16.662 16.7- 16.9 9 22/22 10
FSA17-10 10-6 16.662 16.7 - 16.9 9 22/22 10
1/2 FSA21-10 11-7 20.955 21 - 21.2 9.5 26/26 10
FSA21-13 14-9 20.955 21 - 21.2 9.5 26/26 10
3/4 FSA26-16 16-12 26.441 26.5 - 26.8 12 32/32 10
FSA26-18 18-14 26.441 26.5 - 26.8 12 32/32 10
1 FSA33-22 22-16 33.249 33.3 - 33.6 12.5 41 /41 10
FSA33-25 25-18 33.249 33.3 - 33.6 12.5 41 /41 10

NPT 3/8 NSA17-06 7-4 17.055 - 13 22 10
NSA17-10 10-6 17.055 - 13 22 10
NPT 1/2 NSA21-10 11-7 21.223 - 13 26 10
NSA21-13 14-9 21.223 - 13 26 10
NPT 3/4 NSA26-16 16 - 12 26.568 - 14 32 10
NSA26-18 18 - 14 26.568 - 14 32 10
NPT 1 NSA33-22 22 - 16 33.227 - 15 41 10
NSA33-25 25-18 33.227 - 15 41 10
