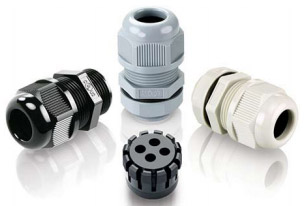

Multi-Hole Insert Cable Glands (4 Holes)

Multi-Hole Insert Cable Glands (4 Holes)
Multi-Hole Insert Cable Glands (4 Holes)

Thread Type: G(PF) and NPT.

Material Data: Halogen-free Nylon PA 66 (Flammability UL 94V-2) for A.C.E.F parts. (Contact us for Flammability VO material).
Standard in weather-resistant EPDM rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications).
Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.
UV (Irradiance 340 nm) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.

IP Protection: IP68 - depending on the less differences between cable diameters & sealing-hole openings. (Less is Better)

Working Temp.: -40°C to 105°C. Short-Term to 160°C.

Application: With AVC's unique clamping design, a multi-hole cable gland allows several cables to be lead through it simultaneously and can provides excellent watertight performance for each wire. From the widest variety choices of AVC's gland bodies & multi-hole inserts, there is no need to use one gland for each wire, so the spaces of wire entries can be reduced (good for limited spaces). These high quality cable glands
are the best solutions to minimize the costs, spaces and working time used in electrical and electronics technologies, machines, telecommunications, wireless networking ODUs, power supplies, switches, junction boxes, solar PV modules, inverters, lightings, displays, traffics, signals, surveillance/security cameras, measurings, sensors, plant engineerings, installations and any kind of equipment for outdoor / indoor multi-cable entry applications.

* Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.


Seal
Holes
Thread Cat.No. Cable
Range
mmØ
Thread
O.D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Spanner
Size
A/F
mm
Std.
Pkg.
pcs
Sizes Black
RAL
9005
Light
Grey
RAL
7035
Silver
Grey
RAL
7001
4
Holes
G(PF) 1/4 FGA13-H4-02 B G SG 2.3-1.3 13.157 13.2-13.4 9 19/19 50
3/8 FGA17-H4-02 B G SG 2.4-1.4 16.662 16.7-16.9 10 22/22 50
FGA17-H4-03 B G SG 3.4-2.4 16.662 16.7-16.9 10 22/22 50
1/2 FGA21S-H4-02 B G SG 2.4-1.4 20.955 21-21.2 10 27/22 50
FGA21S-H4-03 B G SG 3.4~2.4 20.955 21-21.2 10 27/22 50
FGA21M-H4-04 B G SG 4.2-3 20.955 21-21.2 10 27/24 50
FGA21L-H4-02 B G SG 2.5-1.6 20.955 21-21.2 10 27/27 50
FGA21L-H4-03 B G SG 3.6-2.5 20.955 21-21.2 10 27/27 50
FGA21L-H4-04 B G SG 4.8-3.4 20.955 21-21.2 10 27/27 50
3/4 FGA26S-H4-02 B G SG 2.5-1.6 26.441 26.5-26.8 12 33/27 50
FGA26S-H4-03 B G SG 3.6-2.5 26.441 26.5-26.8 12 33/27 50
FGA26S-H4-04 B G SG 4.8-3.4 26.441 26.5-26.8 12 33/27 50
FGA26-H4-03 B G SG 3.1-2 26.441 26.5-26.8 12.5 33/33 50
FGA26-H4-04 B G SG 4.1-3 26.441 26.5-26.8 12.5 33/33 50
FGA26-H4-05 B G SG 5.2-3.8 26.441 26.5-26.8 12.5 33/33 50
FGA26-H4-07 B G SG 7.3-5.6 26.441 26.5-26.8 12.5 33/33 50
1 FGA33S-H4-03 B G SG 3.1-2 33.249 33.3-33.6 12 42/33 10
FGA33S-H4-04 B G SG 4.1-3 33.249 33.3-33.6 12 42/33 10
FGA33S-H4-05 B G SG 5.2-3.8 33.249 33.3-33.6 12 42/33 10
FGA33S-H4-07 B G SG 7.3-5.6 33.249 33.3-33.6 12 42/33 10
FGA33-H4-09 B G SG 9-7 33.249 33.3-33.6 15 42/42 10
1 1/4 FGA42-H4-12 B G SG 12-10 41.91 42-42.3 15 53/52 10

NPT 3/8 NPA17-H4-02 B G SG 2.4-1.4 17.055 - 13 22 50
NPA17-H4-03 B G SG 3.4-2.4 17.055 - 13 22 50
NPT 1/2 NPA21-H4-02 B G SG 2.5-1.6 21.223 - 13 27 50
NPA21-H4-03 B G SG 3.6-2.5 21.223 - 13 27 50
NPA21-H4-04 B G SG 4.8-3.4 21.223 - 13 27 50
NPT 3/4 NPA26-H4-03 B G SG 3.1-2 26.568 - 15 33 50
NPA26-H4-04 B G SG 4.1-3 26.568 - 15 33 50
NPA26-H4-05 B G SG 5.2-3.8 26.568 - 15 33 50
NPA26-H4-07 B G SG 7.3-5.6 26.568 - 15 33 50
NPT 1 NPA33-H4-09 B G SG 9-7 33.227 - 17 42 10
