Heat & Cold Resistant Cable Glands (A-Type)

Heat & Cold Resistant Cable Glands (A-Type)
Heat & Cold Resistant Cable Glands (A-Type)

Thread Type: Metric and PG.

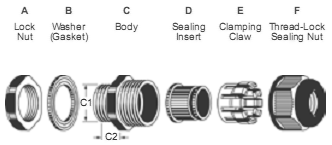

Material Data: Special heat resistance & high performance polyamide (Flammability UL 94V-2) for A.C.E.F parts;
Special heat & weather resistance rubbers for B.D parts.

IP Protection: IP68 - 5 bar.

Working Temp.: -40°C to 150°C; intermittent to approx. 220°C.

Application: The special body for this cable gland is made of high-performance & he at-resistance polyamide material to provide highest mechanical properties at high temperatures and an excellent resistance to wear and friction. Due to its very high material crystallinity, the polymer body is extremely good in durability and has a light weight character ti replace the metal cable gland. The gaskets are also made of specified cold & heat resistant rubber, which is well known for its excellent - 50°C to 200°C working temperature range. The combination of these tow special materials and accompanied with AVC's outstanding design in watertight and strain relief performance, they will be the best cord grips to meet the specific requirements for the cable entry applications especially used in high-low temperature range and higher demanding reliability.

* Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* For product property & chemical resistance informations, please click here for reference.
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.


Seal
Holes
Thread Cat.No. Cable
Range
mmØ
Thread
O.D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Spanner
Size
A/F
mm
Std.
Pkg.
pcs
Sizes Green
A Type
M12x1.5 MG12A-05-FH GN 5.3-3 12 12-12.3 9 18/19 50
MG12A-08-FH GN 7.8-4.5 12 12-12.3 9 18/19 50
M16x1.5 MG16A-06-ST-FH GN 7-4 16 16-16.3 10 22/22 50
MG16A-10-ST-FH GN 10-6 16 16-16.3 10 22/22 50
M20x1.5 MG20A-10-ST-FH GN 11-7 20 20-20.3 10 27/27 50
MG20A-14-ST-FH GN 14-9 20 20-20.3 10 27/27 50
M25x1.5 MG25A-16-ST-FH GN 16-12 25 25-25.4 10 33/33 50
MG25A-18-ST-FH GN 18-14 25 25-25.4 10 33/33 50

PG7 PGA7-05-FH GN 5.3-3 12.5 12.5-12.8 8.5 17/19 50
PGA7-08-FH GN 7.8-4.5 12.5 12.5-12.8 8.5 17/19 50
PG11 PGA11-06-FH GN 7-4 18.6 18.6-18.9 10 24/22 50
PGA11-10-FH GN 10-6 18.6 18.6-18.9 10 24/22 50
PG16 PGA16-10-FH GN 11-7 22.5 22.5-22.8 11 30/27 50
PGA16-14-FH GN 14-9 22.5 22.5-22.8 11 30/27 50
PG21 PGA21-16-FH GN 16-12 28.3 28.3-28.7 12.5 36/33 50
PGA21-18-FH GN 18-14 28.3 28.3-28.7 12.5 36/33 50

G(PF) 1/4 FGA13-05-FH GN 5.3-3 13.157 13.2-13.4 9 19/19 50
FGA13-08-FH GN 7.8-4.5 13.157 13.2-13.4 9 19/19 50
3/8 FGA17-06-FH GN 7-4 16.662 16.7-16.9 10 22/22 50
FGA17-10-FH GN 10-6 16.662 16.7-16.9 10 22/22 50
1/2 FGA21L-10-FH GN 11-7 20.955 21-21.2 10 27/27 50
FGA21L-14-FH GN 14-9 20.955 21-21.2 10 27/27 50
3/4 FGA26-16-FH GN 16-12 26.441 26.5-26.8 12.5 33/33 50
FGA26-18-FH GN 18-14 26.441 26.5-26.8 12.5 33/33 50
