Flat-Hole Insert Cable Glands (A-Type)

Flat-Hole Insert Cable Glands (A-Type)
Flat-Hole Insert Cable Glands (A-Type)

Thread Type: Metric and PG.

Material Data: Halogen-free Nylon PA 66 (Flammability UL 94V-2) for A.C.E.F parts. (Contact us for Flammability VO material).
Standard in weather-resistant EPDM rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications).
Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.
UV (Irradiance 340 nm) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.

IP Protection: IP68 - depending on the less differences between cable diameters & sealing-hole openings. (Less is Better)

Working Temp.: -40°C to 105°C. Short-Term to 160°C.

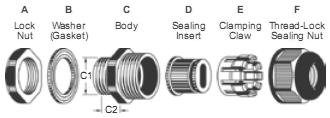

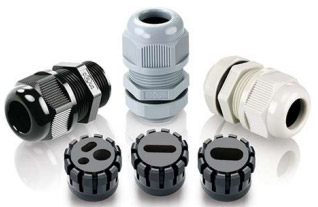

Application: With AVC's unique clamping design, a (multi) flat-hole cable gland allows flat cable(s) to be lead through it (simultaneously ) and can provides excellent watertight performance even for the flat type wire(s). These high quality multi-flat-hole cable glands are available upon request which are the best solutions to minimize the costs, spaces and working time for used on any kind of outdoor / indoor equipment.

* Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.


Seal
Holes
Thread Cat.No. Cable
Range
mmØ
Thread
O.D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Spanner
Size
A/F
mm
Std.
Pkg.
pcs
Sizes Black
RAL
9005
Light
Grey
RAL
7035
Silver
Grey
RAL
7001
Flat
Hole
Short
Thread
M16x1.5 MG16AS-0207 B G SG 2.3x7.1 16 16-16.3 10 22/19 50
MG16A-0610-ST B G SG 6x10 16 16-16.3 10 22/22 50
M20x1.5 MG20AS-0610 B G SG 6x10 20 20-20.3 10 24/22 50
MG20AM-0511 B G SG 5x11.5 20 20-20.3 15 24/24 50
MG20A-0612-ST B G SG 6.5x12 20 20-20.3 10 27/27 50
MG20A-0614-ST B G SG 6x14 20 20-20.3 10 27/27 50
MG20A-0712-ST B G SG 7x12 20 20-20.3 10 27/27 50
MG20A-0714-ST B G SG 7x14 20 20-20.3 10 27/27 50
M25x1.5 MG25AS-0612 B G SG 6.5x12 25 25-25.4 12 33/27 50
MG25AS-0614 B G SG 6x14 25 25-25.4 12 33/27 50
MG25AS-0712 B G SG 7x12 25 25-25.4 12 33/27 50
MG25AS-0714 B G SG 7x14 25 25-25.4 12 33/27 50
MG25A-0614-ST B G SG 6x14 25 25-25.4 10 33/33 50
MG25A-0714-ST B G SG 7x14 25 25-25.4 10 33/33 50
M32x1.5 MG32AS-0614 B G SG 6x14 32 32-32.4 12 41/33 10
MG32AS-0714 B G SG 7x14 32 32-32.4 12 41/33 10
MG32A-0822-ST B G SG 8x22 32 32-32.4 11 41/42 10
M40x1.5 MG40A-1028-ST B G SG 10x28.5 40 40-40.4 12 50/52 10
MG40A-0529-ST B G SG 5.5x29 40 40-40.4 12 50/52 10

Long
Thread
M12x1.5 MG12A-0207 B G SG 2.3x7.1 12 12-12.3 9 18/19 50
M16x1.5 MG16A-0610 B G SG 6x10 16 16-16.3 15 22/22 50
M20x1.5 MG20A-0612 B G SG 6.5x12 20 20-20.3 15 27/27 50
MG20A-0614 B G SG 6x14 20 20-20.3 15 27/27 50
MG20A-0712 B G SG 7x12 20 20-20.3 15 27/27 50
MG20A-0714 B G SG 7x14 20 20-20.3 15 27/27 50
M25x1.5 MG25A-0614 B G SG 6x14 25 25-25.4 15 33/33 50
MG25A-0714 B G SG 7x14 25 25-25.4 15 33/33 50
M32x1.5 MG32A-0822 B G SG 8x22 32 32-32.4 15 41/42 10
M40x1.5 MG40A-1028 B G SG 10x28.5 40 40-40.4 20 50/52 10
MG40A-0529 B G SG 5.5x29 40 40-40.4 20 50/52 10

PG7 PGA7-0207 B G SG 2.3x7.1 12.5 12.5-12.8 8.5 17/19 50
PG9 PGA9-0207 B G SG 2.3x7.1 15.2 15.2-15.5 9 22/19 50
PG11 PGA11-0610 B G SG 6x10 18.6 18.6-18.9 10 24/22 50
PG13.5 PGA13.5-0511 B G SG 5x11.5 20.4 20.4-20.7 10 27/24 50
PG16 PGA16-0612 B G SG 6.5x12 22.5 22.5-22.8 11 30/27 50
PGA16-0614 B G SG 6x14 22.5 22.5-22.8 11 30/27 50
PGA16-0712 B G SG 7x12 22.5 22.5-22.8 11 30/27 50
PGA16-0714 B G SG 7x14 22.5 22.5-22.8 11 30/27 50
PG21 PGA21-0614 B G SG 6x14 28.3 28.3-28.7 12.5 36/33 50
PGA21-0714 B G SG 7x14 28.3 28.3-28.7 12.5 36/33 50
PG29 PGA29-0822 B G SG 8x22 37 37-37.4 12 46/42 10
PG36 PGA36-1028 B G SG 10x28.5 47 47-47.4 15 57/52 10
PGA36-0529 B G SG 5.5x29 47 47-47.4 15 57/52 10
