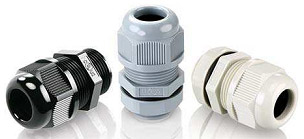

Metric Cable Glands (A-Type / Short Connection Thread)

Metric Cable Glands (A-Type / Short Connection Thread)
Metric Cable Glands (A-Type / Short Connection Thread)

Thread Type: Metric, according to EN 60423.

Material Data: Halogen-free Nylon PA 66 (Flammability UL 94V-2) for A.C.E.F parts. (Contact us for Flammability V0 material).
Standard in weather-resistant EPDM rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications).
Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.
UV (Irradiance 340 nm) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.

IP Protection: IP68 - 5 bar.

Working Temp.: - 40°C to 105°C. Short-Term to 160°C.

Application: The reined polyamide cable gland with AVC’s special A-type clamping design provides strong strain relief & watertight performance over the entire cable range from their widest variety of sizes. Besides, AVC UL-certiied cable glands have the outstanding weather resistance and durability in outdoor / indoor cable entry applications suitably used for electrical/electronics technologies and any kind of equipment.

* Contact us for designing & ordering different sealing hole patterns with varying diameters. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.

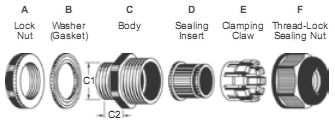

Seal
Holes
Thread Cat.No. Cable
Range
mmØ
Thread
O.D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Spanner
Size
A/F
mm
Std.
Pkg.
pcs
Sizes Black
RAL
9005
Light
Grey
RAL
7035
Silver
Grey
RAL
7001
A Type
Short Connection Thread
M16x1.5 MG16AS-05 B G SG 5.3-3 16 16-16.3 10 22/19 50
MG16AS-08 B G SG 7.8-4.5 16 16-16.3 10 22/19 50
MG16A-10-ST B G SG 10-6 16 16-16.3 10 22/22 50
MG16AL-11-ST B G SG 11-7 16 16-16.3 10 22/27 50
M20x1.5 MG20AS-06 B G SG 7-4 20 20-20.3 10 24/22 50
MG20AS-10 B G SG 10-6 20 20-20.3 10 24/22 50
MG20A-10-ST B G SG 11-7 20 20-20.3 10 27/27 50
MG20A-14-ST B G SG 14-9 20 20-20.3 10 27/27 50
MG20AL-15-ST B G SG 14.7-11 20 20-20.3 10 27/33 50
M25x1.5 MG25AS-10 B G SG 11-7 25 25-25.4 12 33/27 50
MG25AS-14 B G SG 14-9 25 25-25.4 12 33/27 50
MG25A-16-ST B G SG 16-12 25 25-25.4 10 33/33 50
MG25A-18-ST B G SG 18-14 25 25-25.4 10 33/33 50
MG25AL-19-ST B G SG 19-14.5 25 25-25.4 10 33/39 50
M32x1.5 MG32AS-16 B G SG 16-12 32 32-32.4 12 41/33 10
MG32AS-18 B G SG 18-14 32 32-32.4 12 41/33 10
MG32A-22-ST B G SG 22-16 32 32-32.4 11 41/42 10
MG32A-25-ST B G SG 25-18 32 32-32.4 11 41/42 10
MG32AL-26-ST B G SG 26.3-21.5 32 32-32.4 10 41/45 10
M40x1.5 MG40A-25-ST B G SG 25-21 40 40-40.4 12 50/52 10
MG40A-30-ST B G SG 30-24 40 40-40.4 12 50/52 10
M50x1.5 MG50A-32-ST B G SG 32-26 50 50-50.4 15 62/62 10
MG50A-39-ST B G SG 41-31 50 50-50.4 15 62/62 10
M63x1.5 MG63A-46-ST B G SG 46-40 63 63-63.4 15 75/78 10
MG63A-49-ST B G SG 51-44 63 63-63.4 15 75/78 10
Long Connection Thread
M12x1.5 MG12A-05 B G SG 5.3-3 12 12-12.3 9 18/19 50
MG12A-08 B G SG 7.8-4.5 12 12-12.3 9 18/19 50
M16x1.5 MG16A-06 B G SG 7-4 16 16-16.3 15 22/22 50
MG16A-10 B G SG 10-6 16 16-16.3 15 22/22 50
MG16AL-11 B G SG 11-7 16 16-16.3 15 22/27 50
M20x1.5 MG20AM-08 B G SG 8.8-5 20 20-20.3 15 24/24 50
MG20A-10 B G SG 11-7 20 20-20.3 15 27/27 50
MG20AM-11 B G SG 12-7 20 20-20.3 15 24/24 50
MG20A-14 B G SG 14-9 20 20-20.3 15 27/27 50
MG20AL-15 B G SG 14.7-11 20 20-20.3 15 27/33 50
M25x1.5 MG25A-16 B G SG 16-12 25 25-25.4 15 33/33 50
MG25A-18 B G SG 18-14 25 25-25.4 15 33/33 50
MG25AL-19 B G SG 19-14.5 25 25-25.4 15 33/39 50
M32x1.5 MG32A-22 B G SG 22-16 32 32-32.4 15 41/42 10
MG32A-25 B G SG 25-18 32 32-32.4 15 41/42 10
MG32AL-26 B G SG 26.3-21.5 32 32-32.4 15 41/45 10
M40x1.5 MG40A-25 B G SG 25-21 40 40-40.4 20 50/52 10
MG40A-30 B G SG 30-24 40 40-40.4 20 50/52 10
M50x1.5 MG50A-32 B G SG 32-26 50 50-50.4 22 62/62 10
MG50A-39 B G SG 41-31 50 50-50.4 22 62/62 10
M63x1.5 MG63A-46 B G SG 46-40 63 63-63.4 25 75/78 10
MG63A-49 B G SG 51-44 63 63-63.4 25 75/78 10
M75x2 MG75A-56 B G SG 56-50 75 75-75.6 25 92/92 2
MG75A-66 B G SG 66-56 75 75-75.6 25 92/92 2
M90x2 MG90A-68 B G SG 68-58 90 90-91 25 110/110 2
MG90A-77 B G SG 77-66 90 90-91 25 110/110 2
