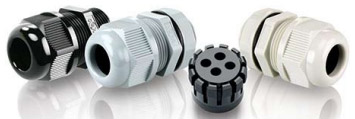

Multi-Hole Insert Cable Glands (4 Holes)

Multi-Hole Insert Cable Glands (4 Holes)
Multi-Hole Insert Cable Glands (4 Holes)

Thread Type: Metric and PG.

Material Data: Halogen-free Nylon PA 66 (Flammability UL 94V-2) for A.C.E.F parts. (Contact us for Flammability VO material).
Standard in weather-resistant EPDM rubbers for B.D parts. (NBR rubber is optional for oil-resistance applications).
Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating.
UV (Irradiance 340 nm) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray.

IP Protection: IP68 - depending on the less differences between cable diameters & sealing-hole openings. (Less is Better)

Working Temp.: -40°C to 105°C. Short-Term to 160°C.

Application: AVC's smart multi-hole cable glands allow several cables water-tightly to be lead through in one gland simultaneously. From AVC's widest variety size choices, no need to use one gland for each wire, so the space of wire entry can be reduced to minimize costs & working time.

* Contact us for designing & ordering different sealing hole patterns with varying diameters & other extended gland sizes. (Sealing Inserts are not sold separately)
* AVC sealing inserts are available in split versions for mounting wires with pre-assembled terminals or connectors. (Minimum order quantity is required)
* The Washer (Gasket) and Lock Nut are all included in each cable gland, this saves additional ordering work and storage locations.

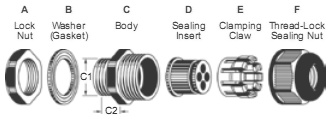

Seal
Holes
Thread Cat.No. Cable
Range
mmØ
Thread
O.D.
C1
mm
Panel
Mounting
Hole
mm
Thread
Length
C2
mm
Spanner
Size
A/F
mm
Std.
Pkg.
pcs
Sizes Black
RAL
9005
Light
Grey
RAL
7035
Silver
Grey
RAL
7001
4
Holes
Short
Thread
M16x1.5 MG16AS-H4-02 B G SG 2.3-1.3 16 16-16.3 10 22/19 50
MG16A-H4-02-ST B G SG 2.4-1.4 16 16-16.3 10 22/22 50
MG16A-H4-03-ST B G SG 3.4-2.4 16 16-16.3 10 22/22 50
M20x1.5 MG20AS-H4-02 B G SG 2.4-1.4 20 20-20.3 10 24/22 50
MG20AS-H4-03 B G SG 3.4-2.4 20 20-20.3 10 24/22 50
MG20AM-H4-04 B G SG 4.2-3 20 20-20.3 15 24/24 50
MG20A-H4-02-ST B G SG 2.5-1.6 20 20-20.3 10 27/27 50
MG20A-H4-03-ST B G SG 3.6-2.5 20 20~20.3 10 27/27 50
MG20A-H4-04-ST B G SG 4.8-3.4 20 20-20.3 10 27/27 50
M25x1.5 MG25AS-H4-02 B G SG 2.5-1.6 25 25-25.4 12 33/27 50
MG25AS-H4-03 B G SG 3.6-2.5 25 25-25.4 12 33/27 50
MG25AS-H4-04 B G SG 4.8-3.4 25 25-25.4 12 33/27 50
MG25A-H4-03-ST B G SG 3.1-2 25 25-25.4 10 33/33 50
MG25A-H4-04-ST B G SG 4.1-3 25 25-25.4 10 33/33 50
MG25A-H4-05-ST B G SG 5.2-3.8 25 25-25.4 10 33/33 50
MG25A-H4-07-ST B G SG 7.3-5.6 25 25-25.4 10 33/33 50
M32x1.5 MG32AS-H4-03 B G SG 3.1-2 32 32-32.4 12 41/33 10
MG32AS-H4-04 B G SG 4.1-3 32 32-32.4 12 41/33 10
MG32AS-H4-05 B G SG 5.2-3.8 32 32-32.4 12 41/33 10
MG32AS-H4-07 B G SG 7.3-5.6 32 32-32.4 12 41/33 10
MG32A-H4-09-ST B G SG 9-7 32 32-32.4 11 41/42 10
M40x1.5 MG40A-H4-12-ST B G SG 12-10 40 40-40.4 12 50/52 10

Long
Thread
M12x1.5 MG12A-H4-02 B G SG 2.3-1.3 12 12-12.3 9 18/19 50
M16x1.5 MG16A-H4-02 B G SG 2.4-1.4 16 16-16.3 15 22/22 50
MG16A-H4-03 B G SG 3.4-2.4 16 16-16.3 15 22/22 50
M20x1.5 MG20A-H4-02 B G SG 2.5-1.6 20 20-20.3 15 27/27 50
MG20A-H4-03 B G SG 3.6-2.5 20 20-20.3 15 27/27 50
MG20A-H4-04 B G SG 4.8-3.4 20 20-20.3 15 27/27 50
M25x1.5 MG25A-H4-03 B G SG 3.1-2 25 25-25.4 15 33/33 50
MG25A-H4-04 B G SG 4.1-3 25 25-25.4 15 33/33 50
MG25A-H4-05 B G SG 5.2-3.8 25 25-25.4 15 33/33 50
MG25A-H4-07 B G SG 7.3-5.6 25 25-25.4 15 33/33 50
M32x1.5 MG32A-H4-09 B G SG 9-7 32 32-32.4 15 41/42 10
M40x1.5 MG40A-H4-12 B G SG 12-10 40 40-40.4 20 50/52 10

PG7 PGA7-H4-02 B G SG 2.3-1.3 12.5 12.5-12.8 8.5 17/19 50
PG9 PGA9-H4-02 B G SG 2.3-1.3 15.2 15.2-15.5 9 22/19 50
PG11 PGA11-H4-02 B G SG 2.4-1.4 18.6 18.6-18.9 10 24/22 50
PGA11-H4-03 B G SG 3.4-2.4 18.6 18.6-18.9 10 24/22 50
PG13.5 PGA13.5-H4-04 B G SG 4.2-3 20.4 20.4-20.7 10 27/24 50
PG16 PGA16-H4-02 B G SG 2.5-1.6 22.5 22.5-22.8 11 30/27 50
PGA16-H4-03 B G SG 3.6-2.5 22.5 22.5-22.8 11 30/27 50
PGA16-H4-04 B G SG 4.8-3.4 22.5 22.5-22.8 11 30/27 50
PG21 PGA21-H4-03 B G SG 3.1-2 28.3 28.3-28.7 12.5 36/33 50
PGA21-H4-04 B G SG 4.1-3 28.3 28.3-28.7 12.5 36/33 50
PGA21-H4-05 B G SG 5.2-3.8 28.3 28.3-28.7 12.5 36/33 50
PGA21-H4-07 B G SG 7.3-5.6 28.3 28.3-28.7 12.5 36/33 50
PG29 PGA29-H4-09 B G SG 9-7 37 37-37.4 12 46/42 10
PG36 PGA36-H4-12 B G SG 12-10 47 47-47.4 15 57/52 10
