Battery Holders /

Battery Holders AAA (BH4xx)

Ordering Information:
S BH - 3 4 1 - 1 A
1 2   3 4 5   6 7

1 - S - Safety;
2 - BH: Battery Holder;
3 - Type of Battery:
     1 - D (Cylindrical d=34,2 mm, h=61,5 mm);
     2 - C (Cylindrical d=26,2 mm, h=50,0 mm);
     3 - AA (Cylindrical d=14,5 mm, h=50,5 mm);
     4 - AAA (Cylindrical d=10,5 mm, h=44,5 mm);
     5 - N (Cylindrical d=11,95 mm, h=29,35 mm);
     9V - (Rectangular Krona 26,5 x 17,5 x 48,5 mm)
4 - Number of batteries
5 - Series No.
6 - Number
7 - Termination:
     A - with lead wires 150mm;
     B - with 4prong or 6prong snap terminal;
     D - with tag (solder, lug) terminal;
     H - with housig;
     P - with pin (pc mounted);
     S - with switch;
     T - with terminal


(AAA x 1) BH411A
BH411D
BH411P
Battery Holders Battery Holders
(AAA x 1) BH411-1A
BH411-1D
BH411-1P
Battery Holders Battery Holders
(AAA x 1) BH411-2A
BH411-2D
BH411-2P
Battery Holders Battery Holders
(AAA x 2) BH421A
BH421B
BH421D
BH421P
Battery Holders Battery Holders
(AAA x 2) BH421-1A
BH421-1B
BH421-1D
BH421-1P
Battery Holders Battery Holders
(AAA x 2) BH421-3A
BH421-3B
BH421-3D
BH421-3P
Battery Holders Battery Holders
(AAA x 2) BH422A
BH422D
Battery Holders Battery Holders
(AAA x 2) BH425A
BH425D
BH425P
Battery Holders Battery Holders
(AAA x 3) BH431A
BH431B
BH431D
BH431P
Battery Holders Battery Holders
(AAA x 3) BH431-1A
BH431-1B
BH431-1D
BH431-1P
Battery Holders Battery Holders
(AAA x 4) BH441A
BH441B
BH441D
BH441P
Battery Holders Battery Holders
(AAA x 4) BH441-2A
BH441-2B
BH441-2D
BH441-2P
Battery Holders Battery Holders
(AAA x 4) BH443A
BH443B
BH443D
Battery Holders Battery Holders
(AAA x 4) BH443-1A
BH443-1B
BH443-1D
Battery Holders Battery Holders
(AAA x6) BH463A
BH463B
BH463D
Battery Holders Battery Holders
(AAA x8) BH482A
BH482B
BH482D
Battery Holders Battery Holders

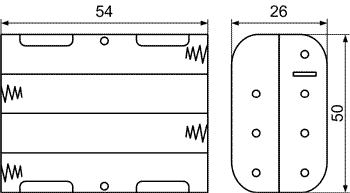

(AAA x8) BH483A
BH483B
BH483D
Battery Holders Battery Holders
(AAA x2) SBH-421-1A
SBH-421-1AS
Battery Holders Battery Holders
(AAA x2) SBH-421-2A Battery Holders Battery Holders
(AAA x3) SBH-431A
SBH-431B
SBH-431D
SBH-431P
Battery Holders Battery Holders
(AAA x3) SBH-431-1A
SBH-431-1AS
Battery Holders Battery Holders
(AAA x4) SBH-441A
SBH-441AS
Battery Holders Battery Holders



Dimensions

Cylindrical

Type Height
mm
Diameter
mm
AAAA 42,5 8,3
AAA 44,5 10,5
AA 50,5 14,5
C 50 26,2
D 61,5 34,2
N 29,35 11,95

Rectangular

Type Height
mm
Length x Width
mm
J 48,5 33,5 х 9,2
9B 48,5 26,5 х 17,5
