Battery Holders /

Safety Battery Holders (SBH-xx)

Ordering Information:
S BH - 3 4 1 - 1 A
1 2   3 4 5   6 7

1 - S - Safety;
2 - BH: Battery Holder;
3 - Type of Battery:
     1 - D (Cylindrical d=34,2 mm, h=61,5 mm);
     2 - C (Cylindrical d=26,2 mm, h=50,0 mm);
     3 - AA (Cylindrical d=14,5 mm, h=50,5 mm);
     4 - AAA (Cylindrical d=10,5 mm, h=44,5 mm);
     5 - N (Cylindrical d=11,95 mm, h=29,35 mm);
     9V - (Rectangular Krona 26,5 x 17,5 x 48,5 mm)
4 - Number of batteries
5 - Series No.
6 - Number
7 - Termination:
     A - with lead wires 150mm;
     B - with 4prong or 6prong snap terminal;
     D - with tag (solder, lug) terminal;
     H - with housig;
     P - with pin (pc mounted);
     S - with switch;
     T - with terminal


(C x2) SBH-221A
SBH-221AS
Safety Battery Holders Safety Battery Holders
(AA x2) SBH-321A Safety Battery Holders Safety Battery Holders
(AA x2) SBH-321-1A
SBH-321-1AS
Safety Battery Holders Safety Battery Holders
(AA x2) SBH-321-2A Safety Battery Holders Safety Battery Holders
(AA x2) SBH-321-3A
SBH-321-3AS
Safety Battery Holders Safety Battery Holders
(AA x3) SBH-331A
SBH-331AS
Safety Battery Holders Safety Battery Holders
(AA x3) SBH-331-1A
SBH-331-1AS
Safety Battery Holders Safety Battery Holders
(AA x3) SBH-331-2A
SBH-331-2AS
Safety Battery Holders Safety Battery Holders

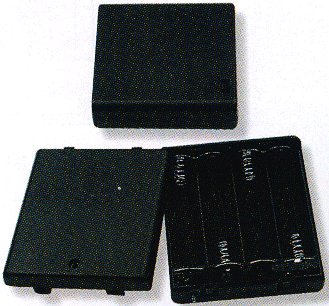

(AA x4) SBH-341A
SBH-341AS
Safety Battery Holders Safety Battery Holders
(AA x4) SBH-341-1A
SBH-341-1AS
Safety Battery Holders Safety Battery Holders
(AA x3) SBH-341-2A
SBH-341-2AS
Safety Battery Holders Safety Battery Holders
(AA x6) SBH-361A
SBH-361D
Safety Battery Holders Safety Battery Holders
(AAA x2) SBH-421-1A
SBH-421-1AS
Safety Battery Holders Safety Battery Holders
(AAA x2) SBH-421-2A Safety Battery Holders Safety Battery Holders
(AAA x3) SBH-431A
SBH-431B
SBH-431D
SBH-431P
Safety Battery Holders Safety Battery Holders
(AAA x3) SBH-431-1A
SBH-431-1AS
Safety Battery Holders Safety Battery Holders
(AAA x4) SBH-441A
SBH-441AS
Safety Battery Holders Safety Battery Holders
(9V) SBH-9VA
SBH-9VAS
SBH-9VP
Safety Battery Holders Safety Battery Holders



Dimensions

Cylindrical

Type Height
mm
Diameter
mm
AAAA 42,5 8,3
AAA 44,5 10,5
AA 50,5 14,5
C 50 26,2
D 61,5 34,2
N 29,35 11,95

Rectangular

Type Height
mm
Length x Width
mm
J 48,5 33,5 х 9,2
9B 48,5 26,5 х 17,5
