Battery Holders /

Battery Holders N (BH5xx)

Ordering Information:
S BH - 3 4 1 - 1 A
1 2   3 4 5   6 7

1 - S - Safety;
2 - BH: Battery Holder;
3 - Type of Battery:
     1 - D (Cylindrical d=34,2 mm, h=61,5 mm);
     2 - C (Cylindrical d=26,2 mm, h=50,0 mm);
     3 - AA (Cylindrical d=14,5 mm, h=50,5 mm);
     4 - AAA (Cylindrical d=10,5 mm, h=44,5 mm);
     5 - N (Cylindrical d=11,95 mm, h=29,35 mm);
     9V - (Rectangular Krona 26,5 x 17,5 x 48,5 mm)
4 - Number of batteries
5 - Series No.
6 - Number
7 - Termination:
     A - with lead wires 150mm;
     B - with 4prong or 6prong snap terminal;
     D - with tag (solder, lug) terminal;
     H - with housig;
     P - with pin (pc mounted);
     S - with switch;
     T - with terminal


(N x1) BH511A
BH511D
BH511P
Battery Holders Battery Holders
(N x1) BH511-1A
BH511-1D
BH511-1P
Battery Holders Battery Holders

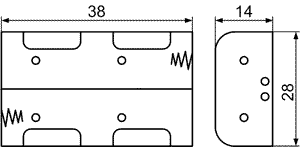

(N x2) BH521A
BH521D
BH521P
Battery Holders Battery Holders
(N x2) BH522A
BH522D
Battery Holders Battery Holders
(N x4) BH543A
BH543D
Battery Holders Battery Holders



Dimensions

Cylindrical

Type Height
mm
Diameter
mm
AAAA 42,5 8,3
AAA 44,5 10,5
AA 50,5 14,5
C 50 26,2
D 61,5 34,2
N 29,35 11,95

Rectangular

Type Height
mm
Length x Width
mm
J 48,5 33,5 х 9,2
9B 48,5 26,5 х 17,5
