LCD Module / IPS TFT LCD module /

KD043FM-1

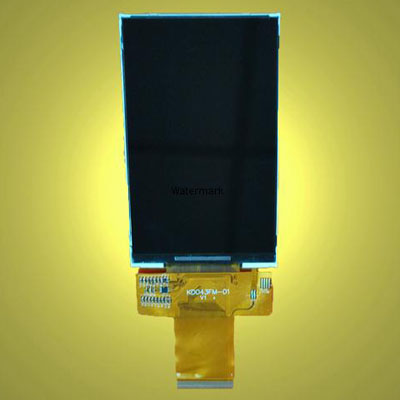

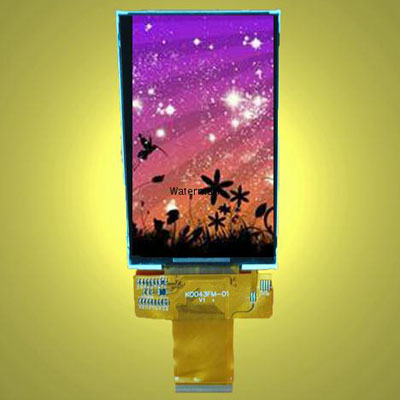

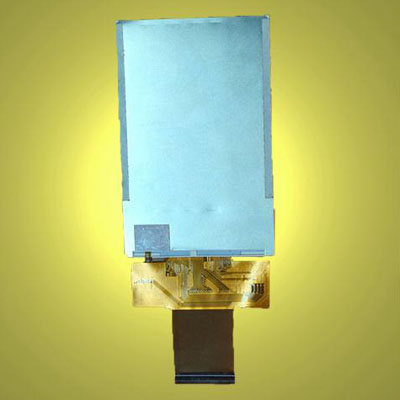

4.3 inch, HX8369A, 480*800, support MCU/RGB interface, IPS LCD module Brief: 480*800 HX8369A OLED effect, sunlight readable MCU/RGB interface Detailed LCD name: 4.3 inch, HX8369A, 480*800, support MCU/RGB interface, IPS LCD module Display type: TFT Display mode: transmissive Resolution (pixels): 480*800 dots Overall size: 104.25*61.06 mm Viewing area: 95.2*57.76 mm Active Area: 93.6*56.16 mm Driver: HX8369A Interface type:    8-bit MCU parallel interface    9-bit MCU parallel interface    16-bit MCU parallel interface    18-bit MCU parallel interface    6-bit/16-bit/18 bit RGB interface Interface Connector: Connection type Backlight: 8 LEDS in serialo Viewing direction: All Operating temperature range: -20...+70°C Storage temperature range: -30...+80°C
