LCD Module / Large size TFT LCD module /

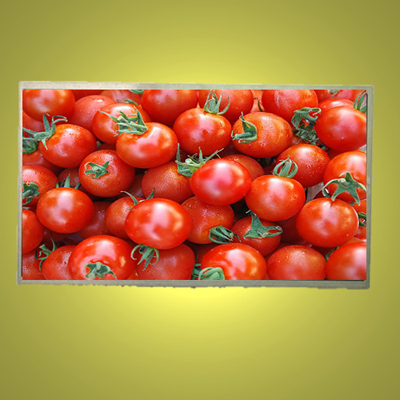

KD121C-1

12.1 inch, one channel LVDS interface Landscape TFT LCD Brief: one channel LVDS interface 400nits brightness 1366*RGB*768 dots in 12.1inch TFT lcd module Detailed: LCD name: 12.1 inch, one channel LVDS interface Landscape TFT LCD Display type: TFT Display mode: transmissive Resolution (pixels): 1366*RGB*768 dots,XVGA Overall size: 279*167.2*5.1 mm Viewing area: 271.01*153.48 mm Active Area: 268.01*150.68 mm Interface type: one channel LVDS interface Interface Connector: connecting type Backlight type and color: LED backlight/white Viewing direction: 12:00 Operating temperature range: -10...+60°C Storage temperature range: -20...70°C
